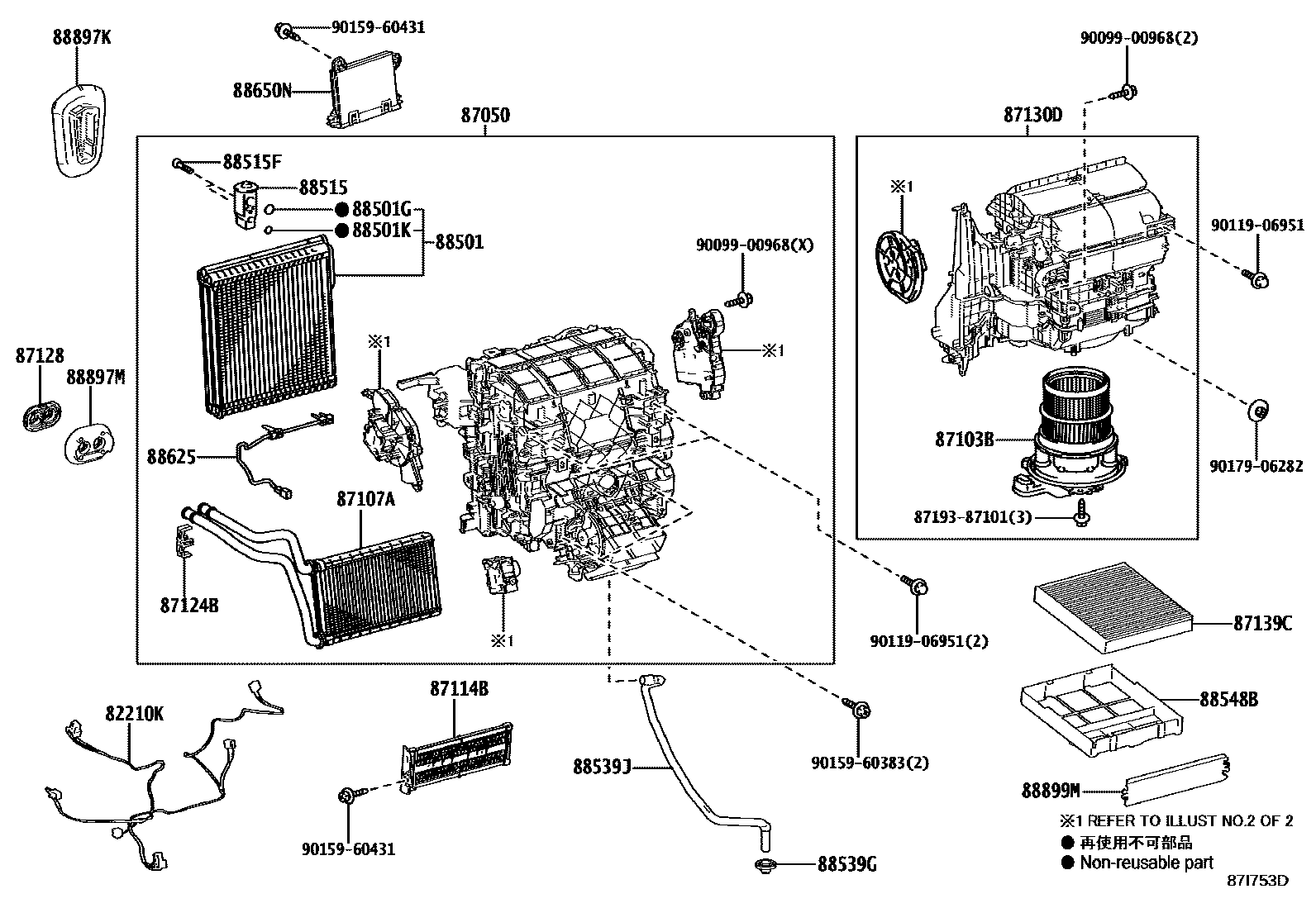

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1DAMPER SERVO 0004 1DAMPER SERVO

82210KHARNESS ASSY, AIR CONDITIONER

main82212-12070iKMA10..RHD202011

main82212-76010iKMA10..LHD202004

87050RADIATOR ASSY, AIR CONDITIONER

main87050-12B50iKMA10..RHD..EUR202011

main87050-76240iKMA10..RHD..(ARL,GEN)202011-202208

main87050-76241iKMA10..RHD..(ARL,GEN)202209

main87050-76250iKMA10..LHD..EUR202008

main87050-76260iKMA10..LHD..(CHI,GEN)202004

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-42120iKMA10..LHD202108

main87103-42130iKMA10..RHD..EUR202108

main87103-58070iKMA10..RHD..(ARL,GEN)202209

main87103-58080iKMA10..LHD202004-202108

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-47070iKMA10..RHD202011

main87107-47080iKMA10..LHD202004

87114BCOVER, HEATER

main87114-47020iKMA10202004

87124BCLAMP, HEATER

main87124-33070iKMA10202004

87128GROMMET, HEATER

main87128-28010iKMA10202004

87130DBLOWER ASSY

main87130-42470iKMA10..LHD202108

main87130-42480iKMA10..RHD..(ARL,GEN)202108-202209

main87130-47290iKMA10..LHD202004-202108

main87130-47300iKMA10..RHD..(ARL,GEN)202209

87139CFILTER, CLEAN AIR

main87139-76020iKMA10202004

DEODORANT FILTER

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-47090iKMA10..RHD..(ARL,GEN)202004-202209

main88501-47100iKMA10..EUR202008

88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)

main90099-14121iKMA10202004

ID=13.4,OD=18.2

88501KO-RING, COOLER EVAPORATOR NO.1(LIQUID)

main90099-14120iKMA10202004

ID=10.8,OD=15.6

88515VALVE, COOLER EXPANSION

main88515-30800iKMA10..RHD..(ARL,GEN)202004-202209

main88515-50320iKMA10..EUR202008

88515FBOLT(FOR COOLER EXPANSION VALVE)

main90099-04542×2iKMA10202004

88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)

main90480-26030iKMA10202004

88539JHOSE, DRAIN COOLER

main88539-76010iKMA10..LHD202004

main88539-76020iKMA10..RHD202011

88548BCASE, AIR FILTER

main88899-76020iKMA10202004

88625THERMISTOR, COOLER, NO.1

main88620-28060iKMA10..RHD..(ARL,GEN)202004-202209

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-76630iKMA10..CHI202004-202103

main88650-76730iKMA10..EUR,GEN202008-202108

main88650-76760iKMA10202108-202211

88897KGROMMET, (FOR COOLER PIPE)

main88899-47070iKMA10202004

88897MGROMMET (FOR HEATER PIPE)

main87128-28020iKMA10202004

88899MPLATE, COVER(FOR AIR FILTER)

main88899-47120iKMA10202004

8719387101

main87193-87101

9009900968

main90099-00968

9011906951

main90119-06951

9015960383

main90159-60383

9015960431

main90159-60431

9017906282

main90179-06282

28 parts on this diagram · 4 diagrams in section
