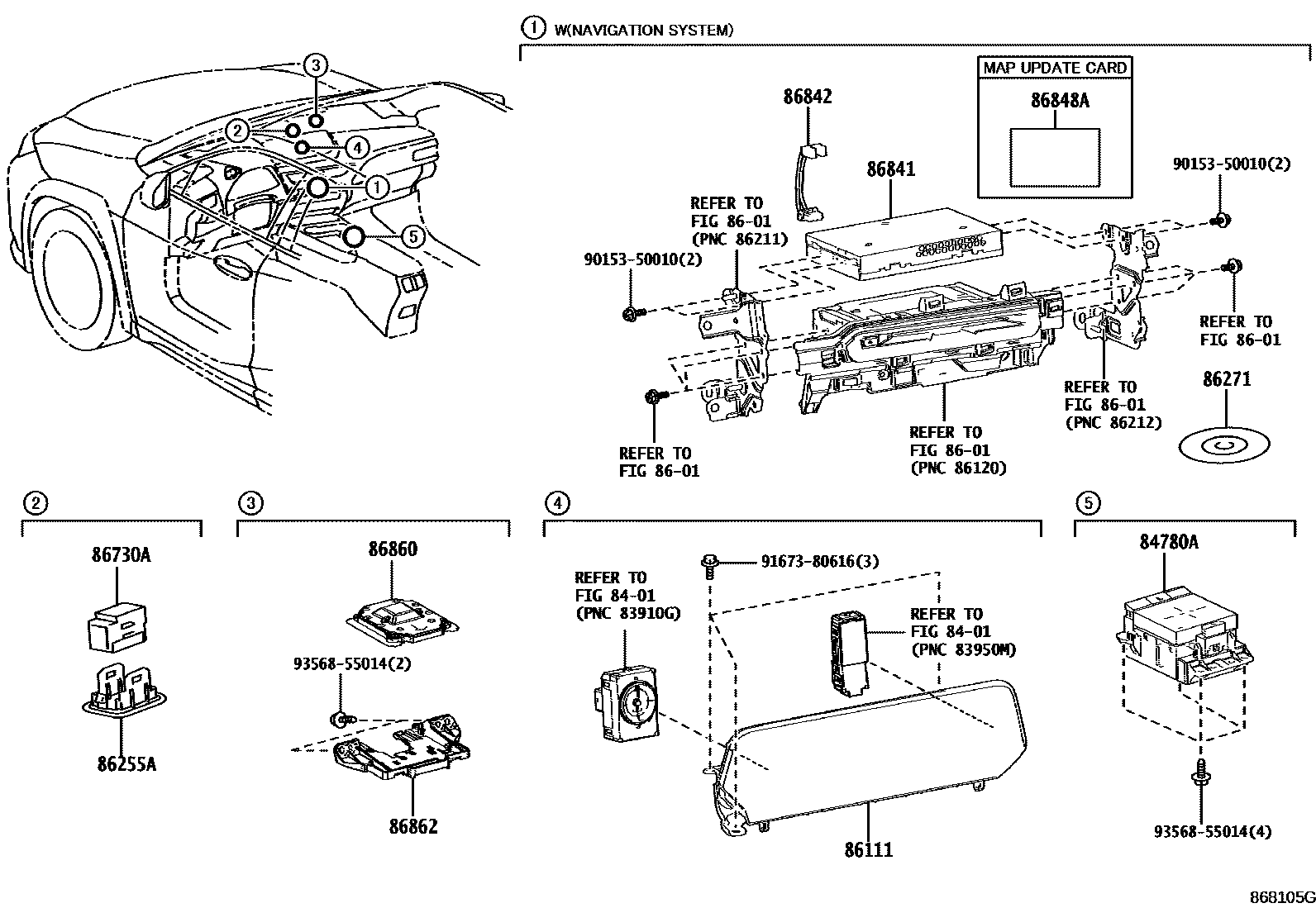

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1

8401

84780ACONTROLLER ASSY, REMOTE OPERATION

main84780-76171iKMA10..CHI¥27,300202108

PREMIUM PACKAGE&AUDIO-EMV & 13SPEAKER

main84780-76171iKMA10..ARL¥27,300202108

LUXURY PACKAGE&AUDIO-EMV & 13SPEAKER

main84780-76180iKMA10202004-202108

main84780-76181iKMA10..CHI,EUR,GEN202108

8601

86111MULTI-DISPLAY

main86111-76100iKMA10..LHD..EUR202008

PANASONIC

main86111-76110iKMA10..RHD..EUR202011

PANASONIC

main86111-76120iKMA10..LHD..(CHI,GEN)202004

PANASONIC

main86111-76130iKMA10..RHD..GEN202011

PANASONIC

main86111-76180iKMA10..ARL¥106,000202108

DENSO

86255ACASE, MICROPHONE, NO.1

main86255-78010-A1iKMA10..CHI,EUR,GEN202004

WHITE,TRIM0#,11,4#,8#

main86255-78010-A1iKMA10..ARL202108

WHITE,TRIM0#,4#,8#

main86255-78010-C1iKMA10..CHI,EUR,GEN202004

BLACK,TRIM10,2#

main86255-78010-C1iKMA10..ARL202108

BLACK,TRIM1#,2#

86271DISC, DISC PLAYER

main86807-11043iKMA10..ARL202108-202211

sub86807-11044

86730AMICROPHONE ASSY, TELEPHONE

main86730-11010iKMA10¥7,100202004-202103

sub86730-48110¥6,400

main86730-48110iKMA10¥6,400202104

86841COMPUTER, NAVIGATION

main86840-48222iKMA10..ARL202108-202109

sub86840-48224

main86840-48223iKMA10..ARL202110-202211

sub86840-48224

86842WIRE, NAVIGATION, NO.1

main86842-76320iKMA10..ARL¥2,610202108

86848ACARD, SERIAL NUMBER MAP UPDATE

main86848-33040iKMA10..ARL¥12,100202108

86860ANTENNA ASSY, NAVIGATION

main86860-78010iKMA10..ARL,GEN¥8,500202011

main86880-52020iKMA10..CHI,EUR¥8,500202004

86862BRACKET, NAVIGATION ANTENNA

main86862-42010iKMA10¥940202110

main86862-58020iKMA10¥940202004-202109

9015350010

main90153-50010¥70

9167380616

main91673-80616¥60

9356855014

main93568-55014¥70

15 parts on this diagram · 2 diagrams in section
