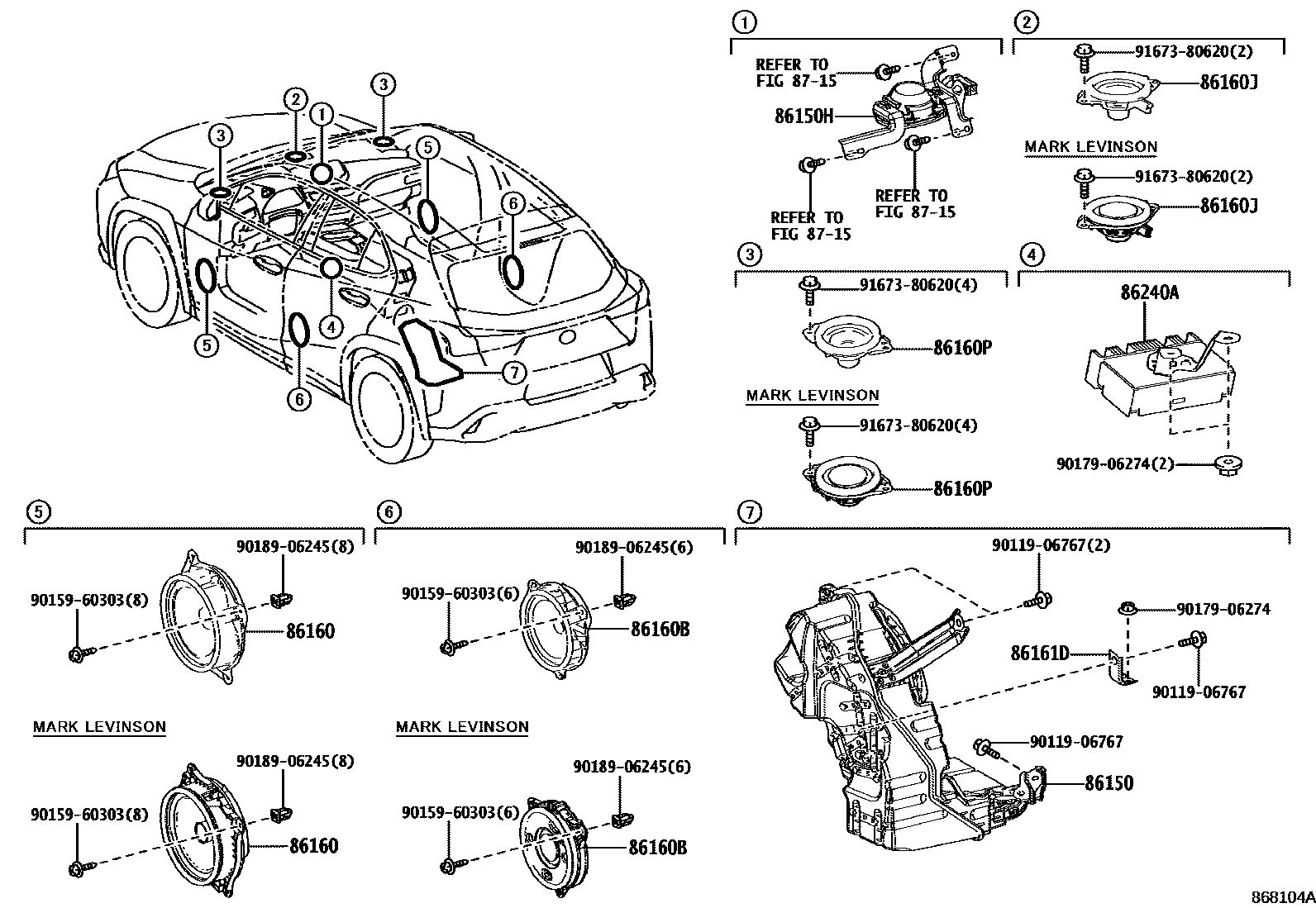

SPEAKER

0001 1 0002 1

86150SPEAKER ASSY, W/BOX, NO.1

main86150-0W410iKMA10..ARL202108

86150HSPEAKER ASSY, W/BRACKET

main86150-76060iKMA10..LHD202004

main86150-76070iKMA10..RHD202011

86160SPEAKER ASSY, FRONT NO.1

main86160-0WS30×2iKMA10..ARL202108

main86160-76130×2iKMA10..CHI,EUR,GEN202004

86160BSPEAKER ASSY, REAR

main86150-0W640×2iKMA10..ARL202108

main86160-76140×2iKMA10..CHI,EUR,GEN202004

86160JSPEAKER ASSY, FRONT NO.3

main86160-78090iKMA10..ARL202108

main86160-0WS20iKMA10..CHI202004-202102

AUDIO-*DA & 13SPEAKER

86160PSPEAKER ASSY, FRONT NO.2

main86160-76120×2iKMA10..CHI,EUR,GEN202004

main86160-78090×2iKMA10..ARL202108

main86160-0WS20×2iKMA10..CHI202004-202102

AUDIO-*DA & 13SPEAKER

86161DBRACKET, SPEAKER MOUNTING, NO.1

main86161-76030iKMA10..ARL202108

86240AEQUALIZER ASSY,STEREO COMPONENT

main86240-76090iKMA10..CHI,EUR202004-202107

main86240-76091iKMA10..LHD202108

main86240-76100iKMA10..ARL202108

HONG KONG SPEC

8715

9011906767

main90119-06767

9015960303

main90159-60303

9017906274

main90179-06274

9018906245

main90189-06245

9167380620

main91673-80620

14 parts on this diagram · 2 diagrams in section
