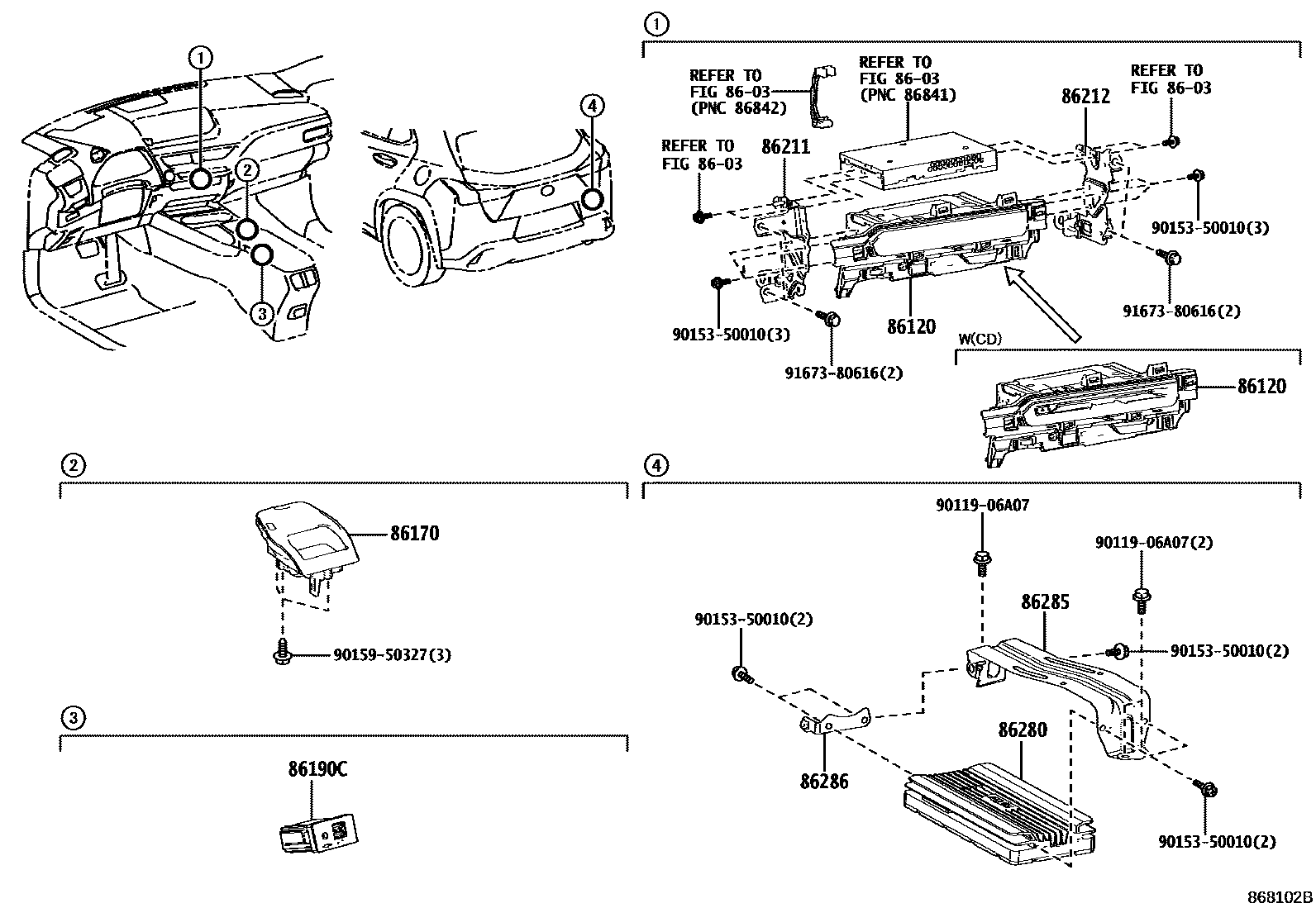

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1RECEIVER & AMPLIFIER 0002 1RECEIVER & AMPLIFIRE 0003 1CONDENSER

8603

86120RECEIVER ASSY, RADIO

main86120-76320iKMA10..ARL202108

PIONEER

main86140-76400iKMA10..LHD..GEN202108

PIONEER

main86140-76D70iKMA10..CHI202004

PIONEER

main86140-76E20iKMA10..EUR202008-202010

PIONEER

sub86140-76E21

main86140-76E21iKMA10..LHD..EUR202011-202108

PIONEER

86170SWITCH AND VOLUME ASSY, RADIO

main86170-76020iKMA10..RHD202011

main86170-76030iKMA10..LHD202004

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-24030iKMA10202004

86211BRACKET, RADIO, NO.1

main86211-76140iKMA10..LHD202004

main86211-76160iKMA10..RHD202011

86212BRACKET, RADIO, NO.2

main86212-76150iKMA10..LHD202004

main86212-76170iKMA10..RHD202011

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-0WG11iKMA10..ARL202108

86285BRACKET, AMPLIFIER, NO.1

main86285-76040iKMA10..ARL202108

86286BRACKET, AMPLIFIER, NO.2

main86286-76030iKMA10..ARL202108

9011906A07

main90119-06A07

9015350010

main90153-50010

9015950327

main90159-50327

9167380616

main91673-80616

13 parts on this diagram · 3 diagrams in section
