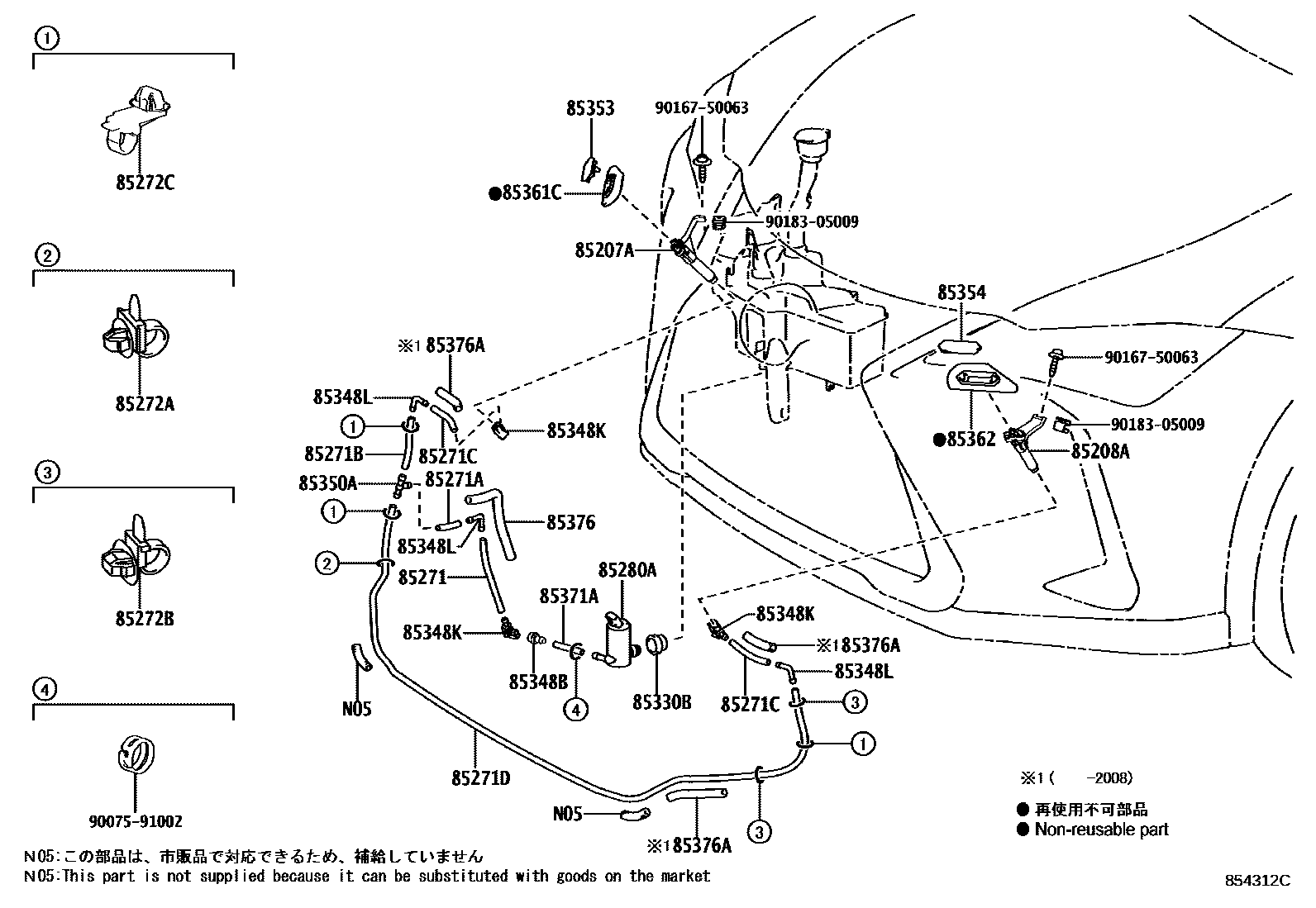

HEADLAMP CLEANER
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
85271HOSE, HEADLAMP CLEANER, NO.1
L=180
85271AHOSE, HEADLAMP CLEANER, NO.2
L=65
85271BHOSE, HEADLAMP CLEANER, NO.3
L=100
85271CHOSE, HEADLAMP CLEANER, NO.4
L=140
85271DHOSE, HEADLAMP CLEANER, NO.5
L=1780
85272ACLAMP, HEADLAMP CLEANER, NO.1
85272BCLAMP, HEADLAMP CLEANER, NO.2
85272CCLAMP, HEADLAMP CLEANER, NO.3
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
85330BBUSH, HEADLAMP CLEANER WASHER JAR
HEADLAMP CLEANER-WITH
85348BJOINT, HEADLAMP CLEANER HOSE, NO.2
HEADLAMP CLEANER-WITH
85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1
85348LJOINT, HEADLAMP CLEANER ELBOW, NO.2
85350AJOINT, HEADLAMP CLEANER ELBOW, NO.3
85353COVER, HEADLAMP WASHER, RH
SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
SONIC TITANIUM,1J7
SONIC CHROME,1L1
HEADLAMP CLEANER-WITH,SONIC CHROME,1L1
BLACK,212
GRAPHITE BLACK GF.,223
MADDER RED,3T2
AMBER CS.,4X2
BLAZING CARNELIAN CONTRAS,4Y1
TERRANE KHAKI M.M.,6X4
CELESTIAL BLUE GF.,8Y6
85354COVER, HEADLAMP WASHER, LH
SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
SONIC TITANIUM,1J7
SONIC CHROME,1L1
HEADLAMP CLEANER-WITH,SONIC CHROME,1L1
BLACK,212
GRAPHITE BLACK GF.,223
MADDER RED,3T2
AMBER CS.,4X2
BLAZING CARNELIAN CONTRAS,4Y1
TERRANE KHAKI M.M.,6X4
CELESTIAL BLUE GF.,8Y6
85361CBRACKET, WASHER
85362BRACKET, WASHER, NO.2
85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)
L=35,HEADLAMP CLEANER-WITH
L=35
85376PROTECTOR, HEADLAMP CLEANER HOSE, NO.1
85376APROTECTOR, HEADLAMP CLEANER HOSE, NO.2
9007591002
main90075-91002
9016750063
main90167-50063
9018305009
main90183-05009
26 parts on this diagram · 1 diagram in section
