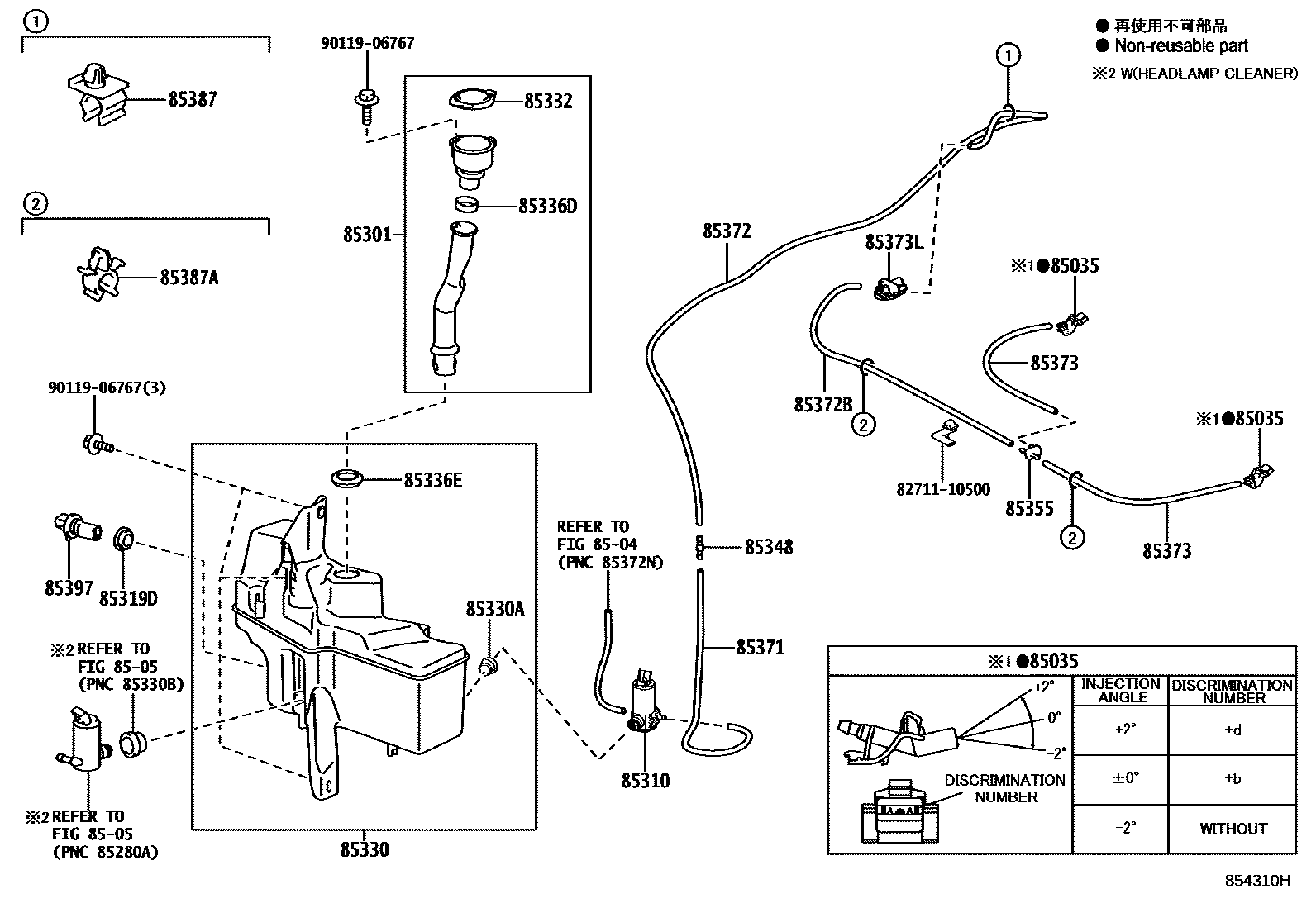

WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-30220iKMA10202004

ANGLE 0

sub85381-0K070

main85381-30230iKMA10202004

ANGLE -2

sub85381-0K080

main85381-30240iKMA10202004

ANGLE +2

8504

8505

85301INLET SUB-ASSY, WASHER

main85319-76110iKMA10202004-202102

main85319-76111iKMA10202102

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-47100iKMA10202004

85319DPACKING, FRONT WASHER

main85319-33230iKMA10202004

85330JAR ASSY, WINDSHIELD WASHER

main85355-76050iKMA10..ARL;KMA10..LHD..GEN202008-202012

main85355-76050iKMA10..CHI202102

HEADLAMP CLEANER-WITH

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iKMA10..EUR,GEN202004-202012

85332CAP, WINDSHIELD WASHER JAR

main85316-76110iKMA10202004-202102

main85316-76111iKMA10202102

85336DPACKING, WINDSHIELD WASHER JAR

main85336-42320iKMA10202004

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-30160iKMA10..EUR,GEN202004-202012

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iKMA10202004

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020iKMA10202004

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080iKMA10..CHI202004

L=1450(*H,L=490),HEADLAMP CLEANER-WITH

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iKMA10202004

L=1450(*H,L=1300)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080iKMA10202004

L=1450(*H,L=700)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iKMA10202004

L=1450(*H,L=360)

85373LGROMMET, WASHER

main85373-12050iKMA10202004

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85371-32020iKMA10202004

85387ACLAMP, WASHER, NO.2

main90469-07011iKMA10202004

85397SWITCH ASSY,LEVEL WARNING

main85397-30400iKMA10202004

8271110500WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-10500

9011906767

main90119-06767

23 parts on this diagram · 1 diagram in section
