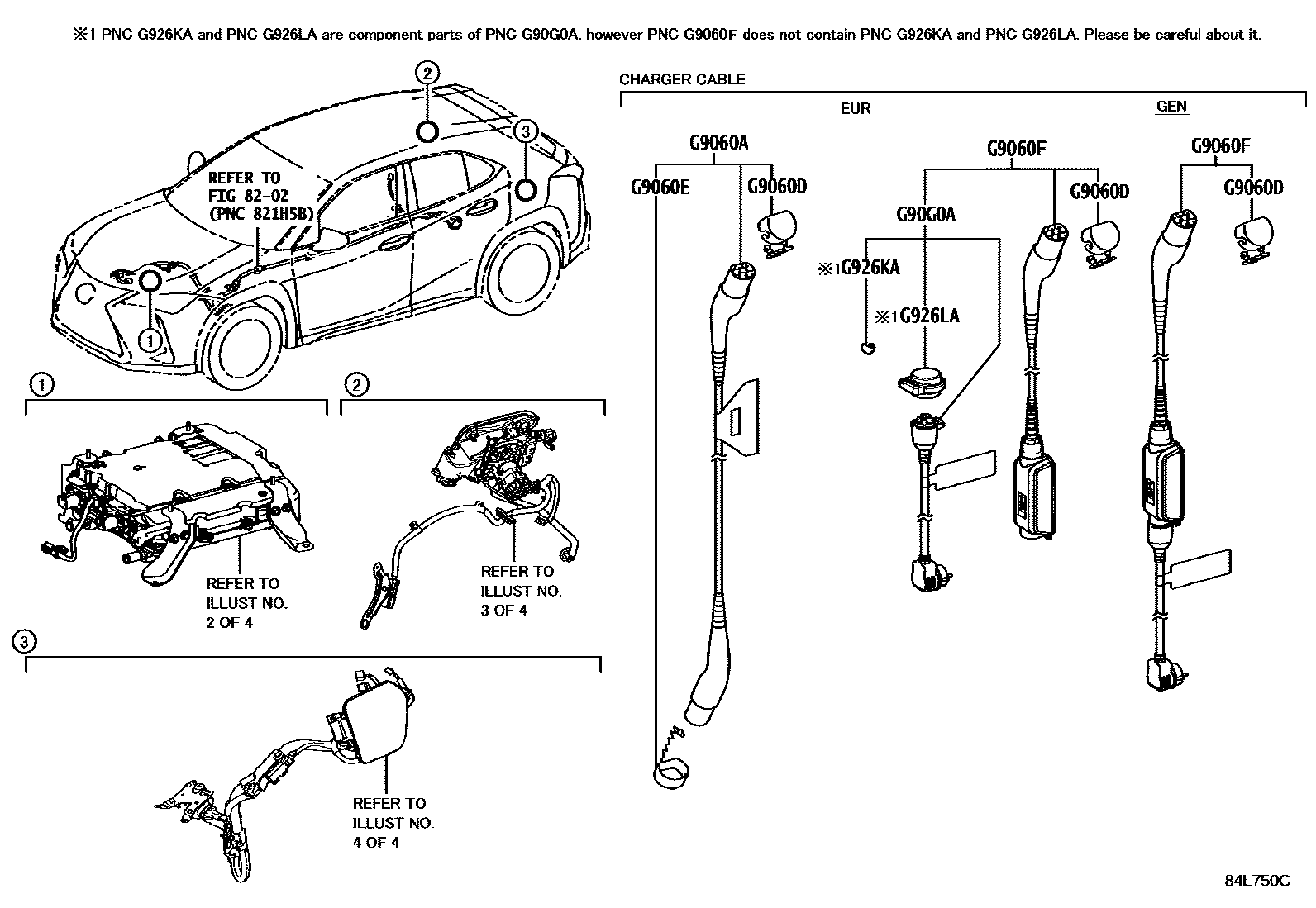

DC/DC CONVERTER & CHARGER(BEV OR FCEV)

0001 1 0002 1 0003 1EV CHARGER 0004 1AC CHARGER LID(RH SIDE) 0005 1DC CHARGER LID(LH SIDE)

8202

G9060ACABLE ASSY, ELECTRIC VEHICLE CHARGER

G9060DCOVER, EV CHARGER CABLE

G9060ECOVER, EV CHARGER CABLE, NO.2

G9060FCABLE ASSY, ELECTRIC VEHICLE CHARGER

G90G0APLUG ASSY, CABLE EV CHARGER

G926KAKEY, PLUG CABLE EV CHARGER

G926LACOVER, PLUG CABLE EV CHARGER

8 parts on this diagram · 5 diagrams in section
