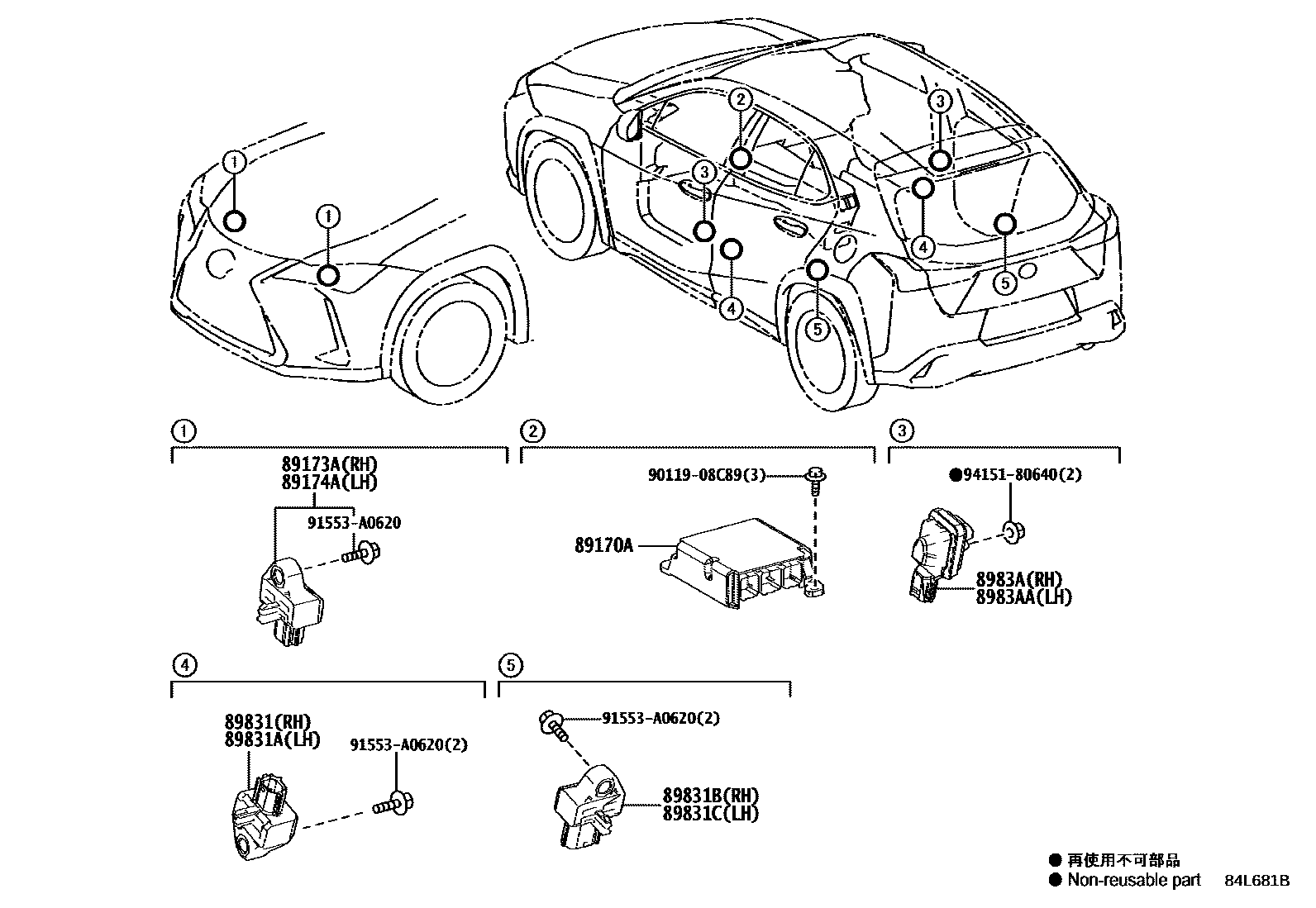

AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-76500iKMA10..CHI202009

main89170-76510iKMA10202004-202008

main89170-76520iKMA10..LHD..EUR202008

main89170-76540iKMA10..RHD..(ARL,GEN)202011

main89170-76570iKMA10..RHD..EUR202011

main89170-76730iKMA10..LHD..GEN202108

89173ASENSOR, AIRBAG, FRONT RH

main89173-49495iKMA10202004

89174ASENSOR, AIRBAG, FRONT LH

main89173-49495iKMA10202004

89831SENSOR, SIDE AIRBAG, RH, NO.1

main89831-47050iKMA10202004

89831ASENSOR, SIDE AIRBAG, LH, NO.1

main89831-47050iKMA10202004

89831BSENSOR, SIDE AIRBAG, RH, NO.2

main89831-28040iKMA10202004

89831CSENSOR, SIDE AIRBAG, LH, NO.2

main89831-28040iKMA10202004

8983ASENSOR, SIDE AIRBAG PRESSURE, RH

main8983A-33010iKMA10202004-202012

sub8983A-33011

main8983A-33011iKMA10202101

8983AASENSOR, SIDE AIRBAG PRESSURE, LH

main8983A-33010iKMA10202004-202012

sub8983A-33011

main8983A-33011iKMA10202101

9011908C89

main90119-08C89

91553A0620

main91553-A0620

9415180640

main94151-80640

12 parts on this diagram · 1 diagram in section
