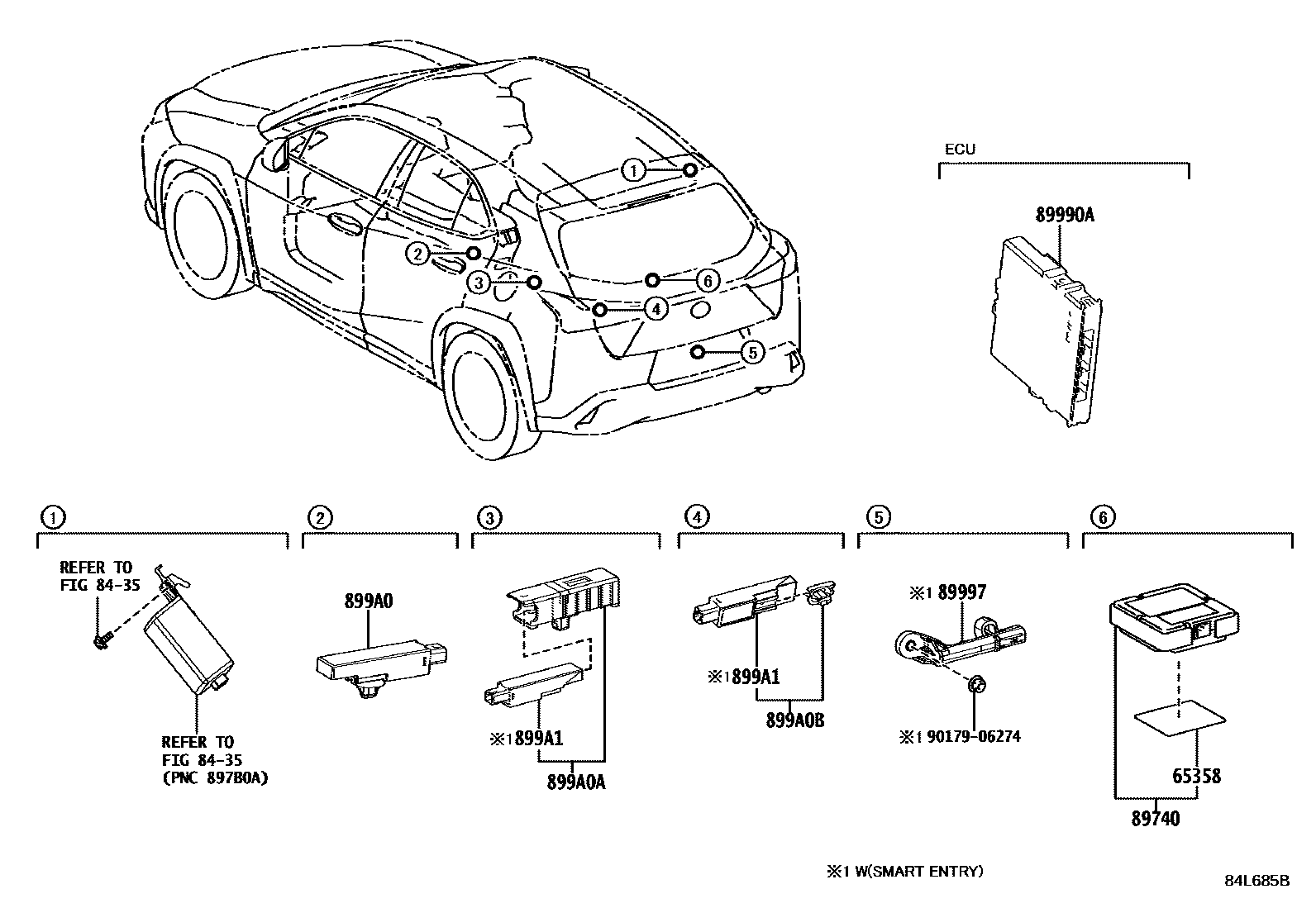

WIRELESS DOOR LOCK

65358TAPE, FLOOR BOARD COVER

main65358-76010×2i202004

KEY PLATE-ELECTRICAL KEY(2) & SMART KEY BOX

8435

89740COMPUTER ASSY, DOOR CONTROL W/RECEIVER

KEY PLATE-ELECTRICAL KEY(2) & SMART KEY BOX

89990ACOMPUTER ASSY, SMART KEY

main899H0-76170i202004-202108

main899H0-76180i202008-202108

LUXURY PACKAGE&HANDS FREE POWER BACK DOOR-WITH

main899H0-76200supersedes 899H0-76370i202011-202107

LUXURY PACKAGE&HANDS FREE POWER BACK DOOR-WITH

INDONESIA SPEC

INDONESIA SPEC&LUXURY PACKAGE&HANDS FREE POWER BACK DOOR- WITHOUT(W(POWER BACK DOOR))

SMART ENTRY-WITH

main899H0-76550supersedes 899H0-76540i202108-202207

LUXURY PACKAGE&HANDS FREE POWER BACK DOOR-WITH

main899H0-76551supersedes 899H0-76541i202208

LUXURY PACKAGE&HANDS FREE POWER BACK DOOR-WITH

89997ANTENNA, ELECTRICAL KEY

LUXURY PACKAGE&SMART ENTRY-WITH(POWER BACK DOOR)&HANDS FREE POWER BACK DOOR- WITHOUT(W(POWER BACK DOOR))

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

899A1ANTENNA, INDOOR ELECTRICAL KEY

main899A1-60010×2i202008

9017906274

10 parts on this diagram · 2 diagrams in section
