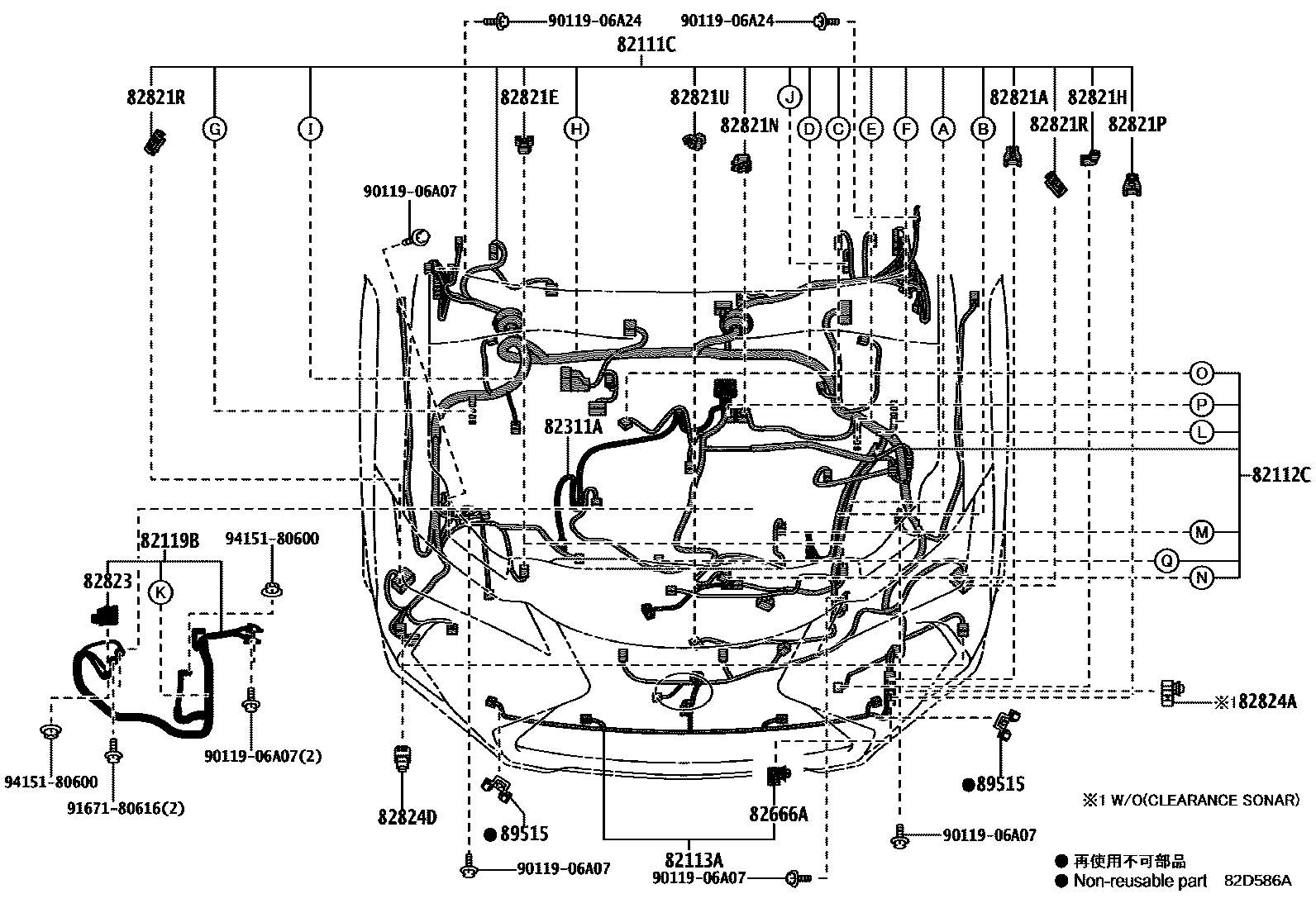

WIRING & CLAMP
82111CWIRE, FRONT COMPARTMENT, MAIN
82112CWIRE, FROMT COMPARTMENT, NO.2
82113AWIRE, FRONT COMPARTMENT, NO.3
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(*PVM)
ISRAEL SPEC&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)&BACK MONITOR-WITH(GUIDE)
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)&BACK MONITOR-WITH(GUIDE)
LUXURY PACKAGE&AUDIO-EMV & 13SPEAKER&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)
82119BWIRE, FRONT COMPARTMENT, NO.5
82311AWIRE, AIR CONDITIONER
82666AHOLDER, CONNECTOR NO.2
82821ACOVER, CONNECTOR
82821ECOVER, CONNECTOR
82821HCOVER, CONNECTOR
82821NCOVER, CONNECTOR
82821PCOVER, CONNECTOR
82821RCOVER, CONNECTOR
82821UCOVER, CONNECTOR
82823CAP, TERMINAL, NO.1
82824ACONNECTOR, WIRING HARNESS
82824DCONNECTOR, WIRING HARNESS
89515CLIP
9011906A07
main90119-06A07
9011906A24
main90119-06A24
9167180616
main91671-80616
9415180600
main94151-80600
21 parts on this diagram · 16 diagrams in section
