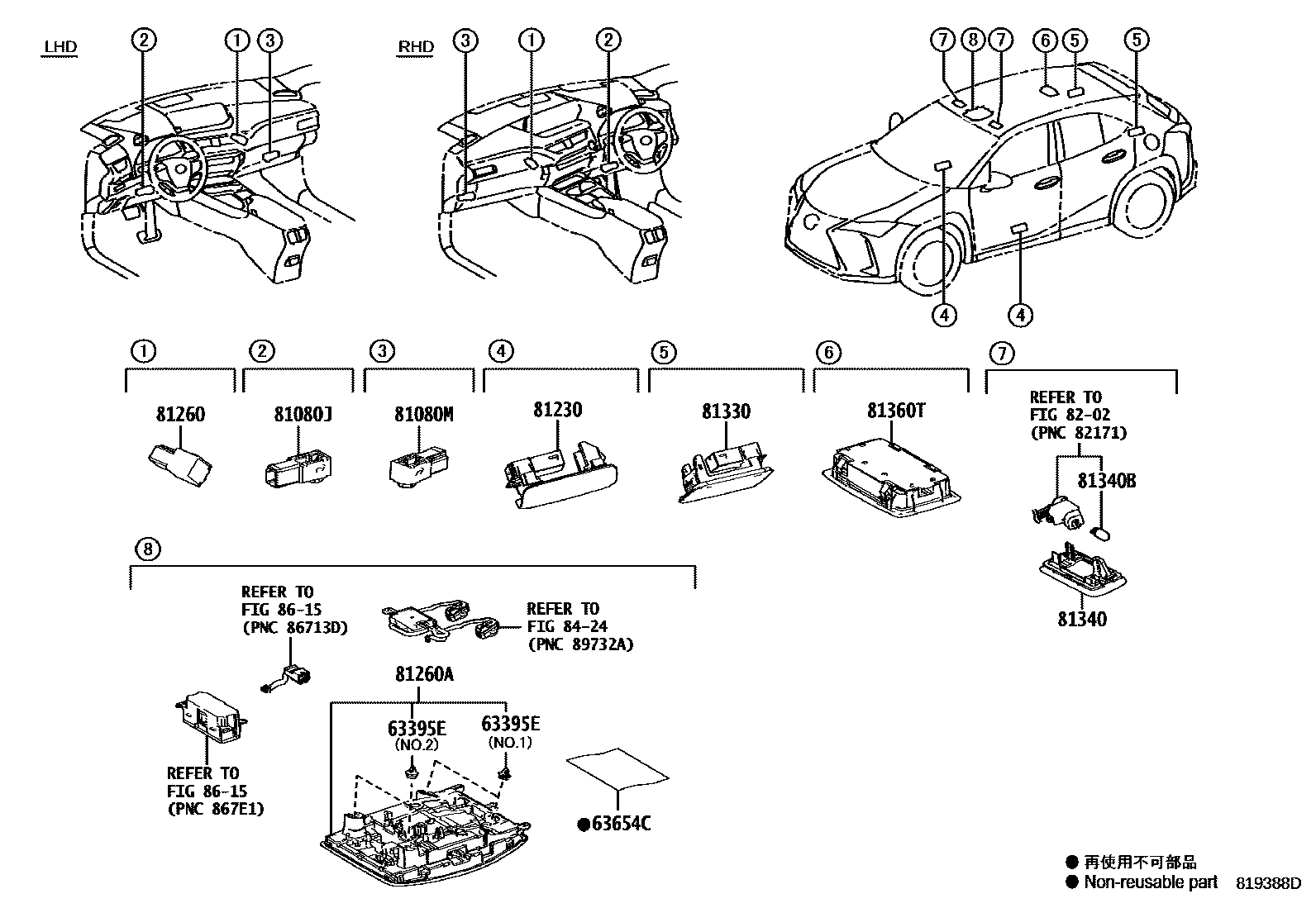

INTERIOR LAMP
63395ECLIP(FOR MAP LAMP)
NO.1
NO.1
NO.2
63654CCOVER, ROOF CONSOLE BOX, INNER
81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080MLAMP ASSY, INTERIOR ILLUMINATION, NO.1
81230LAMP ASSY, COURTESY
81260LAMP ASSY, GLOVE BOX
81260ALAMP ASSY, MAP
WHITE,TRIM0#,4#,8#
BLACK,TRIM1#,2#
WHITE,TRIM0#,4#,8#
BLACK,TRIM1#,2#
WHITE,TRIM0#,4#,8#
BLACK,TRIM1#,2#
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81340LAMP ASSY, VANITY
81340BBULB (FOR VANITY LAMP)
12V 8W
81360TLAMP ASSY, SPOT
WHITE,TRIM0#,11,4#,8#
WHITE,TRIM0#,4#,8#
BLACK,TRIM10,2#
BLACK,TRIM1#,2#
8202
8424
8615
14 parts on this diagram · 1 diagram in section
