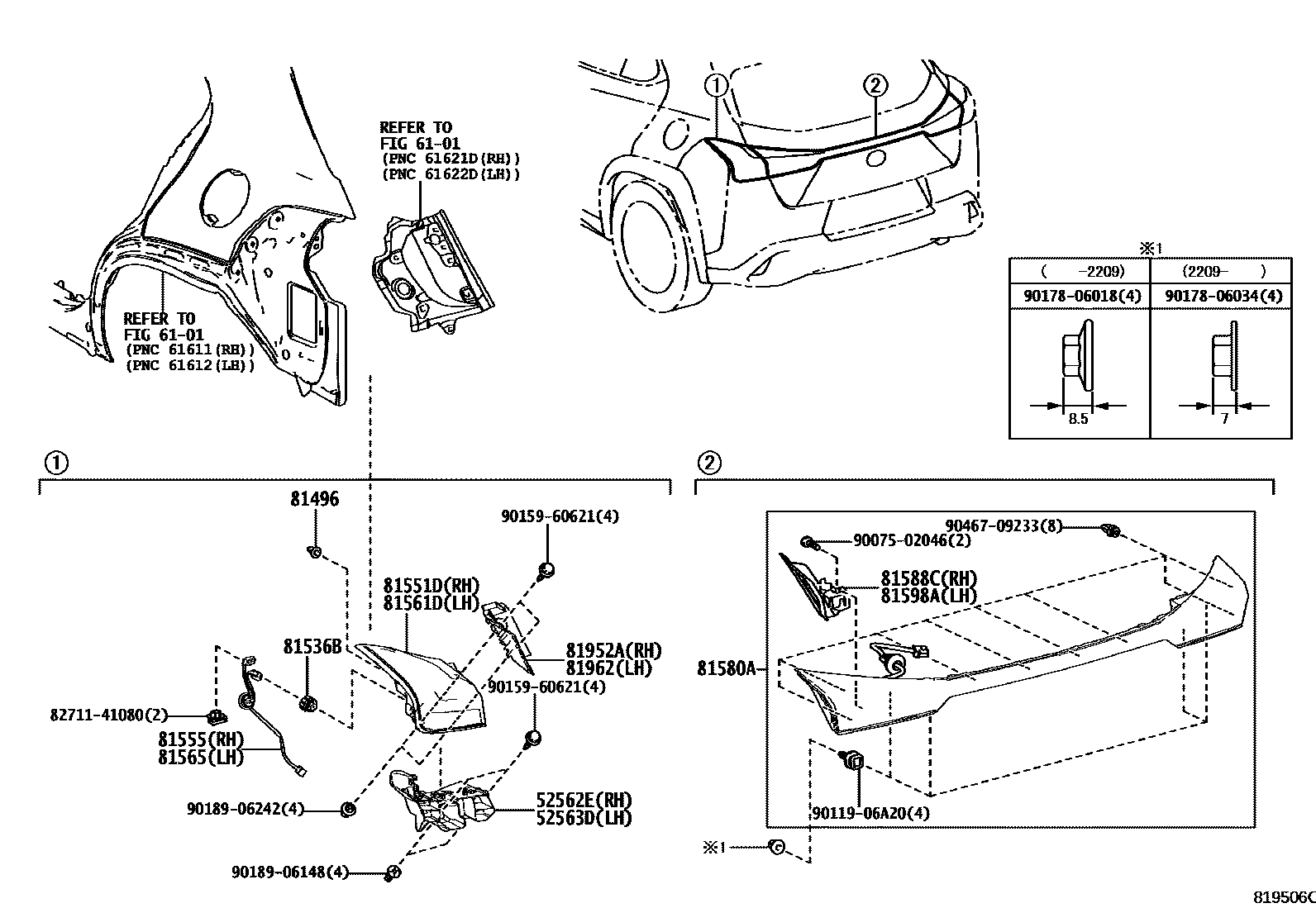

REAR COMBINATION LAMP

52562ERETAINER, REAR BUMPER, UPPER RH

main52562-76020iKMA10¥4,890202004

52563DRETAINER, REAR BUMPER, UPPER LH

main52563-76020iKMA10¥4,890202004

6101

81496GUIDE, REAR COMBINATION LAMP

main81496-52020iKMA10¥70202004

81536BLED, REAR TURN SIGNAL LAMP

main81536-12D30iKMA10¥3,670202004-202210

main81965-48030iKMA10¥3,210202210

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-76370iKMA10202004-202005

sub81551-76371¥33,100

main81551-76371iKMA10¥33,100202005

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-76290iKMA10¥1,270202004

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-76370iKMA10202004-202005

sub81561-76371¥33,100

main81561-76371iKMA10¥33,100202005

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81565-76290iKMA10¥1,270202004

81580ALAMP ASSY, REAR

main81580-76152iKMA10..EUR,GEN¥75,100202008

main81580-76171iKMA10¥82,800202004-202005

sub81580-76172¥69,000

main81580-76172iKMA10..ARL,CHI¥69,000202005

81588CRIM, REAR LAMP, RH

main81588-76140iKMA10¥810202004

81598ARIM, REAR LAMP, LH

main81588-76170iKMA10¥810202004

81952ACOVER, REAR LAMP, RH

main81952-76010iKMA10¥1,200202004

81962COVER, REAR LAMP, LH

main81962-76010iKMA10¥1,200202004

8271141080WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-41080¥70

9007502046

main90075-02046¥80

9011906A20

main90119-06A20¥100

9015960621

main90159-60621¥60

9017806018

main90178-06018¥80

9017806034

main90178-06034¥80

9018906148

main90189-06148¥80

9018906242

main90189-06242¥70

9046709233

main90467-09233¥80

23 parts on this diagram · 1 diagram in section
