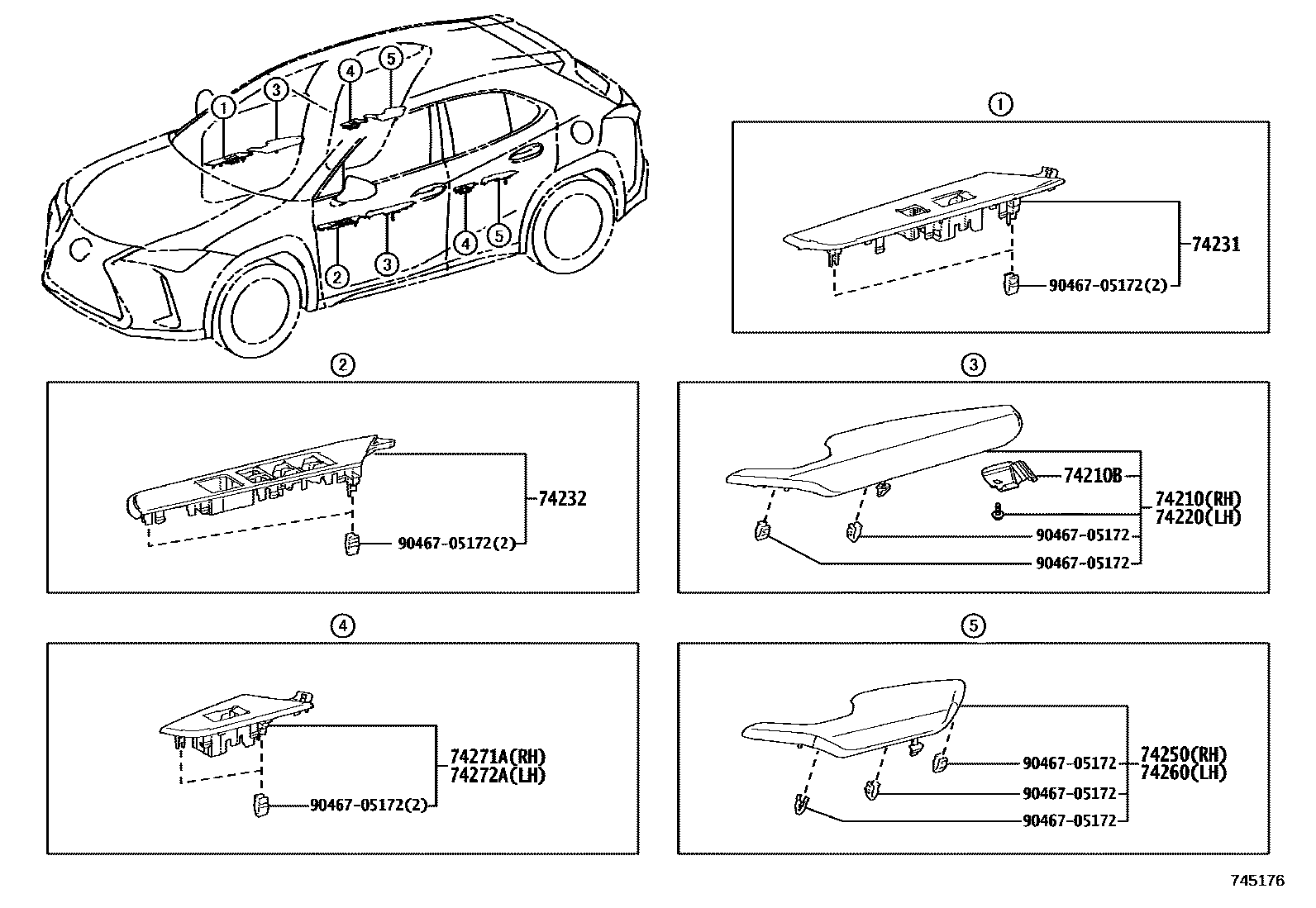

ARMREST & VISOR

0001 1ARMREST 0002 1ARMREST 0003 1VISOR & ASSIST GRIP

74210ARMREST ASSY, FRONT, RH

main74210-76020-A0iKMA10202004

RICH CREAM,TRIM0#

main74210-76020-B0iKMA10202108

WHITE ASH,TRIM1#,8#

main74210-76020-B1iKMA10202004-202108

CHATEAU,TRIM11

main74210-76020-C0iKMA10202004

BLACK,TRIM2#

main74210-76020-E1iKMA10202004

OCHER,TRIM4#

74210BBRACKET, ARMREST SET

main67645-76010iKMA10202004

RH

main67646-76010iKMA10202004

LH

74220ARMREST ASSY, FRONT, LH

main74220-76020-A0iKMA10202004

RICH CREAM,TRIM0#

main74220-76020-B0iKMA10202108

WHITE ASH,TRIM1#,8#

main74220-76020-B1iKMA10202004-202108

CHATEAU,TRIM11

main74220-76020-C0iKMA10202004

BLACK,TRIM2#

main74220-76020-E1iKMA10202004

OCHER,TRIM4#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-76050supersedes 74231-76030iKMA10..LHD202004

LUXURY PACKAGE

main74231-76060supersedes 74231-76040iKMA10..RHD202011

LUXURY PACKAGE

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-76050supersedes 74232-76030iKMA10..LHD202004

LUXURY PACKAGE

main74232-76060supersedes 74232-76040iKMA10..RHD202011

LUXURY PACKAGE

74250ARMREST ASSY, REAR RH

main74250-76010-A0iKMA10202004

RICH CREAM,TRIM0#

main74250-76010-B0iKMA10202108

WHITE ASH,TRIM1#,8#

main74250-76010-B1iKMA10202004-202108

CHATEAU,TRIM11

main74250-76010-C0iKMA10202004

BLACK,TRIM2#

main74250-76010-E1iKMA10202004

OCHER,TRIM4#

74260ARMREST ASSY, REAR LH

main74260-76010-A0iKMA10202004

RICH CREAM,TRIM0#

main74260-76010-B0iKMA10202108

WHITE ASH,TRIM1#,8#

main74260-76010-B1iKMA10202004-202108

CHATEAU,TRIM11

main74260-76010-C0iKMA10202004

BLACK,TRIM2#

main74260-76010-E1iKMA10202004

OCHER,TRIM4#

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-76030supersedes 74271-76020iKMA10202004

LUXURY PACKAGE

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-76030supersedes 74272-76020iKMA10202004

LUXURY PACKAGE

9046705172

main90467-05172

10 parts on this diagram · 3 diagrams in section
