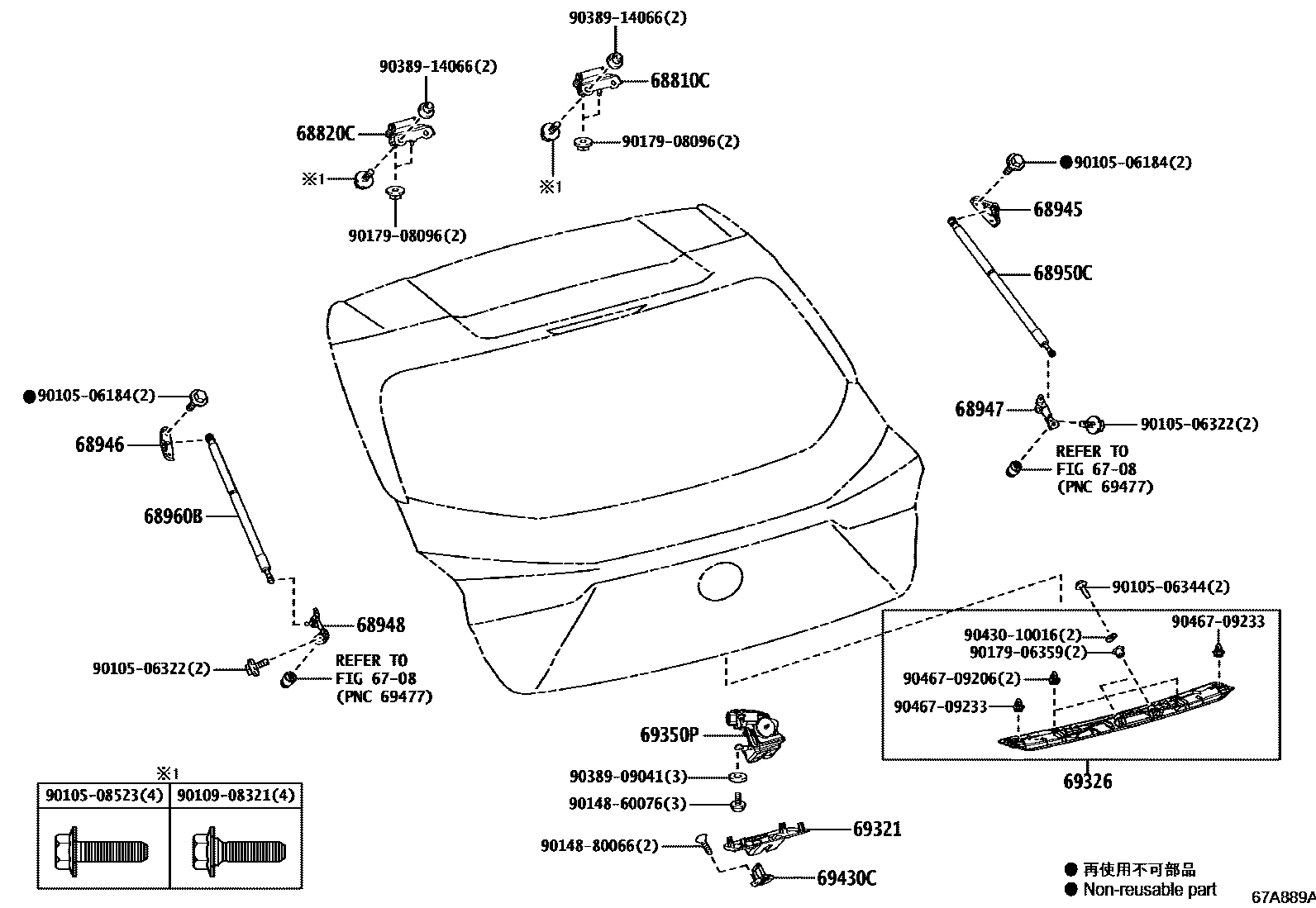

BACK DOOR LOCK & HANDLE

0001 1W/O(POWER BACK DOOR) 0002 1W(POWER BACK DOOR)

6708

68810CHINGE ASSY, BACK DOOR, RH

main68810-76070iKMA10202004

PAD T=1.0

main68810-76080iKMA10202004

PAD T=1.5

main68810-76090iKMA10202004

PAD T=2.0

68820CHINGE ASSY, BACK DOOR, LH

main68820-76020iKMA10202004

PAD T=1.0

main68820-76030iKMA10202004

PAD T=1.5

main68820-76040iKMA10202004

PAD T=2.0

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-76020supersedes 68945-76030iKMA10202004-202204

HANDS FREE POWER BACK DOOR- WITHOUT(W(POWER BACK DOOR))

main68945-76040supersedes 68945-76030iKMA10202205

HANDS FREE POWER BACK DOOR- WITHOUT(W(POWER BACK DOOR))

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-76020supersedes 68946-76030iKMA10202004-202204

HANDS FREE POWER BACK DOOR- WITHOUT(W(POWER BACK DOOR))

main68946-76040supersedes 68946-76030iKMA10202205

HANDS FREE POWER BACK DOOR- WITHOUT(W(POWER BACK DOOR))

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-76010iKMA10202004

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-76010iKMA10202004

68950CSTAY ASSY, BACK DOOR, RH

main68950-0WE90iKMA10202004-202207

main68950-0WN00iKMA10202207

68960BSTAY ASSY, BACK DOOR, LH

main68960-0WE80iKMA10202004-202207

main68960-0WM90iKMA10202207

69321COVER, BACK DOOR LOCK

main69321-76010iKMA10202004

69326PLATE, BACK DOOR OUTSIDE HANDLE

main69326-76010supersedes 69326-76030iKMA10..ARL;KMA10..LHD..GEN202108

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-76020supersedes 69350-76010iKMA10..ARL,CHI,GEN202004

HANDS FREE POWER BACK DOOR- WITHOUT(W(POWER BACK DOOR))

main69350-76030supersedes 69350-76040iKMA10..EUR202008

HANDS FREE POWER BACK DOOR- WITHOUT(W(POWER BACK DOOR))

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-48030iKMA10202004

9010506184

main90105-06184

9010506322

main90105-06322

9010506344

main90105-06344

9010508523

main90105-08523

9010908321

main90109-08321

9014860076

main90148-60076

9014880066

main90148-80066

9017906359

main90179-06359

9017908096

main90179-08096

9038909041

main90389-09041

9038914066

main90389-14066

9043010016

main90430-10016

9046709206

main90467-09206

9046709233

main90467-09233

27 parts on this diagram · 2 diagrams in section
