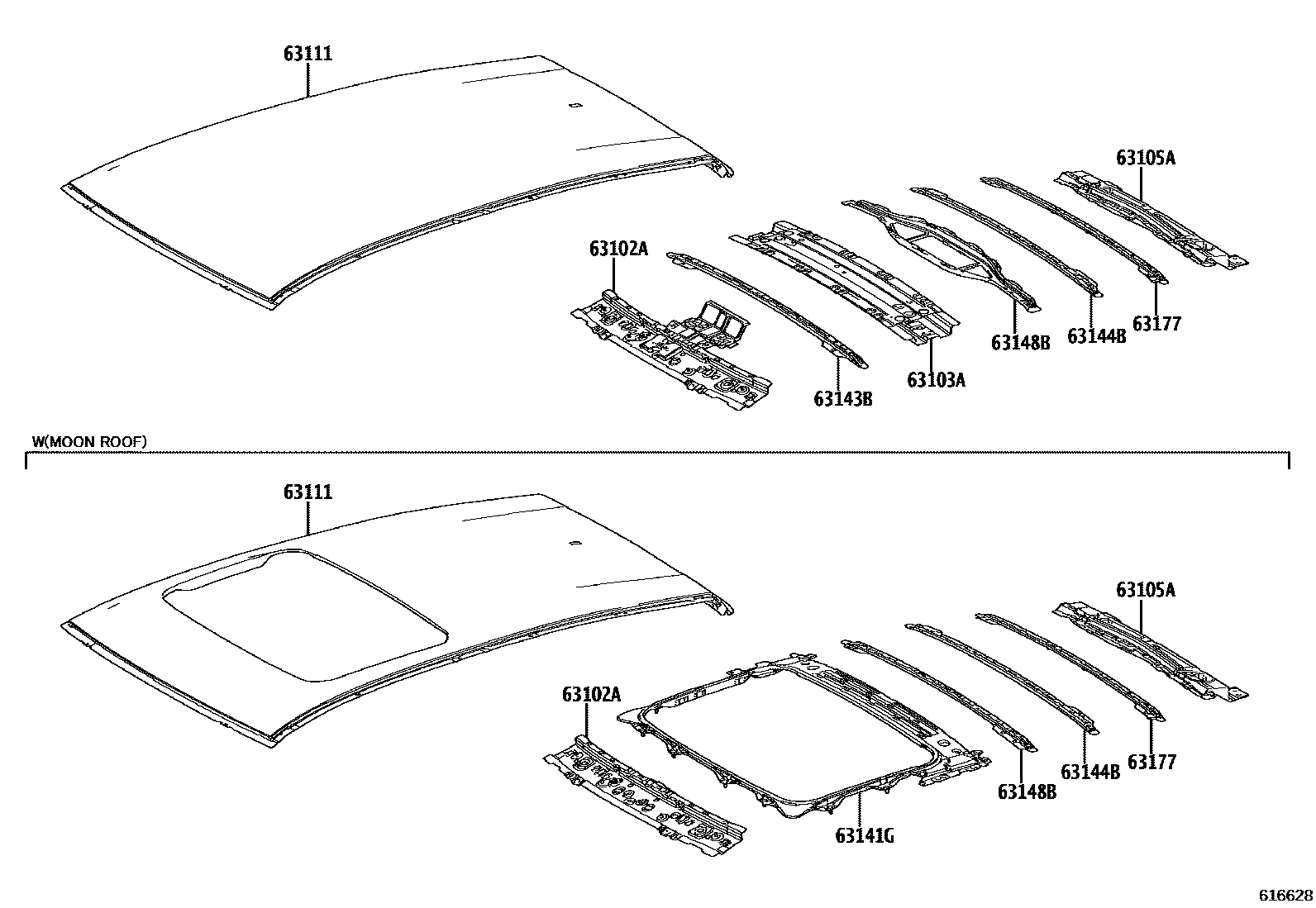

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL 0002 1MOON ROOF 0003 1ROOF RAIL

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-76904supersedes 63102-76903iKMA10202004

MOON ROOF-WITH

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-76020iKMA10202004

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-76020iKMA10202004

63111PANEL, ROOF

main63111-76030supersedes 63111-76050iKMA10..CHI,EUR202004

ROOF RAIL-WITH

main63111-76040supersedes 63111-76060iKMA10..ARL,GEN202011

ROOF RAIL-WITH

main63111-76070supersedes 63111-76050iKMA10..CHI,EUR202004

ROOF RAIL-WITH&MOON ROOF-WITH

main63111-76080supersedes 63111-76060iKMA10..ARL,GEN202011

ROOF RAIL-WITH&MOON ROOF-WITH

main63111-76090supersedes 63111-76050iKMA10..CHI,EUR202004

MOON ROOF-WITH

main63111-76100supersedes 63111-76060iKMA10..ARL,GEN202011

MOON ROOF-WITH

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63107-76010iKMA10202004

MOON ROOF-WITH

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-76020iKMA10202004

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-76020iKMA10202004

63148BREINFORCEMENT, ROOF PANEL SIDE

main63148-76030supersedes 63148-76020iKMA10202004

MOON ROOF-WITH

63177REINFORCEMENT, ROOF PANEL, NO.9

main63177-76010iKMA10202004

9 parts on this diagram · 3 diagrams in section
