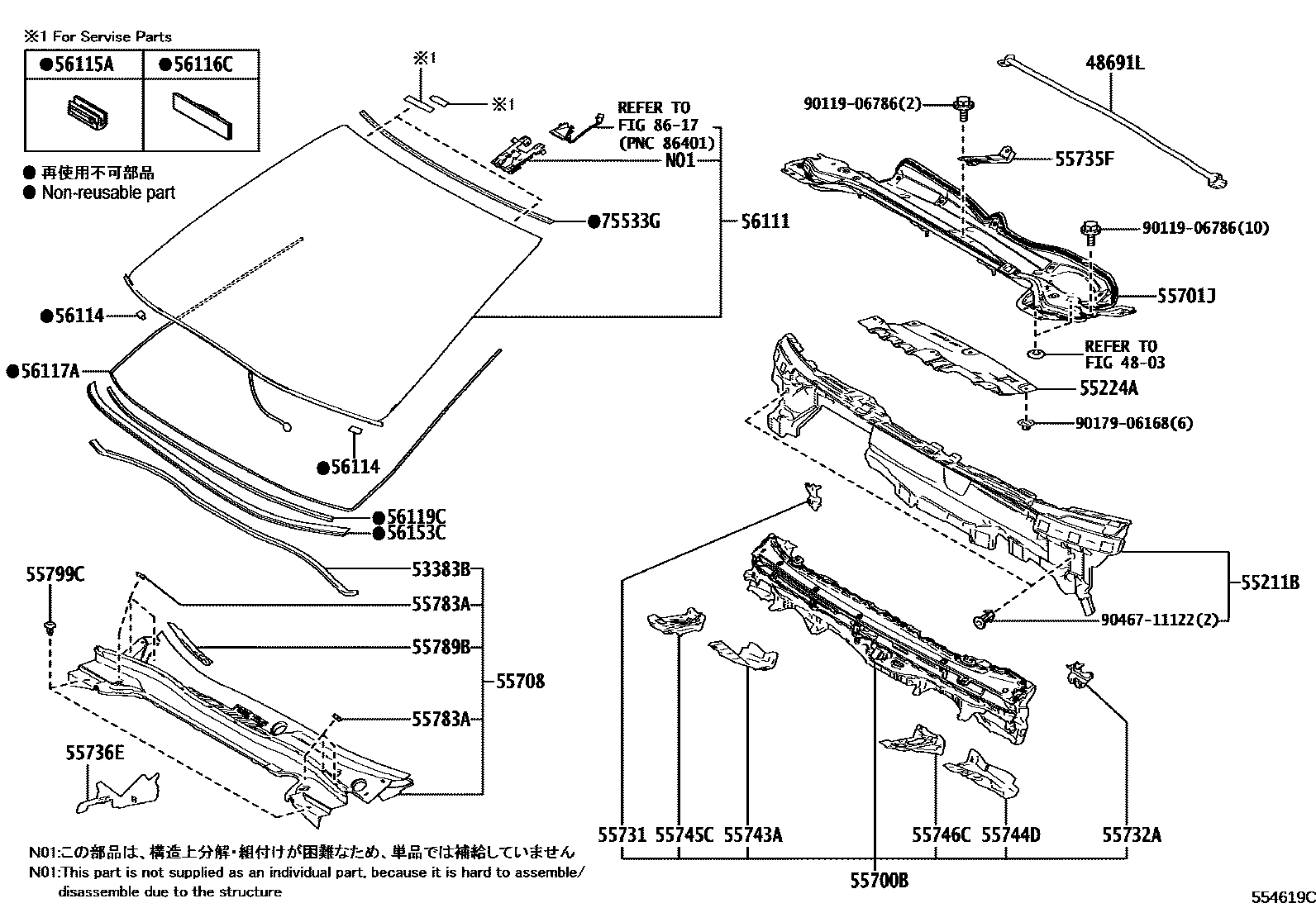

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

4803

48691LDAMPER OR ROD, FRONT PERFORMANCE

main48691-76040iKMA10202004

53383BSEAL, HOOD TO COWL TOP

main53383-76030iKMA10202004

55211BSILENCER, FRONT PANEL

main55211-76030iKMA10..LHD202004

main55211-76040iKMA10..RHD202011

main55211-76010iKMA10..LHD..(EUR,GEN)202008

LUXURY PACKAGE

main55211-76020iKMA10..RHD202011-202108

HEAD-UP DISPLAY-WITH

55224AINSULATOR, DASH PANEL, OUTER NO.2

main55224-76020iKMA10..LHD202004

main55224-76030iKMA10..RHD202011

55700BCOWL ASSY

main55700-76030iKMA10..LHD202004

main55700-76040iKMA10..RHD202011

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-76030iKMA10..LHD202004

main55701-76040iKMA10..RHD202011

55708LOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-76050iKMA10..LHD202004

main55708-76070iKMA10..RHD202011

main55708-76060iKMA10..LHD..(CHI,EUR)202004-202203

COLD AREA SPEC

55731BRACKET, COWL BODY MOUNTING, UPPER RH

main55731-76020iKMA10202004

55732ABRACKET, COWL BODY MOUNTING, UPPER LH

main55732-76020iKMA10202004

55735FREINFORCEMENT, COWL BODY MOUNTING

main55735-76020iKMA10202004

55736EPLATE, WATER GUIDE, RH

main55737-76030iKMA10..LHD202004

55743AEXTENSION, COWL TO COWL SIDE, RH

main55743-76020iKMA10202004

55744DEXTENSION, COWL TO COWL SIDE, LH

main55744-76020iKMA10202004

55745CREINFORCEMENT, COWL TOP, INNER RH

main55745-76010iKMA10202004

55746CREINFORCEMENT, COWL TOP, INNER LH

main55746-76010iKMA10202004

55783APAD, COWL TOP SILENCER

main55783-48070×6iKMA10202004

55789BPROTECTOR, COWL TOP VENTTINATOR LOUVER, NO.2

main55789-76030iKMA10202004

55799CCLIP, COWL TOP VENTILATOR LOUVER

main90467-09242×2iKMA10202004

56111GLASS, WINDSHIELD

main56101-76980iKMA10..LHD..EUR202008

BALTIC STATES & SWEDEN SPEC&LUXURY PACKAGE&COLD AREA SPEC

main56101-76981supersedes 56101-76907iKMA10..CHI202004

COLD AREA SPEC

main56101-76982iKMA10..LHD..EUR202008

FINLAND SPEC&COLD AREA SPEC

main56101-76987supersedes 56101-76988iKMA10..GEN202011-202108

INDONESIA SPEC&PREMIUM PACKAGE&HEAD-UP DISPLAY-WITH

main56101-76991iKMA10..GEN202011-202108

THAILAND SPEC&HEAD-UP DISPLAY-WITH

main56101-76993supersedes 56101-76994iKMA10..LHD..EUR202008

GERMANY SPEC&LUXURY PACKAGE

56114RETAINER, WINDSHIELD GLASS

main56114-30120×2iKMA10..ARL,CHI;KMA10..LHD..GEN202004

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100×2iKMA10..ARL,CHI;KMA10..LHD..GEN202004

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2iKMA10..ARL,CHI;KMA10..LHD..GEN202004

56117ADAM, WINDOW GLASS ADHESIVE

main56117-64010supersedes 56117-64010iKMA10..RHD..(EUR,GEN)202108

*D,L=2902,DENMARK SPEC

56119CSEAL, WINDSHIELD GLASS

main56119-76020iKMA10..ARL,CHI;KMA10..LHD..GEN202004

56153CMOULDING, FRONT WINDOW, INNER CENTER

main56153-76010iKMA10..LHD..(CHI,GEN)202004

main56153-76020iKMA10..RHD202108

75533GMOULDING, WINDSHIELD, OUTSIDE

main75533-76020iKMA10..ARL,CHI;KMA10..LHD..GEN202004

8617

9011906786

main90119-06786

9017906168

main90179-06168

9046711122

main90467-11122

31 parts on this diagram · 2 diagrams in section
