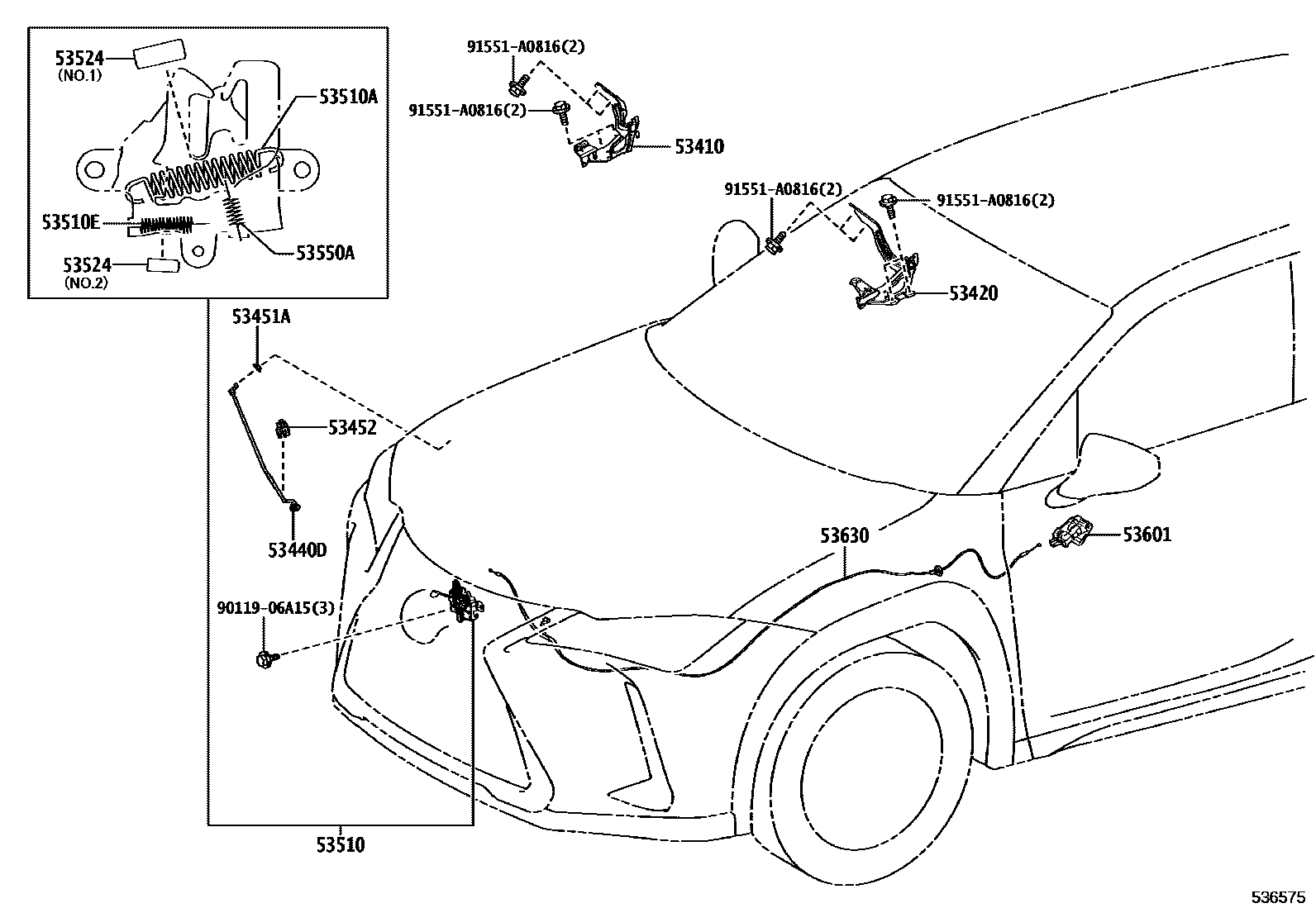

HOOD LOCK & HINGE

0001 1 0002 1

53410HINGE ASSY, HOOD, RH

main53410-76050iKMA10202004-202110

main53410-76051iKMA10202111

53420HINGE ASSY, HOOD, LH

main53420-76050iKMA10202004-202110

main53420-76051iKMA10202111

53440DSUPPORT ASSY, HOOD

main53440-76020iKMA10202004

sub53440-76021

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15025iKMA10202004

53452HOLDER, HOOD STAY

main53452-76020iKMA10202004

53510LOCK ASSY, HOOD

main53510-76051iKMA10..RHD202011

main53510-76071iKMA10..LHD202004

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-16080iKMA10202004

WD=1.6,CW=13

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-09055iKMA10202004

WD=0.9,CW=21

53524DAMPER, HOOD LOCK SPRING

main53524-30020iKMA10202004

NO.1:REFER ILLUST.

main53524-30040iKMA10202004

NO.2:REFER ILLUST.

53550ASPRING, TORSION(FOR HOOD LOCK HOOK)

main90506-12063iKMA10202004

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-30110-C0iKMA10202004

BLACK,TRIM0#,1#,2#,4#,8#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-76030iKMA10..LHD202004

main53630-76040iKMA10..RHD202011

9011906A15

main90119-06A15

91551A0816

main91551-A0816

14 parts on this diagram · 2 diagrams in section
