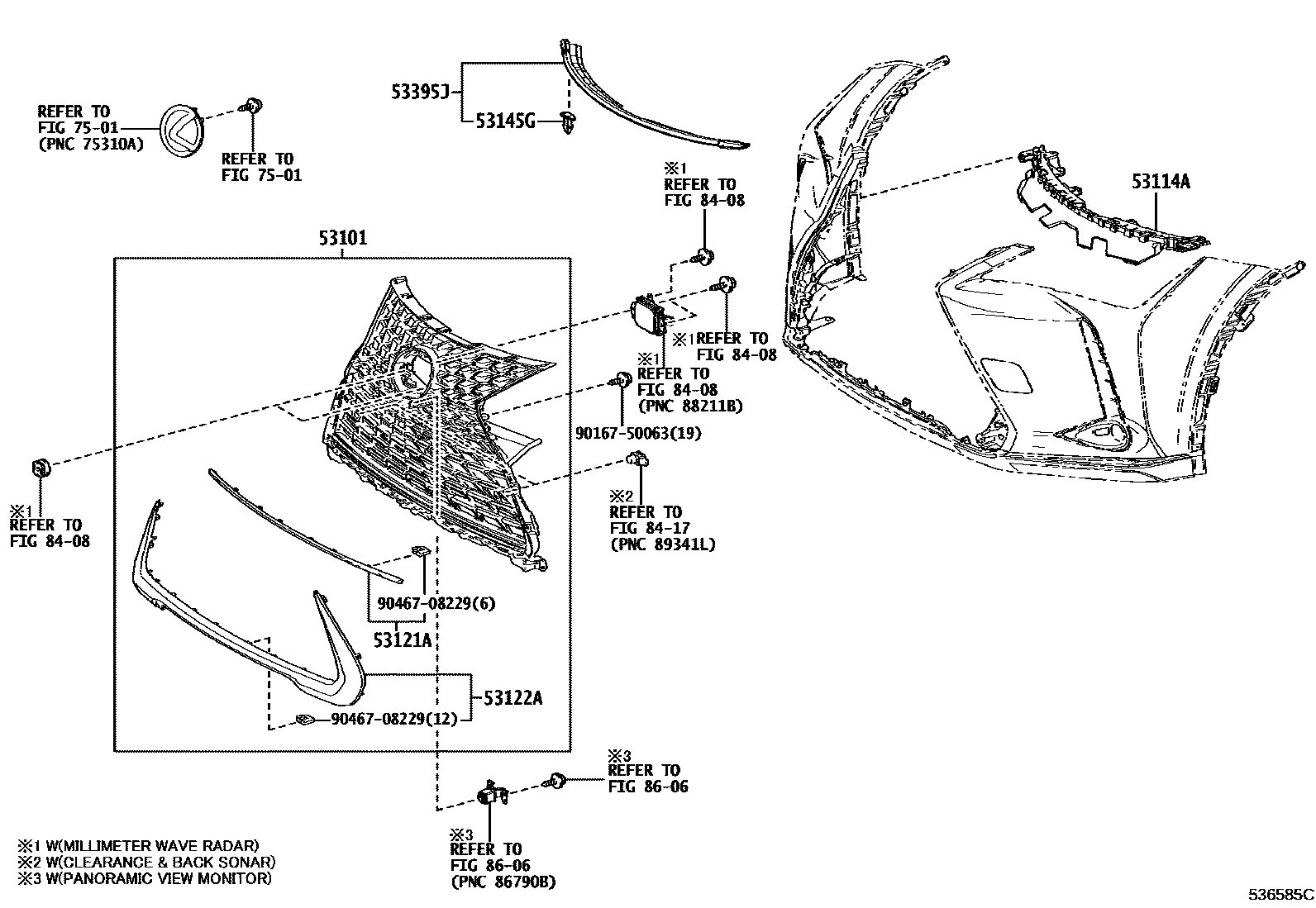

RADIATOR GRILLE
53101GRILLE SUB-ASSY, RADIATOR
PLATED
PLATED,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(GUIDE)
PLATED,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(*PVM)
PLATED,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(GUIDE)
PLATED,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(*PVM)
PLATED,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(GUIDE)
PLATED,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(*PVM)
PLATED,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(GUIDE)
PLATED,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(*PVM)
53114AGRILLE, RADIATOR, INNER
53121AMOULDING, RADIATOR GRILLE
53122AMOULDING, RADIATOR GRILLE, LOWER
53145GCLIP, RADIATOR GRILLE
53395JSEAL, HOOD TO FRONT END PANEL
7501
8408
8417
8606
9016750063
main90167-50063
9046708229
main90467-08229
12 parts on this diagram · 1 diagram in section
