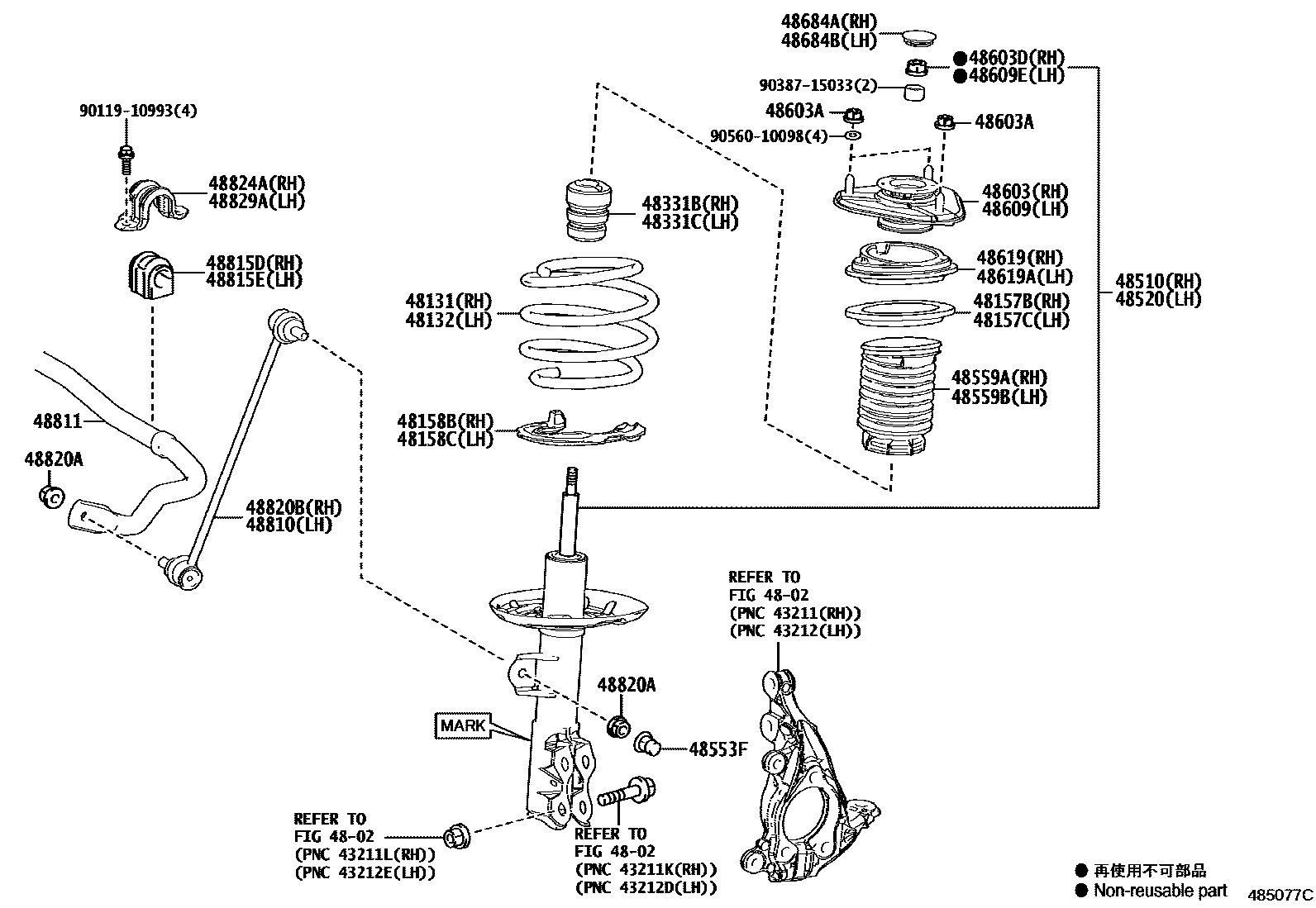

FRONT SPRING & SHOCK ABSORBER
4802
48131SPRING, FRONT COIL, RH
TIRE & DISC WHEEL-225/50R18, SUMMER TIRE
48132SPRING, FRONT COIL, LH
TIRE & DISC WHEEL-225/50R18, SUMMER TIRE
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
48331BBUMPER, FRONT SPRING, RH
48331CBUMPER, FRONT SPRING, LH
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-76220
MARK 48510-76390
MARK 48510-76230,NORWAY SPEC&PREMIUM PACKAGE&TIRE & DISC WHEEL-225/50R18, SUMMER TIRE
MARK 48510-76250,HONG KONG SPEC&LUXURY PACKAGE&TIRE & DISC WHEEL-225/50R18, SUMMERTIRE
MARK 48510-76380,LUXURY PACKAGE&TIRE & DISC WHEEL-225/50R18, SUMMER TIRE
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48520-76220
MARK 48520-76390
MARK 48520-76230,TIRE & DISC WHEEL-225/50R18, SUMMER TIRE
MARK 48520-76250,SINGAPORE SPEC&PREMIUM PACKAGE&TIRE & DISC WHEEL-225/50R18, SUMMER TIRE
MARK 48520-76380,HONG KONG SPEC&LUXURY PACKAGE&TIRE & DISC WHEEL-225/50R18, SUMMERTIRE
48553FCAP
48559ACOVER, FRONT SHOCK ABSORBER DUST, RH NO.1
48559BCOVER, FRONT SHOCK ABSORBER DUST, LH NO.1
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
48619BEARING, STRUT MOUNTING, RH
48619ABEARING, STRUT MOUNTING, LH
48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH
48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
48815DBUSH, FRONT STABILIZER BAR, RH
48815EBUSH, FRONT STABILIZER BAR, LH
48820ANUT(FOR FRONT STABILIZER LINK)
48820BLINK ASSY, FRONT STABILIZER, RH
48824ABRACKET, FRONT STABILIZER, NO.1 RH
48829ABRACKET, FRONT STABILIZER, NO.1 LH
9011910993
main90119-10993
9038715033
main90387-15033
9056010098
main90560-10098
34 parts on this diagram · 1 diagram in section
