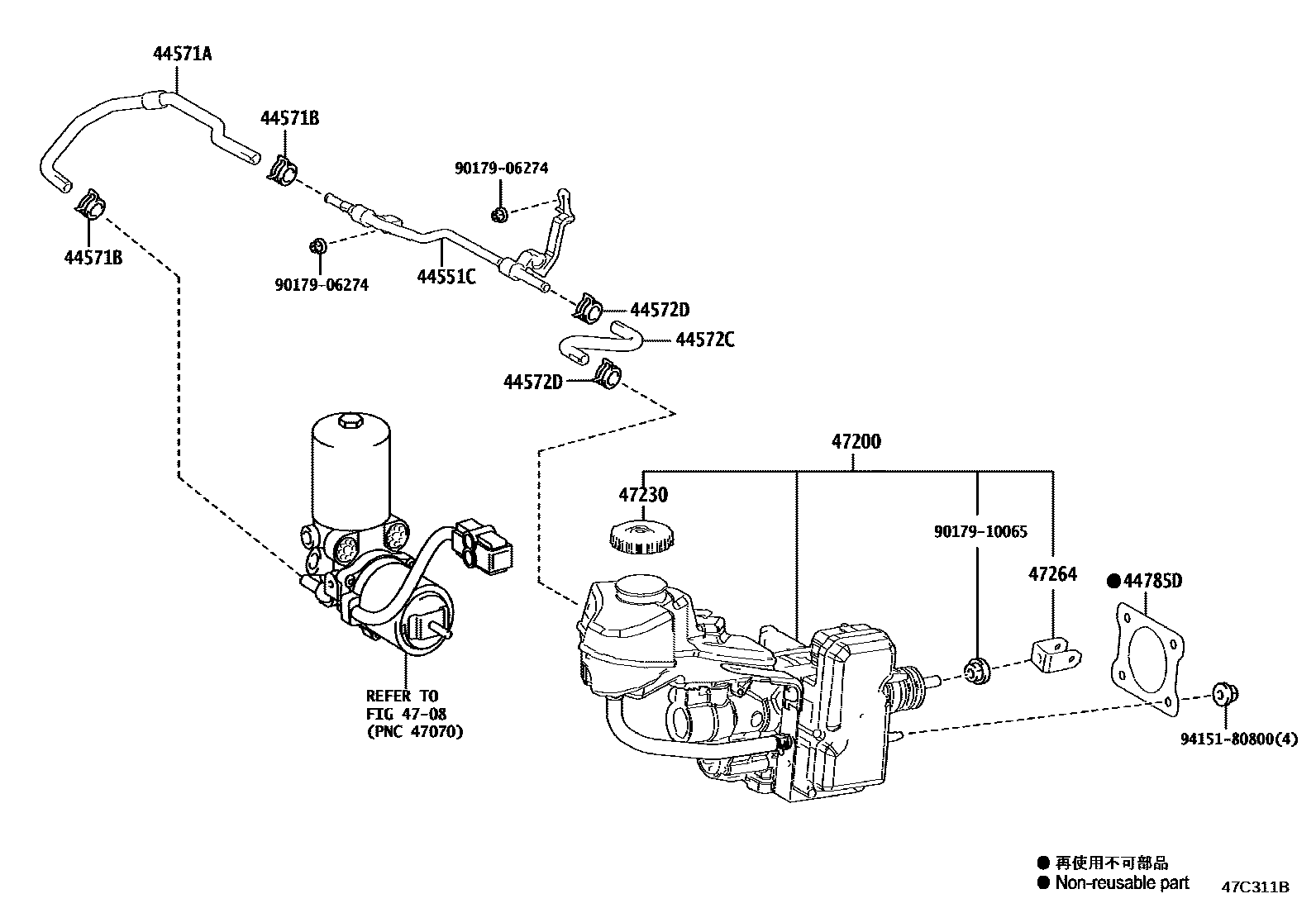

BRAKE MASTER CYLINDER

0001 1 0002 1

44551CTUBE, BRAKE ACTUATOR, NO.1

main44551-47050iKMA10..LHD202004

main44551-47060iKMA10..RHD202011

44571AHOSE, BRAKE ACTUATOR, NO.1

main44571-47080iKMA10..RHD202011

main44571-76020iKMA10..LHD202004

44571BCLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.1)

main96137-41501iKMA10202004

44572CHOSE, BRAKE ACTUATOR, NO.2

main44572-47050iKMA10..LHD202004

main44572-47060iKMA10..RHD202011

44572DCLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.2)

main96137-41501iKMA10202004

44785DGASKET, BRAKE MASTER CYLINDER

main44785-12040iKMA10202004

4708

47200CYLINDER ASSY, BRAKE MASTER

main47050-76310iKMA10..LHD..(CHI,GEN)202004-202111

main47050-76320iKMA10..LHD..EUR202008-202111

main47050-76470iKMA10..RHD..(ARL,GEN)202011-202111

main47050-76550iKMA10..RHD..EUR202011-202111

main47050-76750iKMA10..LHD..(CHI,GEN)202111

ISRAEL SPEC

main47050-76760iKMA10..LHD..EUR202111

main47050-76790iKMA10..RHD..(ARL,GEN)202111

main47050-76810iKMA10..RHD..EUR202111

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-33330iKMA10202004-202006

sub47230-47090

main47230-47090iKMA10..RHD202006-202111

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-47010iKMA10202004

9017906274

main90179-06274

9017910065

main90179-10065

9415180800

main94151-80800

13 parts on this diagram · 2 diagrams in section
