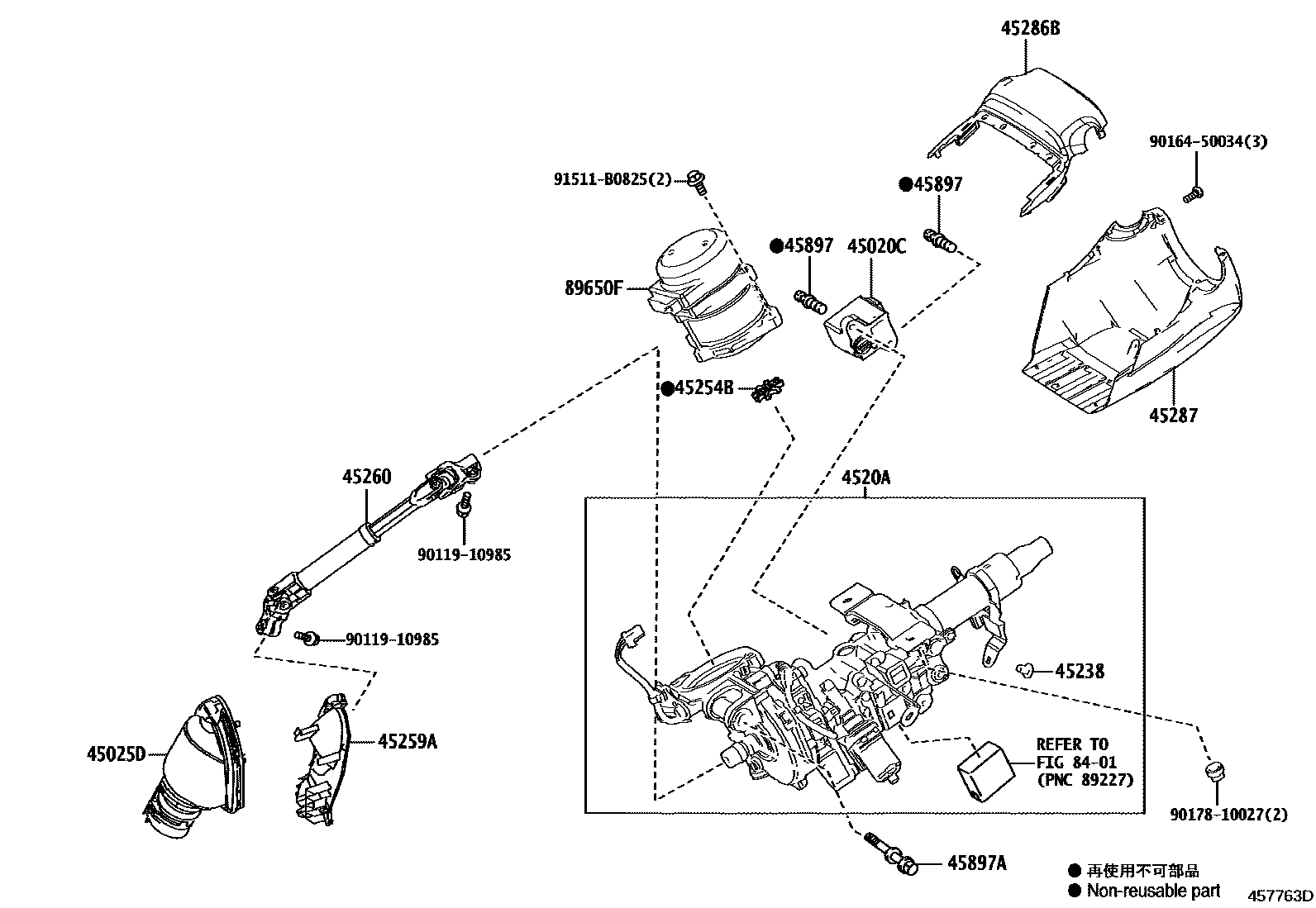

STEERING COLUMN & SHAFT

0001 1 0002 1

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-48090iKMA10202004

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-10110iKMA10..RHD202011

main45025-76010iKMA10..LHD202004

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-76040iKMA10..CHI202004

main4520A-76050iKMA10..LHD..(EUR,GEN)202008

main4520A-76060iKMA10..RHD202011

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-11010iKMA10202004

45254BDAMPER, ELECTRIC POWER STEERING MOTOR SHAFT

main45254-28040iKMA10202004

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-12170iKMA10..RHD202011

main45259-76030iKMA10..LHD202004

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-76030iKMA10..LHD202004

main45260-76040iKMA10..RHD202011

45286BCOVER, STEERING COLUMN, UPR

main45286-76020-C0iKMA10202004

BLACK,TRIM0#,1#,2#,4#,8#

45287COVER, STEERING COLUMN, LWR

main45024-76030-C0iKMA10202004

BLACK,TRIM0#,1#,2#,4#,8#

45897BOLT, STEERING LOCK SET

main45897-12020iKMA10202004

45897ABOLT, TILT STEERING PAWL SET

main90119-10981iKMA10202004

8401

89650FCOMPUTER ASSY, POWER STEERING W/MOTOR

main89650-76250iKMA10..LHD..(EUR,GEN)202008

main89650-76270iKMA10..CHI202004

main89650-76280iKMA10..RHD..(ARL,EUR)202011

main89650-76340iKMA10..RHD..GEN202011

9011910985

main90119-10985

9016450034

main90164-50034

9017810027

main90178-10027

91511B0825

main91511-B0825

17 parts on this diagram · 2 diagrams in section
