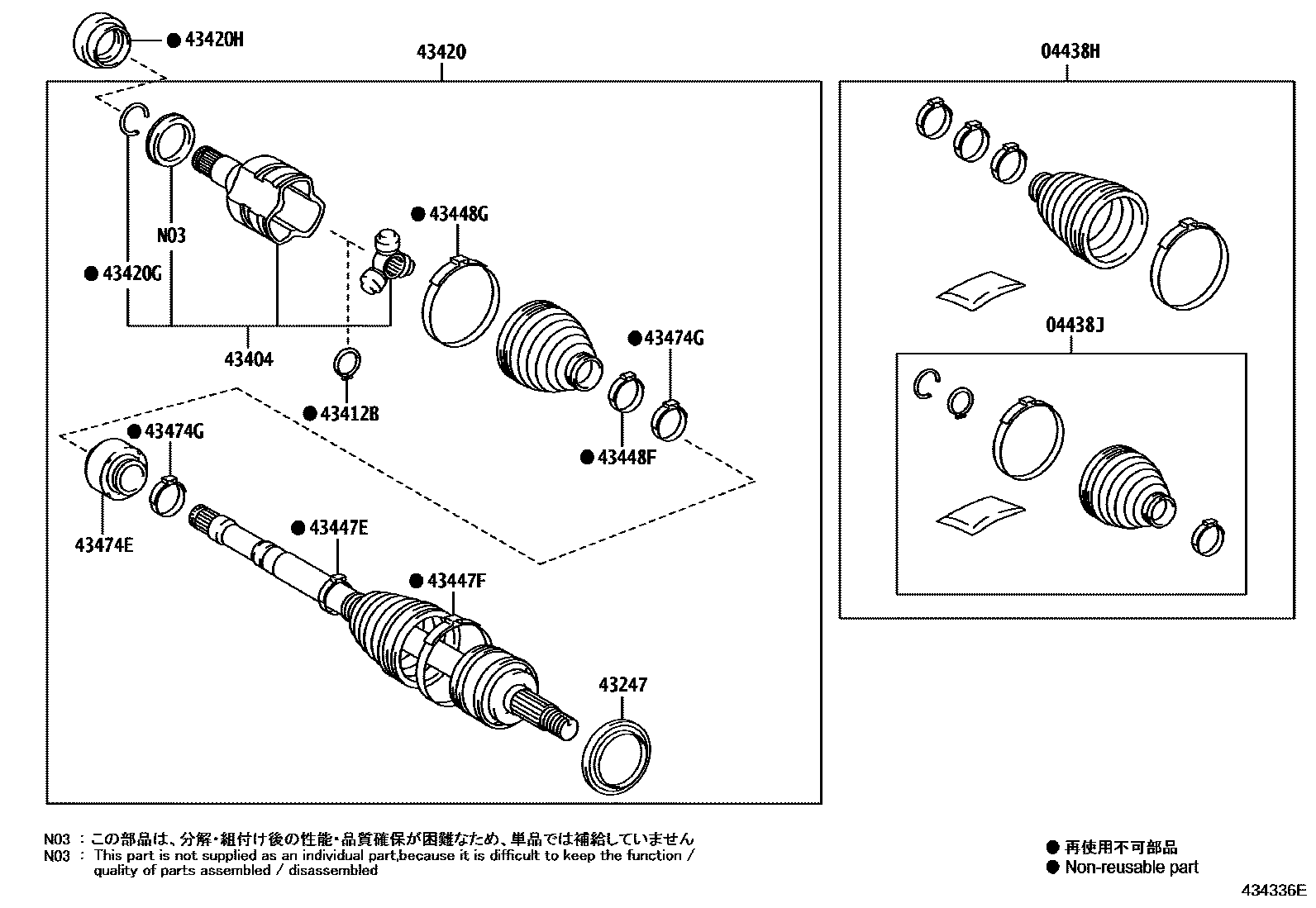

FRONT DRIVE SHAFT

0001 1LH 0002 1RH

04438HBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH

main04428-76001iKMA10202004

04438JBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH

main04437-76000iKMA10202004

43247DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2

main43247-76010iKMA10202004

43404JOINT SET, FRONT AXLE INBOARD, LH

main43404-F4020iKMA10202004

43412BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)

main43425-F4150iKMA10202004

43420SHAFT ASSY, FRONT DRIVE, LH

main43420-76030iKMA10202004

43420GRING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)

main43425-F4170iKMA10202004

43420HOIL SEAL, FRONT DRIVE SHAFT, LH

main90311-50059iKMA10202004

43447ECLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-F4260iKMA10202004

43447FCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-F4270iKMA10202004

43448FCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-F4240iKMA10202004

43448GCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-F4250iKMA10202004

43474EDAMPER, FRONT DRIVE SHAFT, LH

main43474-F4130iKMA10202004

43474GCLAMP (FOR FRONT DRIVE SHAFT DAMPER LH)

main42345-F4280iKMA10202004

14 parts on this diagram · 2 diagrams in section
