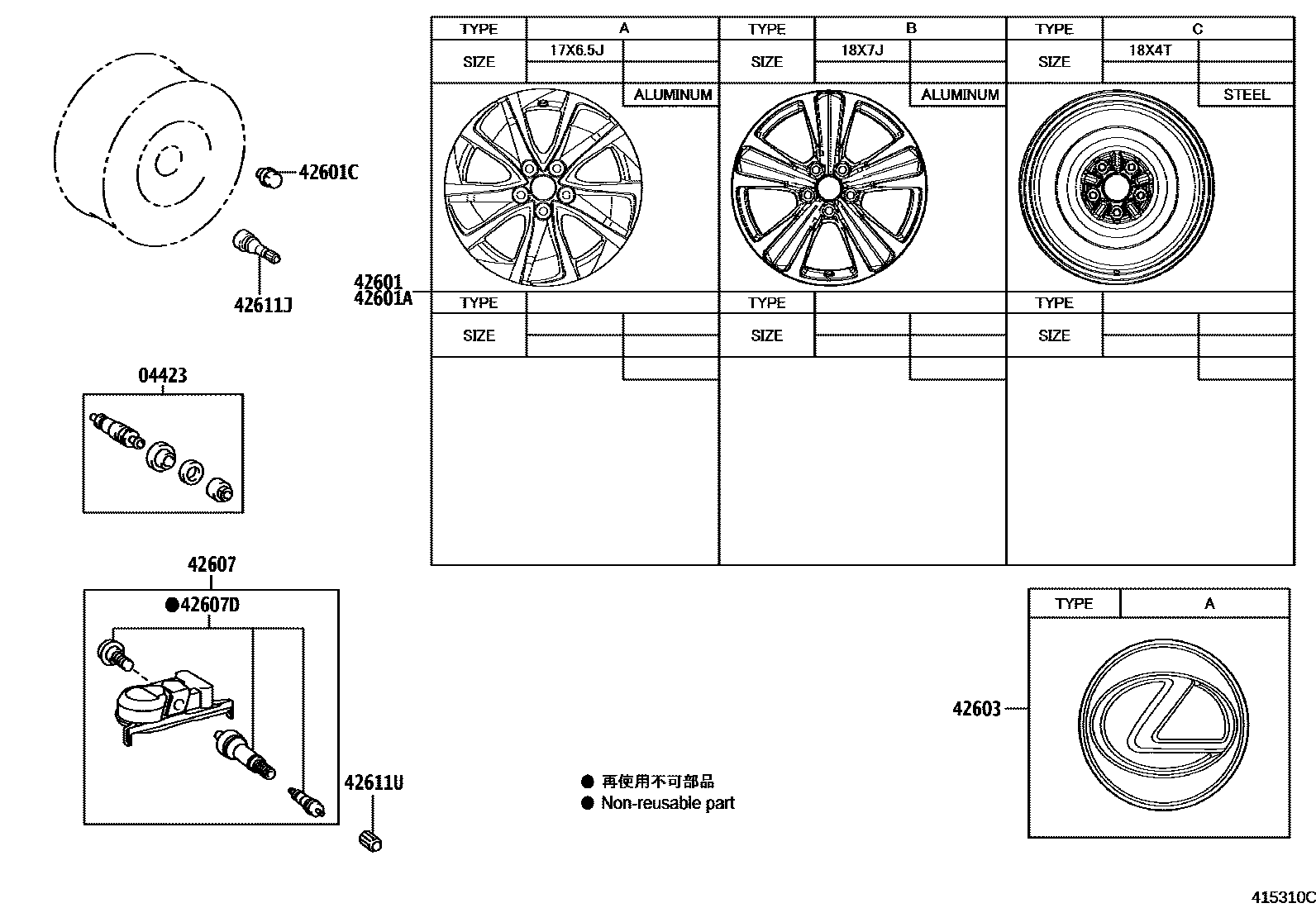

DISC WHEEL & WHEEL CAP

0001 1DISC WHEEL & WHEEL HUB ORNAME0002 1BALANCE WEIGHT

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-33060iKMA10202004

42601WHEEL, DISC

main42611-76330iKMA10202004

17X6.5J,TYPE A:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-30F32iKMA10..CHI202004

18X4T,TYPE C:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01033iKMA10202004

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-50381iKMA10202004

*ALU,TYPE A:REFER ILLUST.

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-53020iKMA10..LHD..GEN202108

main42607-53040iKMA10..RHD;KMA10..LHD..(CHI,EUR)202004

42607DVALVE, TIRE PRESSURE MONITOR

main90942-05044iKMA10202004

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iKMA10..CHI202004

42611UCAP, TIRE VALVE

main90942-05042iKMA10202004

9 parts on this diagram · 2 diagrams in section
