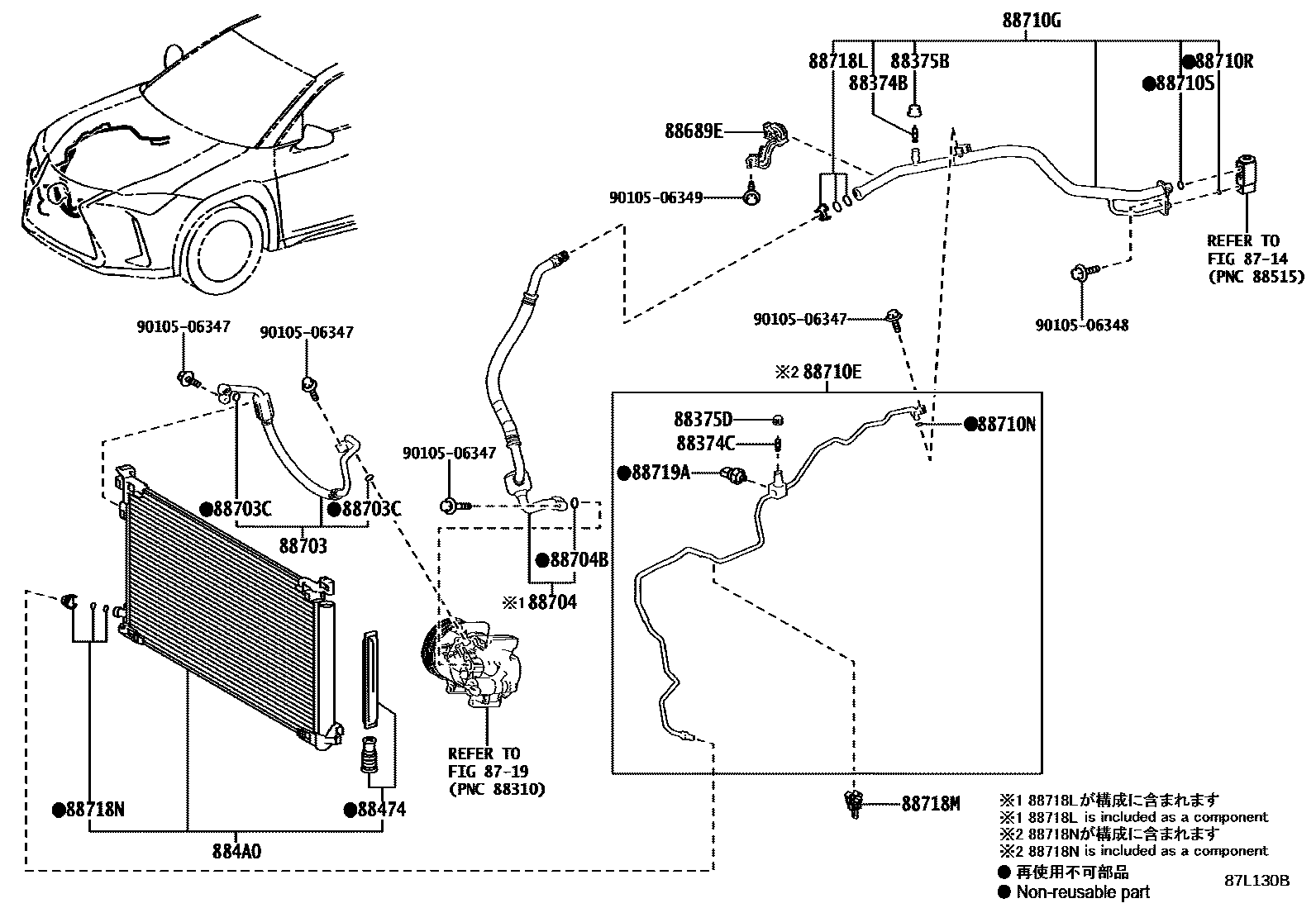

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iMZAH11..CHI202207-202512

88374CVALVE, SERVICE, NO.2

main88374-30010iMZAH11..CHI202207-202512

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iMZAH10,15..LHD..EUR202207

DESTINATION PACKAGE(ERP)&DEST.PACKAGE (EXC/ERP.)-KAZAKHSTAN SPEC

main88375-30290iMZAH10,15..LHD..EUR202207

DESTINATION PACKAGE(ERP)-GEORGIA,AZERBAIJAN SPEC

main88375-30290iMZAA10,MZAH10,15..LHD..EUR202207

DESTINATION PACKAGE(ERP)&MOROCCO SPEC

main88375-30290iMZAA10,MZAH10,15..LHD..EUR202207

DESTINATION PACKAGE(ERP)&RUSSIA SPEC

main88375-30290iMZAA10,MZAH10,15..LHD..EUR202207

DESTINATION PACKAGE(ERP)&UKRAINE SPEC

main88375-30290iKMA10..LHD..EUR202401-202512

UKRAINE SPEC

main88375-30290iKMA10..RHD;KMA10..LHD..GEN202207-202501

main88375-30290iMZAH11,16..LHD..EUR202401

GEORGIA,AZERBAIJAN SPEC

main88375-30290iMZAH11,16..LHD..EUR202401

MOROCCO SPEC

main88375-30310iMZAA10,MZAH10,15..EUR202207-202512

88375DCAP, SERVICE VALVE, NO.2

main88375-30280iMZAA10,MZAH10,15..LHD..EUR202207

DESTINATION PACKAGE(ERP)&RUSSIA SPEC

main88375-30280iKMA10..ARL,GEN202207-202501

main88375-30280iMZAA10,MZAH10,15..ARL,CHI,GCC,GEN202207

DESTINATION PACKAGE(ERP)&MOROCCO SPEC

main88375-30280iMZAA10,MZAH10,15..ARL,CHI,GCC,GEN202207

DESTINATION PACKAGE(ERP)&UKRAINE SPEC

main88375-30280iMZAA10,MZAH10,15..ARL,CHI,GCC,GEN202207

DESTINATION PACKAGE(ERP)&DEST.PACKAGE (EXC/ERP.)-KAZAKHSTAN SPEC

main88375-30280iMZAA10,MZAH10,15..ARL,CHI,GCC,GEN202207

DESTINATION PACKAGE(ERP)-GEORGIA,AZERBAIJAN SPEC

main88375-30280iKMA10..GEN202401-202512

UKRAINE SPEC

main88375-30280iMZAH11,16..GCC,GEN202401

MOROCCO SPEC

main88375-30280iMZAH11,16..GCC,GEN202401

GEORGIA,AZERBAIJAN SPEC

main88375-30320iKMA10..EUR202207-202512

88474DRYER, COOLER

main88474-12010iMZAH11,16..ARL,EUR,GCC,GEN¥0202401-202501

main88474-12020iKMA10¥0202207-202512

884A0CONDENSER ASSY, COOLER

main88460-10320iKMA10¥36,300202303-202512

main884A0-12010iMZAA10..EUR¥32,300202207

main884A0-12020iMZAA10..ARL,GCC,GEN202207

DESTINATION PACKAGE(ERP)&UKRAINE SPEC

main884A0-12020iMZAA10..ARL,GCC,GEN202207

DESTINATION PACKAGE(ERP)&DEST.PACKAGE (EXC/ERP.)-KAZAKHSTAN SPEC

main884A0-12020iMZAA10..EUR202207

DESTINATION PACKAGE(ERP)&RUSSIA SPEC

main884A0-12110iMZAH11..CHI¥32,400202401-202501

main884A0-76010iMZAH10,15¥32,300202207

88689EBRACKET, COOLER, NO.1

main88688-12A40iMZAA10202207

main88688-76080iKMA10202303-202512

main88688-76150iMZAH10,15202207-202501

88703HOSE SUB-ASSY, DISCHARGE

main88703-76020iMZAH10,15¥10,400202207

main88703-76030iMZAA10¥8,100202207

main88703-76040iMZAH11..CHI¥8,600202401-202501

main88703-76070iKMA10¥9,300202303-202404

sub88703-76071¥8,400

main88703-76071iKMA10¥8,400202405-202512

88703CRING, O(FOR DISCHARGE HOSE)

main90099-14120iKMA10¥0202207-202405

ID=10.8,OD=15.6

88704HOSE SUB-ASSY, SUCTION

main88704-12A90iMZAA10¥9,900202207

main88704-76020iMZAH11..CHI¥8,700202207-202501

main88704-76040iKMA10¥10,600202303-202512

88704BRING, O(FOR SUCTION HOSE)

main90099-14121iMZAH11..CHI202207-202512

ID=13.4,OD=18.2

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-12C10iMZAA10..EUR202207

main88710-12C30iMZAA10..RHD202207

main88710-76150iKMA10..LHD..GEN202401-202512

UKRAINE SPEC

main88710-76150iKMA10..LHD..GEN202303-202401

main88710-76160iKMA10..LHD..EUR202303-202512

main88710-76170iMZAH10,15..RHD..EUR¥14,100202207

main88710-76180iMZAH10,15..RHD..(ARL,GEN)202207

main88710-76190iMZAH10,15..LHD..EUR202207

main88710-76200iMZAH10,15..LHD..EUR202207

DESTINATION PACKAGE(ERP)&RUSSIA SPEC

main88710-76200iMZAH10,15..LHD..(CHI,GCC,GEN)202207

DESTINATION PACKAGE(ERP)&MOROCCO SPEC

main88710-76200iMZAH10,15..LHD..(CHI,GCC,GEN)202207

DESTINATION PACKAGE(ERP)&UKRAINE SPEC

main88710-76200iMZAH10,15..LHD..(CHI,GCC,GEN)202207

DESTINATION PACKAGE(ERP)&DEST.PACKAGE (EXC/ERP.)-KAZAKHSTAN SPEC

main88710-76200iMZAH10,15..LHD..(CHI,GCC,GEN)202207

DESTINATION PACKAGE(ERP)-GEORGIA,AZERBAIJAN SPEC

main88710-76200iMZAH11..CHI202401-202501

main88710-76200iMZAH11,16..LHD..(GCC,GEN)202401

MOROCCO SPEC

main88710-76200iMZAH11,16..LHD..(GCC,GEN)202401

UKRAINE SPEC

main88710-76200iMZAH11,16..LHD..(GCC,GEN)202401

GEORGIA,AZERBAIJAN SPEC

main88710-76240iMZAA10..LHD..(GCC,GEN)202207

DESTINATION PACKAGE(ERP)&RUSSIA SPEC

main88710-76240iMZAA10..EUR202207

DESTINATION PACKAGE(ERP)&UKRAINE SPEC

main88710-76240iMZAA10..EUR202207

DESTINATION PACKAGE(ERP)&DEST.PACKAGE (EXC/ERP.)-KAZAKHSTAN SPEC

main88710-76270iKMA10..RHD..(ARL,EUR)¥30,200202303-202512

main88710-76280iKMA10..RHD..GEN202303-202512

88710GTUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2

main88710-10230iKMA10¥5,400202303-202512

main88710-12A00iMZAA10..EUR202207

main88710-76140iMZAA10..LHD..(GCC,GEN)202207

DESTINATION PACKAGE(ERP)&RUSSIA SPEC

main88710-76140iMZAA10..LHD..(GCC,GEN)202207

DESTINATION PACKAGE(ERP)&UKRAINE SPEC

main88710-76140iMZAA10..LHD..(GCC,GEN)202207

DESTINATION PACKAGE(ERP)&DEST.PACKAGE (EXC/ERP.)-KAZAKHSTAN SPEC

88710NRING, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)

main90099-14119iMZAH11..CHI202207-202501

ID=6.7,OD=10.3

88710RRING, O, NO.1(FOR TUBE & ACCESSORY ASSY, A/C, NO.2)

main90099-14119iMZAA10..LHD202207

ID=6.7,OD=10.3

88710SRING, O, NO.2(FOR TUBE & ACCESSORY ASSY, A/C, NO.2)

main90099-14121iMZAA10..LHD202207

ID=13.4,OD=18.2

88718LCLAMP, PIPING

main88718-52280iMZAH11..CHI¥0202207-202501

88718MCLAMP, PIPING

main88718-47110iMZAH11..CHI202207-202512

88718NCLAMP, PIPING

main88718-1E150iKMA10¥0202207-202512

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-11010iKMA10202207-202512

9010506347

main90105-06347¥60

9010506348

main90105-06348¥60

9010506349

main90105-06349¥60

25 parts on this diagram · 9 diagrams in section
