HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1HEATER CONTROL PANEL 0002 1HEATER CONTROL PANEL 0003 1AIR DUCT 0004 1AIR DUCT 0005 1AIR DUCT 0006 1AIR DUCT 0007 1SENSOR 0008 1SENSOR

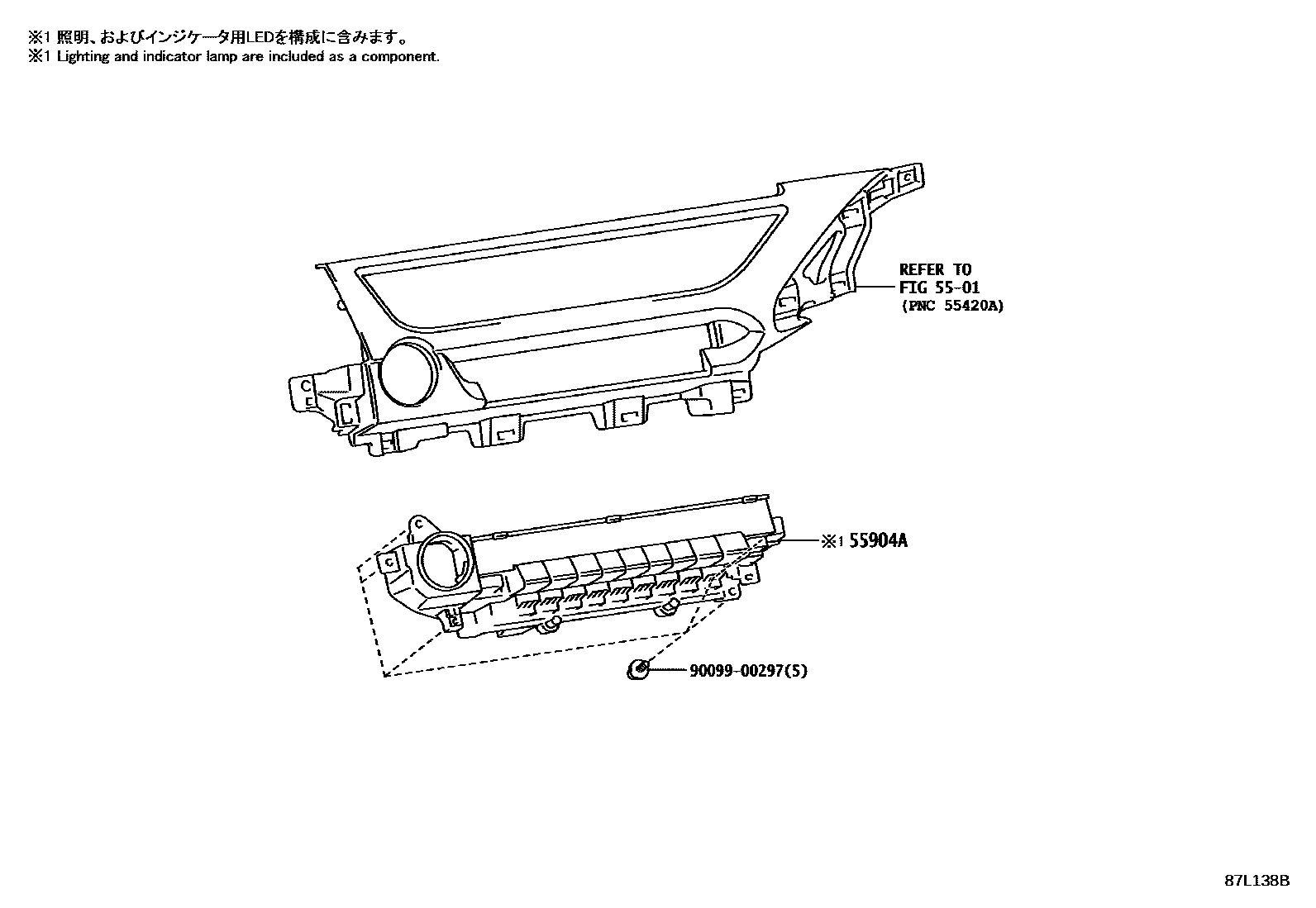

5501

55904AHOUSING SUB-ASSY, HEATER CONTROL

main55904-76010iMZAA10,MZAH10,15..LHD202207-202401

main55904-76020iMZAA10,MZAH10,15..RHD202207-202401

main55904-76030iMZAH11..CHI202401-202512

main55904-76040iMZAH11,16..RHD202401-202512

9009900297

main90099-00297

3 parts on this diagram · 8 diagrams in section
