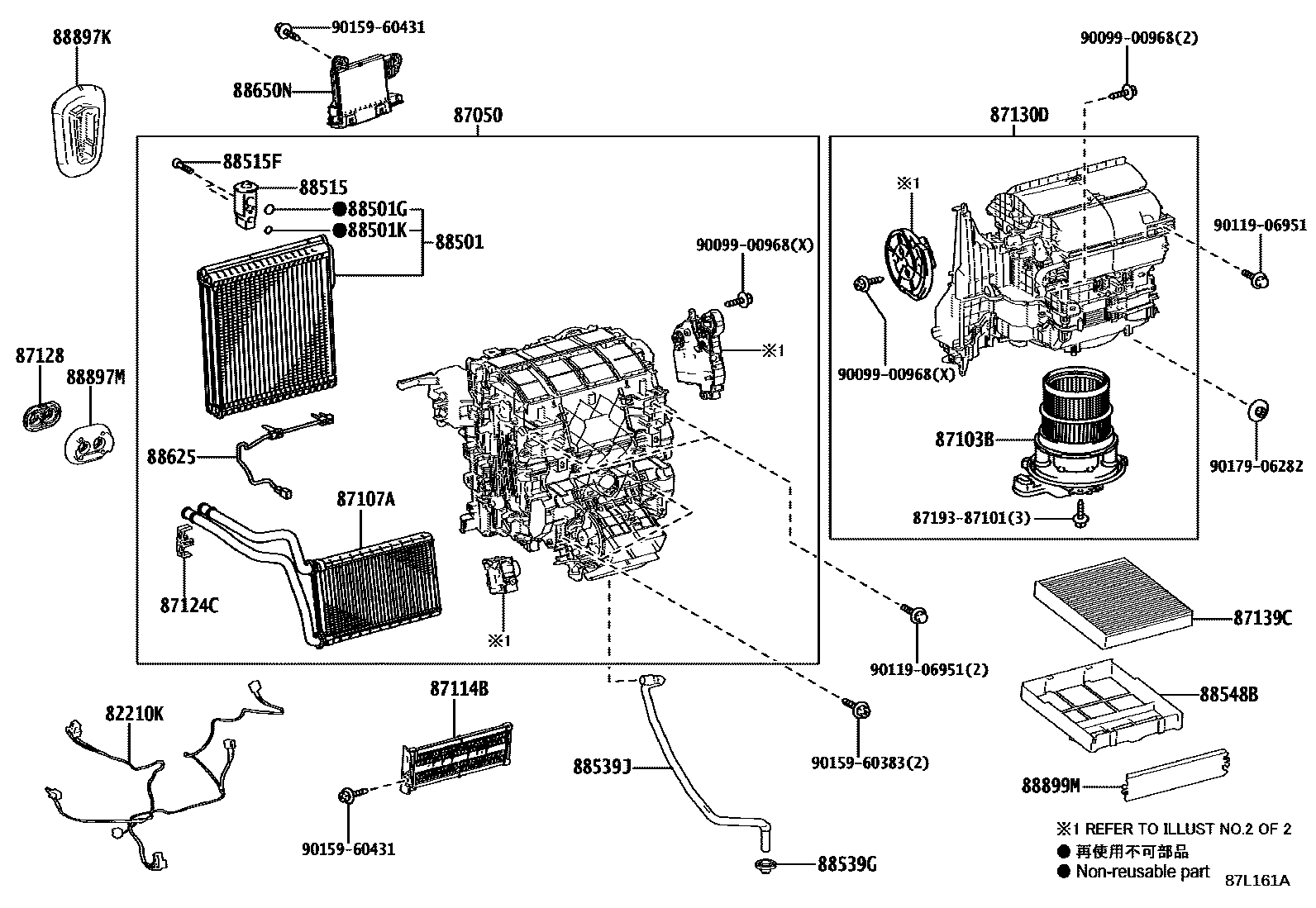

HEATING & AIR CONDITIONING - COOLER UNIT
82210KHARNESS ASSY, AIR CONDITIONER
87050RADIATOR ASSY, AIR CONDITIONER
UKRAINE SPEC
EXHAUST EMISSION CONTROL-EURO 5
EXHAUST EMISSION CONTROL-EURO 5
EXHAUST EMISSION CONTROL-EURO 5
87103BMOTOR SUB-ASSY, BLOWER W/FAN
87107AUNIT SUB-ASSY, HEATER RADIATOR
87114BCOVER, HEATER
87124CCLAMP, HEATER
87128GROMMET, HEATER
87130DBLOWER ASSY
87139CFILTER, CLEAN AIR
DEODORANT FILTER
DEODORANT FILTER
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
EXHAUST EMISSION CONTROL-EURO 5
UKRAINE SPEC
DESTINATION PACKAGE(ERP)&RUSSIA SPEC
88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)
ID=13.4,OD=18.2
88501KO-RING, COOLER EVAPORATOR NO.1(LIQUID)
ID=10.8,OD=15.6
88515VALVE, COOLER EXPANSION
UKRAINE SPEC
DESTINATION PACKAGE(ERP)&RUSSIA SPEC
DESTINATION PACKAGE(ERP)&RUSSIA SPEC
88515FBOLT(FOR COOLER EXPANSION VALVE)
88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)
88539JHOSE, DRAIN COOLER
88548BCASE, AIR FILTER
88625THERMISTOR, COOLER, NO.1
88650NAMPLIFIER ASSY, AIR CONDITIONER
SEAT HEATER-WITH(FRONT SEAT)
SEAT HEATER-WITHOUT&FRONT SEAT ADJUSTER-*DRP(6WAY MANUAL)
F SPORT&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER)
LUXURY PACKAGE&ANTI-BACTERIA & MINUS ION SUPPLY-WITH&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)
88897KGROMMET, (FOR COOLER PIPE)
88897MGROMMET (FOR HEATER PIPE)
88899MPLATE, COVER(FOR AIR FILTER)
8719387101
main87193-87101
9009900968
main90099-00968
9011906951
main90119-06951
9015960383
main90159-60383
9015960431
main90159-60431
9017906282
main90179-06282
28 parts on this diagram · 8 diagrams in section
