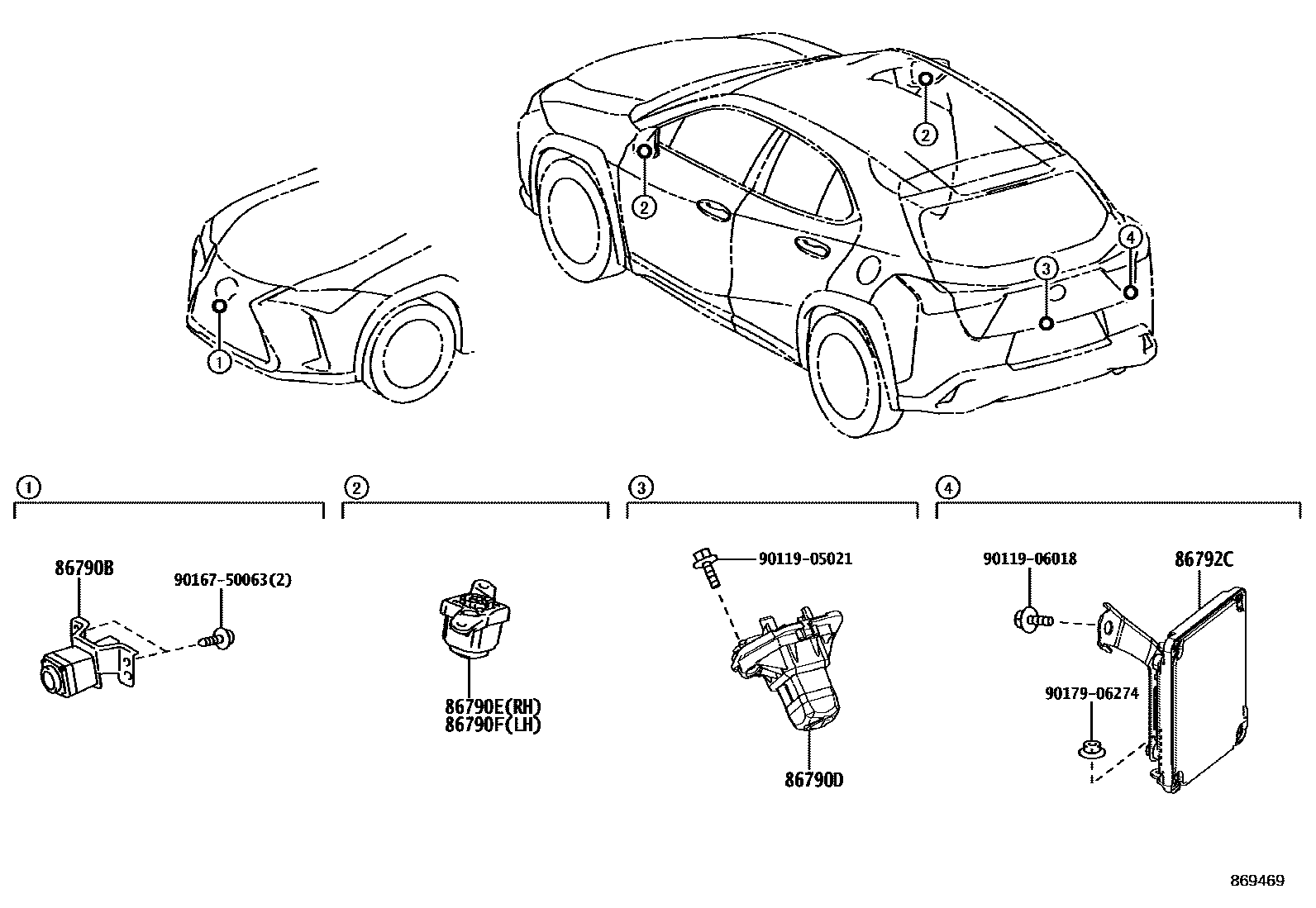

CAMERA & REAR MONITOR DISPLAY

0001 1 0002 1

86790BCAMERA ASSY, TELEVISION, FR

86790DCAMERA ASSY, TELEVISION, RR

main867B0-76120iMZAA10,MZAH1#..ARL¥29,200202207-202302

BACK MONITOR-WITH(GUIDE)

sub867B0-76121¥29,200

main867B0-76121iKMA10..ARL;KMA10..LHD..GEN¥29,200202302-202401

BACK MONITOR-WITH(GUIDE)

main867B0-76130iKMA10¥26,500202401-202512

main867B0-76130iMZAH11..RHD;MZAH16..ARL,EUR;MZAH11..LHD..EUR¥26,500202401

BACK MONITOR-WITH(GUIDE)

86790ECAMERA ASSY, TELEVISION, SIDE RH

86790FCAMERA ASSY, TELEVISION, SIDE LH

86792CCOMPUTER, PARKING ASSIST

9011905021

main90119-05021¥60

9011906018

main90119-06018¥170

9016750063

main90167-50063¥60

9017906274

main90179-06274¥70

9 parts on this diagram · 2 diagrams in section
