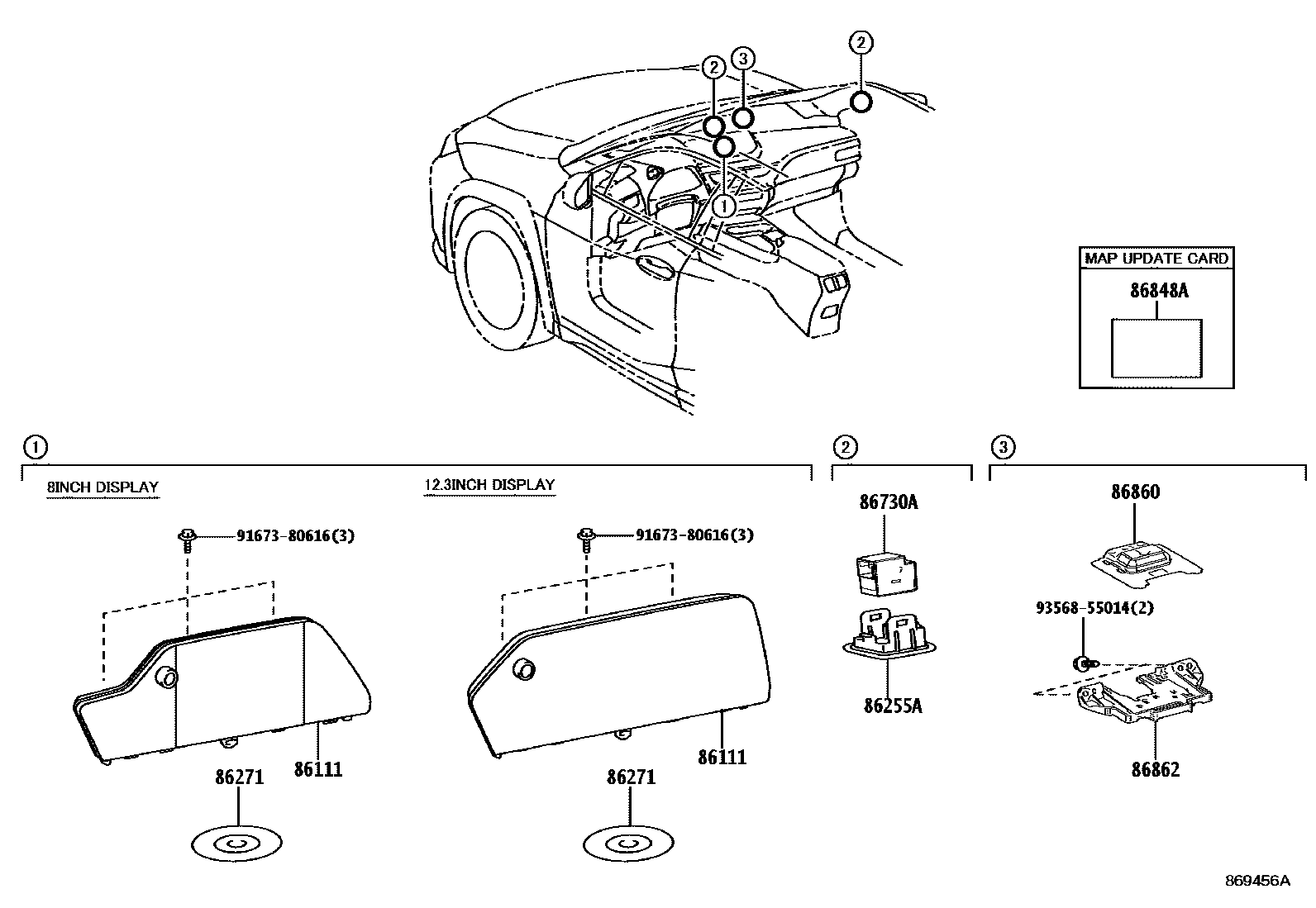

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1

86111MULTI-DISPLAY

main86110-76380supersedes 86110-76280iMZAA10,MZAH10,15..ARL202207

DENSO TEN,AUDIO-EMV & 10SPEAKER

main86110-76450iKMA10..ARL202303-202401

DENSO TEN

main86110-76530supersedes 86110-76280iMZAH11..RHD..GEN202401

DENSO TEN

main86110-76550supersedes 86110-76320iMZAH11..CHI202401-202501

DENSO TEN

main86110-76360iMZAA10,MZAH10..GCC202207

DENSO TEN,AUDIO-*DA & 13SPEAKER

main86110-76370supersedes 86110-76340iMZAA10,MZAH10,15..LHD..EUR202207

DENSO TEN,AUDIO-*DA & 13SPEAKER

main86110-76390iMZAH10..RHD..GEN202207

DENSO TEN,SOUTH AFRICA SPEC&AUDIO-EMV & 10SPEAKER

main86110-76440supersedes 86110-76340iMZAA10,MZAH10,15..LHD..EUR202207

DENSO TEN,AUDIO-EMV & 10SPEAKER

main86110-76460supersedes 86110-76290iMZAH10,15..RHD..EUR202207

DENSO TEN,SOUTH AFRICA SPEC&AUDIO-EMV & 13SPEAKER

main86110-76490supersedes 86110-76320iMZAH10..CHI202207

DENSO TEN,AUDIO-*DA & 13SPEAKER

main86110-76510supersedes 86110-76340iMZAA10,MZAH10,15..LHD..EUR202207

DENSO TEN,AUDIO-EMV & 13SPEAKER

main86110-76540supersedes 86110-76250iMZAH11..RHD..GEN202401

DENSO TEN,SOUTH AFRICA SPEC&AUDIO-EMV & 10SPEAKER

main86110-76570supersedes 86110-76520iMZAH11,16..LHD..EUR202401

DENSO TEN,AUDIO-EMV & 10SPEAKER

86255ACASE, MICROPHONE, NO.1

main86255-76010-A0×2iKMA10202401

WHITE,TRIM00,02

main86255-76010-C0×2iKMA10202401

BLACK,TRIM01,1#,2#,3#,4#

86271DISC, DISC PLAYER

main86807-78040iMZAA10,MZAH10,15..ARL202207

main86807-0W230iMZAH10..CHI202207-202307

MAP DISC(DOP)-WITH(FOR CHINA)

main86807-78010iMZAH15..RHD..GEN202207

DEST.PACKAGE (EXC/ERP.)-SINGAPORE SPEC&AUDIO-EMV & 10SPEAKER

main86807-78020iKMA10..LHD..GEN202303-202401

LUXURY PACKAGE&AUDIO-EMV & 13SPEAKER

main86807-78030iMZAA10,MZAH10..GCC202207

QATAR SPEC&AUDIO-EMV & 13SPEAKER

main86807-78050iMZAH11..RHD..GEN202401

HONG KONG SPEC&AUDIO-EMV & 13SPEAKER

main86807-78060iMZAH11..RHD..GEN202401

SOUTH AFRICA SPEC&AUDIO-EMV & 10SPEAKER

main86807-78070iMZAH16..GEN202401

PERU SPEC&AUDIO-EMV & 10SPEAKER

main86807-78090iMZAH15..LHD..GEN202207

ARGENTINA SPEC&AUDIO-EMV & 13SPEAKER

86730AMICROPHONE ASSY, TELEPHONE

main86730-78010×2iMZAH11,16..ARL,EUR,GCC,GEN202401

86848ACARD, SERIAL NUMBER MAP UPDATE

main86848-78030iKMA10,MZAH11,16..ARL202410

main86848-78020iMZAH11..RHD..GEN202410

HONG KONG SPEC&AUDIO-EMV & 13SPEAKER

main86848-78050iMZAH11..GCC202410

AUDIO-EMV & 10SPEAKER

main86848-78060iMZAH11,16..LHD..GEN202410

ARGENTINA SPEC&AUDIO-EMV & 13SPEAKER

main86848-78070iMZAH16..GEN202410

PERU SPEC&AUDIO-EMV & 10SPEAKER

main86848-78080iKMA10..RHD..GEN202410

LUXURY PACKAGE&AUDIO-EMV & 13SPEAKER

main86848-78090iMZAH11..RHD..GEN202410

SOUTH AFRICA SPEC&AUDIO-EMV & 10SPEAKER

86860ANTENNA ASSY, NAVIGATION

main86860-78010iKMA10..LHD..EUR202207-202401

DESTINATION PACKAGE(ERP)&UKRAINE SPEC

main86880-42010iKMA10..ARL,EUR202401-202512

main86880-42030iMZAH11..CHI202401-202501

main86880-52020iMZAA10,MZAH10,15..ARL,CHI,EUR202207

DATA COMMUNICATION MODULE-WITH

86862BRACKET, NAVIGATION ANTENNA

main86862-42010iKMA10202207-202401

9167380616

main91673-80616

9356855014

main93568-55014

9 parts on this diagram · 2 diagrams in section
