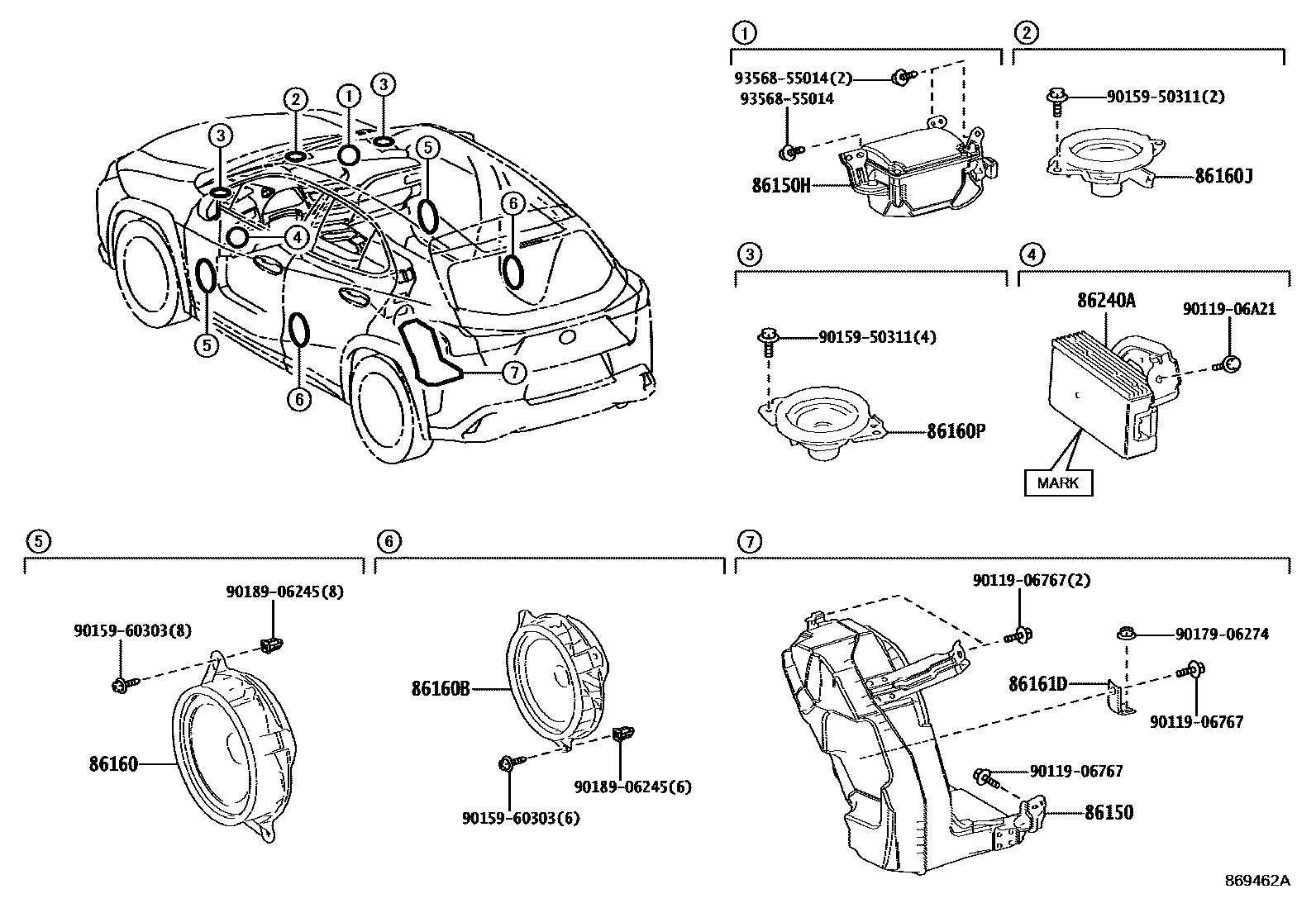

SPEAKER

0001 1 0002 1 0003 1 0004 1

86150SPEAKER ASSY, W/BOX, NO.1

main86150-0W410iKMA10..GEN202303-202401

LUXURY PACKAGE

main86150-76030iMZAH11,16..ARL202401

AUDIO-EMV & 10SPEAKER

main86150-0W630iMZAA10,MZAH10,15..ARL,EUR,GCC,GEN202207

AUDIO-*DA & 13SPEAKER

86150HSPEAKER ASSY, W/BRACKET

main86150-76060iKMA10..LHD202303-202401

main86150-76070iKMA10..RHD202303-202401

main86150-76020iMZAH11..CHI202401-202501

F SPORT

main86150-76050iMZAH11,16..RHD..(ARL,GEN)202401

F SPORT

86160SPEAKER ASSY, FRONT NO.1

main86160-0WS30×2supersedes 86160-76160iKMA10..ARL202303-202401

LUXURY PACKAGE

main86160-76160×2iKMA10..EUR,GEN;MZAA10,MZAH10,15202207

86160BSPEAKER ASSY, REAR

main86150-0W640×2supersedes 86160-30F40iKMA10..ARL202303-202401

LUXURY PACKAGE

main86160-30F40×2iKMA10..EUR,GEN;MZAA10,MZAH10,15202207

86160JSPEAKER ASSY, FRONT NO.3

main86160-30F20supersedes 86160-76150iMZAH11,16..ARL202401

AUDIO-EMV & 10SPEAKER

main86160-76150×2iKMA10..EUR,GEN202401-202512

main86160-78090supersedes 86160-76150iKMA10..ARL202303-202401

LUXURY PACKAGE

86160PSPEAKER ASSY, FRONT NO.2

main86160-30F30×2supersedes 86160-30F30iMZAH11,16..ARL202401

AUDIO-EMV & 10SPEAKER

main86160-76150×2iKMA10,MZAA10,MZAH10,15..CHI,EUR,GCC,GEN202207

main86160-78090×2iKMA10..ARL202303-202401

LUXURY PACKAGE

86161DBRACKET, SPEAKER MOUNTING, NO.1

main86161-76030iKMA10..EUR;MZAH11,16..LHD..GEN202401-202512

LUXURY PACKAGE

86240AEQUALIZER ASSY,STEREO COMPONENT

main86240-76091iKMA10..LHD202303-202401

main86240-76100iKMA10..RHD202303-202401

main86240-76140iKMA10..LHD202401-202512

main86240-76150iKMA10..RHD202401-202512

main86240-76010iMZAA10..RHD202207

F SPORT

main86240-76020iMZAH10..RHD..EUR202207

F SPORT,MARK = 86240-76020

main86240-76030iMZAA10..EUR202207

F SPORT

main86240-76040iMZAH10..LHD..(CHI,GCC,GEN)202207

ACTIVE SOUND CONTROL-WITH,MARK = 86240-76040

main86240-76060iMZAH15..RHD..(ARL,GEN)202207-202309

F SPORT,MARK = 86240-76060

main86240-76070iMZAH11,16..RHD..(ARL,GEN)202401

F SPORT

main86240-76080iMZAH15..LHD..GEN202207-202309

ACTIVE SOUND CONTROL-WITH,MARK = 86240-76080

main86240-76120iMZAH11,16..LHD..(GCC,GEN)202401

F SPORT

9011906767

main90119-06767

9011906A21

main90119-06A21

9015950311

main90159-50311

9015960303

main90159-60303

9017906274

main90179-06274

9018906245

main90189-06245

9356855014

main93568-55014

15 parts on this diagram · 4 diagrams in section
