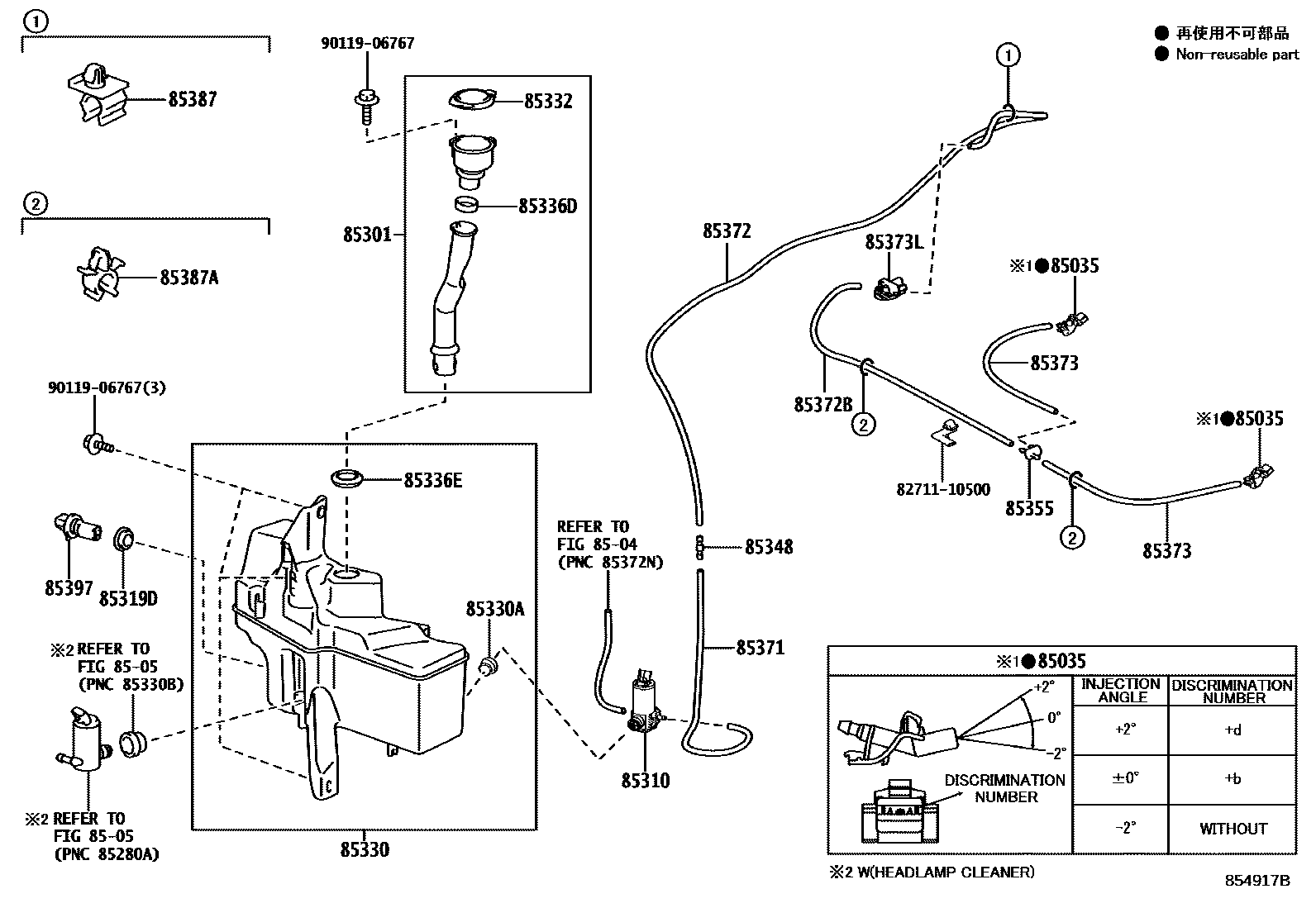

WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-30220×2iKMA10202401-202512

ANGLE 0

sub85381-0K070

main85381-30230×2iKMA10202207-202401

ANGLE -2

sub85381-0K080

main85381-30240×2iMZAH11,16..ARL,EUR,GCC,GEN202401

ANGLE +2

8504

8505

85301INLET SUB-ASSY, WASHER

main85319-76111iKMA10202207-202401

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-47100iKMA10202207-202401

85319DPACKING, FRONT WASHER

main85319-33230iKMA10202207-202401

85330JAR ASSY, WINDSHIELD WASHER

main85355-76050supersedes 85315-76110iKMA10202303-202401

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iKMA10202207-202401

85332CAP, WINDSHIELD WASHER JAR

main85316-76111iKMA10202207-202401

85336DPACKING, WINDSHIELD WASHER JAR

main85336-42320iKMA10202207-202401

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-30160iKMA10202207-202401

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iKMA10202207-202401

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020iMZAA10,MZAH10,15202207

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080supersedes 90099-33080iKMA10202207-202401

L=1450(*H,L=490)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iKMA10202207-202401

L=1450(*H,L=1300)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080iKMA10202207-202401

L=1450(*H,L=700)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2iKMA10202207-202401

L=1450(*H,L=360)

85373LGROMMET, WASHER

main85373-12050iKMA10202207-202401

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85371-32020iKMA10202207-202401

85387ACLAMP, WASHER, NO.2

main90469-07011×2iKMA10202207-202401

85397SWITCH ASSY,LEVEL WARNING

main85397-30400iKMA10202207-202401

8271110500WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-10500

9011906767

main90119-06767

23 parts on this diagram · 1 diagram in section
