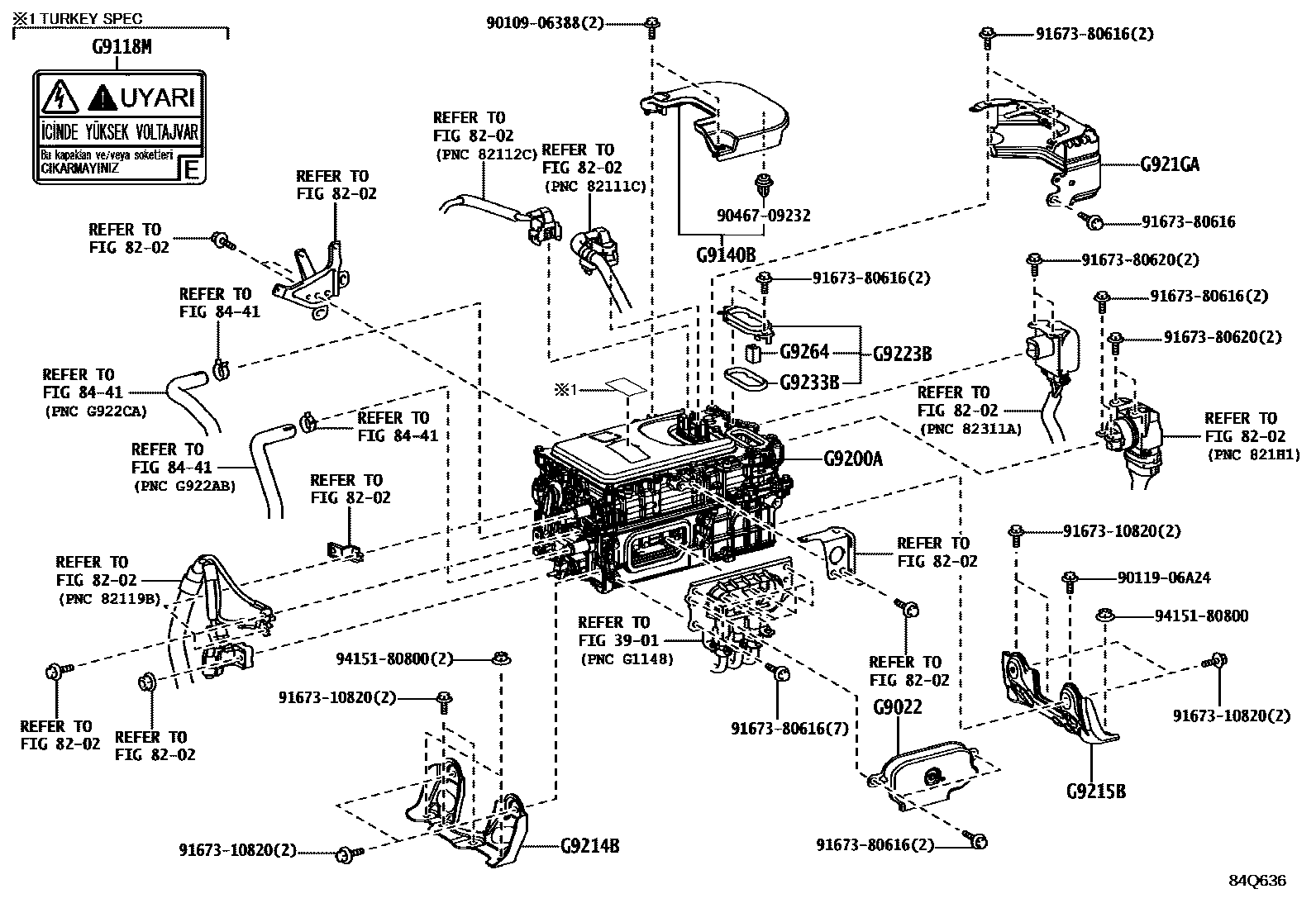

INVERTER(BEV OR FCEV)

3901

8202

8441

G9022COVER SUB-ASSY, INVERTER, UPPER

mainG902210010iKMA10202303-202512

G9118MLABEL, UNIT CONTROLLER CAUTION, NO.1

G9140BCOVER ASSY, INVERTER

mainG914076020iKMA10202303-202512

G9200AINVERTER ASSY, W/CONVERTER

mainG92A076080iKMA10202303-202401

mainG92A076090iKMA10202401-202512

G9214BBRACKET, INVERTER, NO.1

mainG921410010iKMA10202303-202512

G9215BBRACKET, INVERTER, NO.2

mainG921510010iKMA10202303-202512

G921GAPROTECTOR, INVERTER

mainG921G10010iKMA10202303-202512

G9223BCOVER, INVERTER TERMINAL

mainG922310010iKMA10202303-202512

G9233BGASKET, INVERTER COVER

mainG923310010iKMA10202303-202512

G9264CONNECTOR, INVERTER SIGNAL

mainG926410010iKMA10202303-202512

9010906388

main90109-06388

9011906A24

main90119-06A24

9046709232

main90467-09232

9167310820

main91673-10820

9167380616

main91673-80616

9167380620

main91673-80620

9415180800

main94151-80800

20 parts on this diagram · 1 diagram in section
