INVERTER COOLING

0001 1 0002 1

1603

16475CAP, RESERVE TANK

main16475-28140iM20AFXS..MZAH11..CHI202207-202501

3914

8431

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904028020iMZAH10,15202207

subG9040-48060

mainG904047020iMZAH11,16..ARL,EUR,GCC,GEN202401-202501

G90A0AHOSE ASSY, INVERTER COOLING, NO.1

mainG90A076020iMZAH10,15202311

mainG90A076030iMZAH1#202207-202311

G910GBTANK SUB-ASSY, INVERTER RESERVE W/O CAP

mainG910G76030iMZAH10,15202207-202501

G922AAHOSE, INVERTER COOLING INLET, NO.1

mainG922A16020iMZAH11..CHI202401-202501

mainG922A76010iMZAH10,15202311

mainG922A76030iMZAH1#202207-202311

G922EHOSE, HYBRID WATER PUMP INLET

mainG922E16010iMZAH11..CHI202401-202501

mainG922E76010iMZAH10,15202207

G922FHOSE, HYBRID WATER PUMP OUTLET, NO.1

mainG922F76010iMZAH10,15202207

G922HHOSE, HYBRID RADIATOR INLET

mainG922H76010iMZAH10,15202207

mainG922H76020iMZAH11,16..ARL,EUR,GCC,GEN202401-202501

1658125160CLAMP, HOSE(FOR WATER HOSE)

main16581-25160

1658136050CLAMP, HOSE(FOR WATER HOSE)

main16581-36050

9011906A11

main90119-06A11

9155180625

main91551-80625

9613842501

main96138-42501

9613842701

main96138-42701

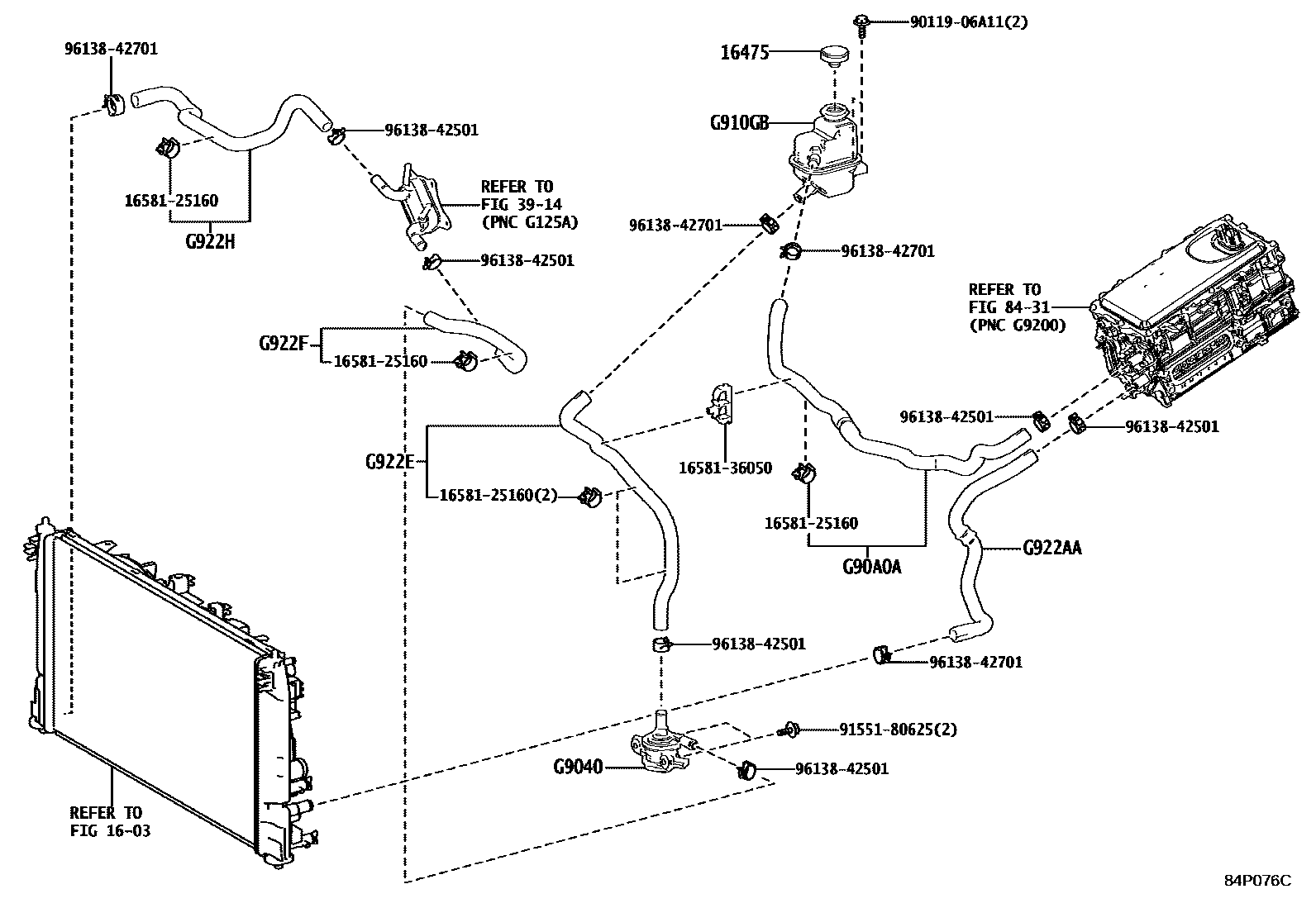

17 parts on this diagram · 2 diagrams in section
