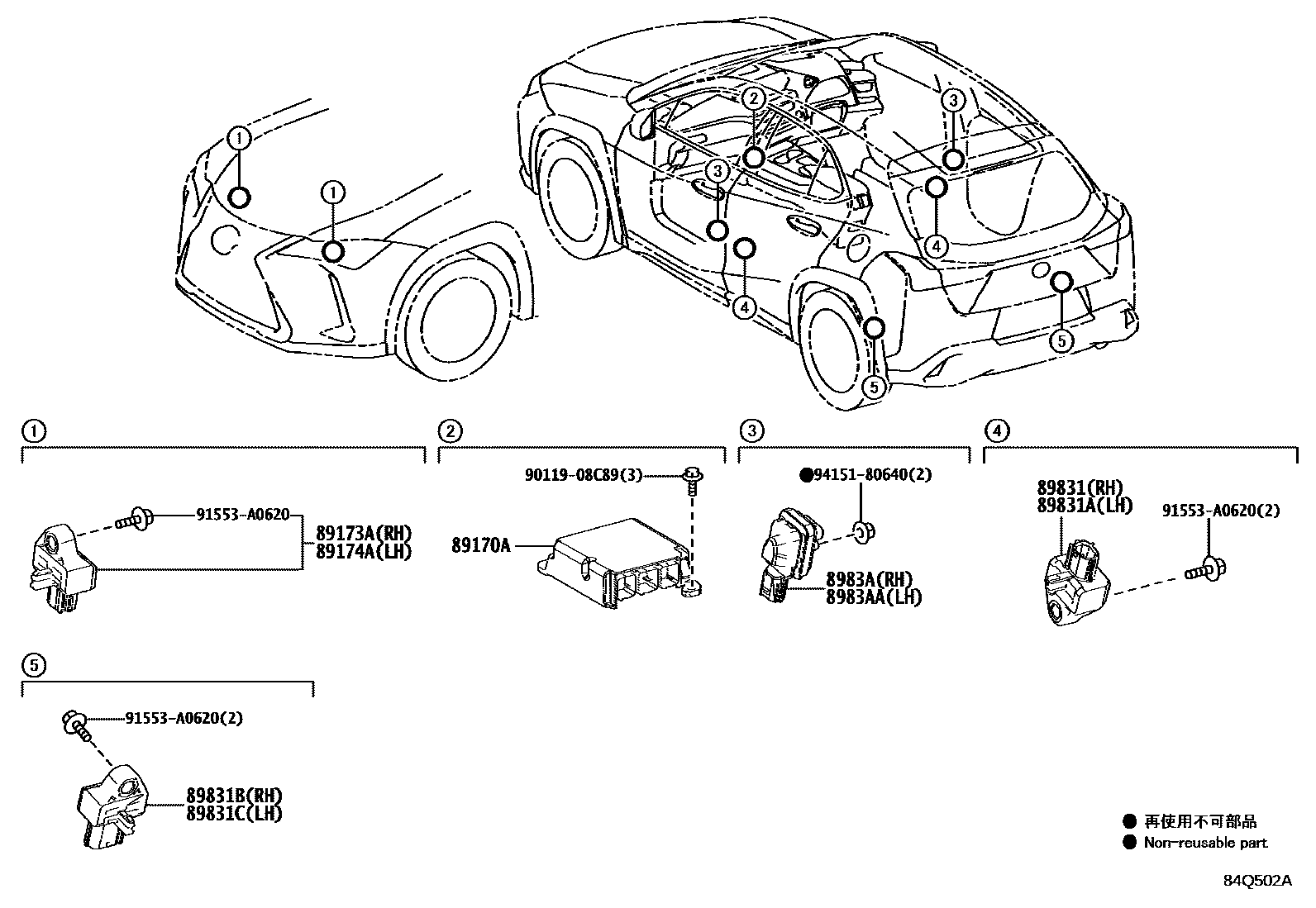

AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-76590iMZAH10,15..LHD..(GCC,GEN)202207

main89170-76600iMZAH10,15..RHD..(ARL,GEN)202207

main89170-76610iMZAH10,15..LHD..EUR202207

main89170-76620iMZAH10,15..RHD..EUR202207

SOUTH AFRICA SPEC

main89170-76640iMZAA10..LHD..(GCC,GEN)202207

main89170-76650iMZAA10..RHD202207

main89170-76660iMZAA10..EUR202207

main89170-76760iKMA10..LHD..EUR202303-202401

main89170-76770iKMA10..RHD..(ARL,GEN)202303-202401

main89170-76780iKMA10..RHD..EUR202303-202401

main89170-76790iKMA10..LHD..GEN202303-202401

main89170-76800iMZAH10..CHI202207

main89170-76820iKMA10,MZAH11,16..ARL,EUR,GCC,GEN202401

main89170-76840iMZAH11..CHI202401-202501

89173ASENSOR, AIRBAG, FRONT RH

main89173-49505iKMA10202207-202401

main89173-59335iMZAH11..CHI202401-202501

89174ASENSOR, AIRBAG, FRONT LH

main89173-49505iKMA10202207-202401

main89173-59335iMZAH11..CHI202401-202501

89831SENSOR, SIDE AIRBAG, RH, NO.1

main89831-42020iMZAH11..CHI202401-202501

main89831-42060iMZAA10,MZAH10,15202207-202401

89831ASENSOR, SIDE AIRBAG, LH, NO.1

main89831-42020iMZAH11..CHI202401-202501

main89831-42060iMZAA10,MZAH10,15202207-202401

89831BSENSOR, SIDE AIRBAG, RH, NO.2

main89831-42050iKMA10202207-202401

89831CSENSOR, SIDE AIRBAG, LH, NO.2

main89831-42050iKMA10202207-202401

8983ASENSOR, SIDE AIRBAG PRESSURE, RH

main8983A-12030iMZAH11..CHI202401-202501

main8983A-52011iKMA10202207-202401

8983AASENSOR, SIDE AIRBAG PRESSURE, LH

main8983A-12030iKMA10,MZAH11,16..ARL,EUR,GCC,GEN202401-202501

main8983A-52011iKMA10202207-202401

9011908C89

main90119-08C89

91553A0620

main91553-A0620

9415180640

main94151-80640

12 parts on this diagram · 1 diagram in section
