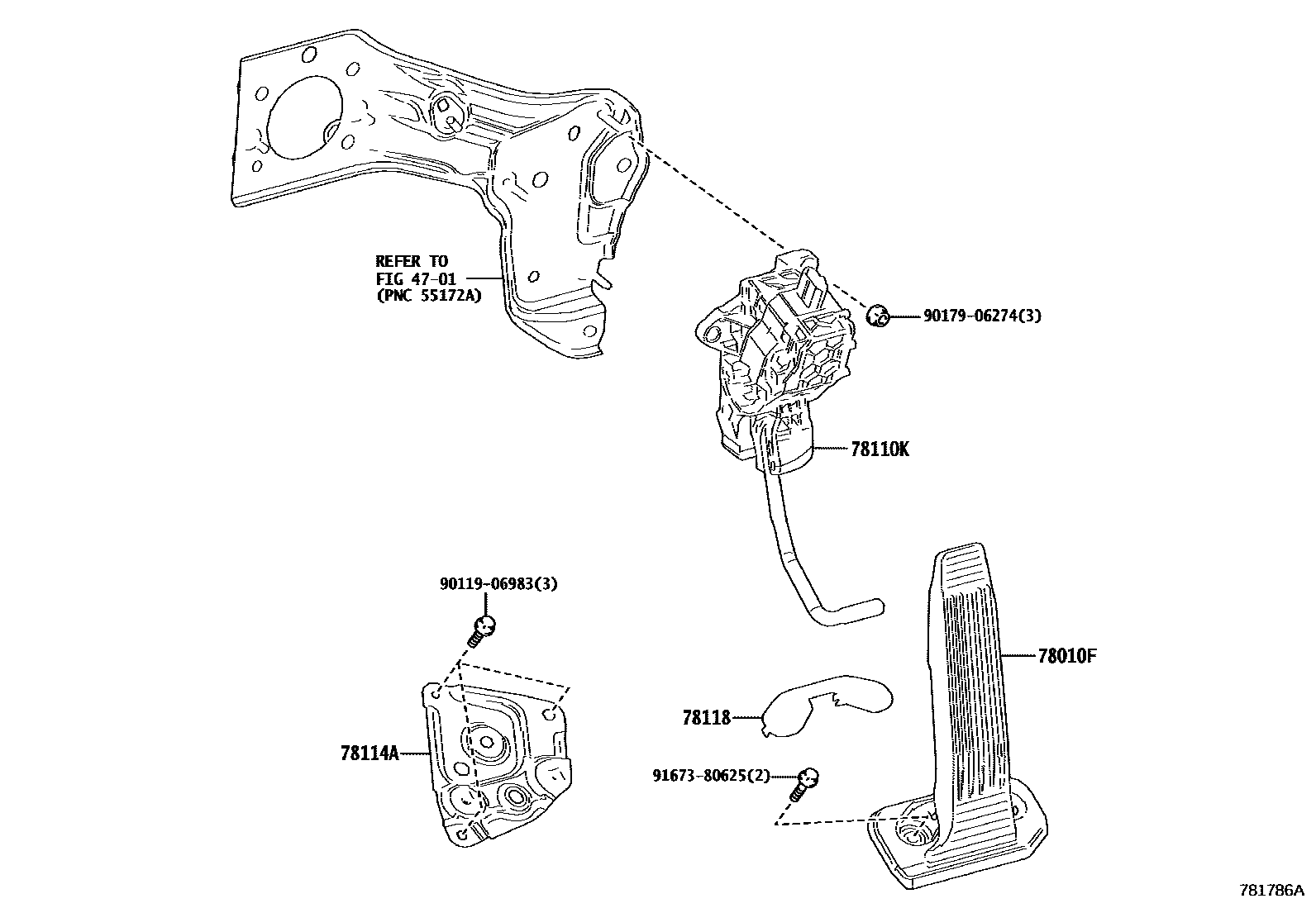

ACCELERATOR LINK

0001 1 0002 1

4701

78010FPEDAL ASSY, ACCELERATOR

main78101-50050iKMA10..LHD202207-202512

main78101-76030iMZAH11,16..RHD202207-202512

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-76051iMZAH11..CHI202207-202512

main78110-76131iMZAH11,16..LHD..EUR202207

main78110-76141iMZAH11,16..RHD..(ARL,GEN)202207-202512

main78110-76151iMZAA10..RHD;MZAH1#..RHD..EUR202207

78114ABRACKET, ACCELERATOR PEDAL SUPPORT

main78114-76010iMZAH11,16..LHD..(EUR,GCC,GEN)202207-202512

main78114-76020iMZAH11,16..RHD202207-202512

78118PAD, ACCELERATOR PEDAL

main78117-11010iKMA10..LHD202207-202512

main78117-76010iKMA10..RHD202207-202512

9011906983

main90119-06983

9017906274

main90179-06274

9167380625

main91673-80625

8 parts on this diagram · 2 diagrams in section
