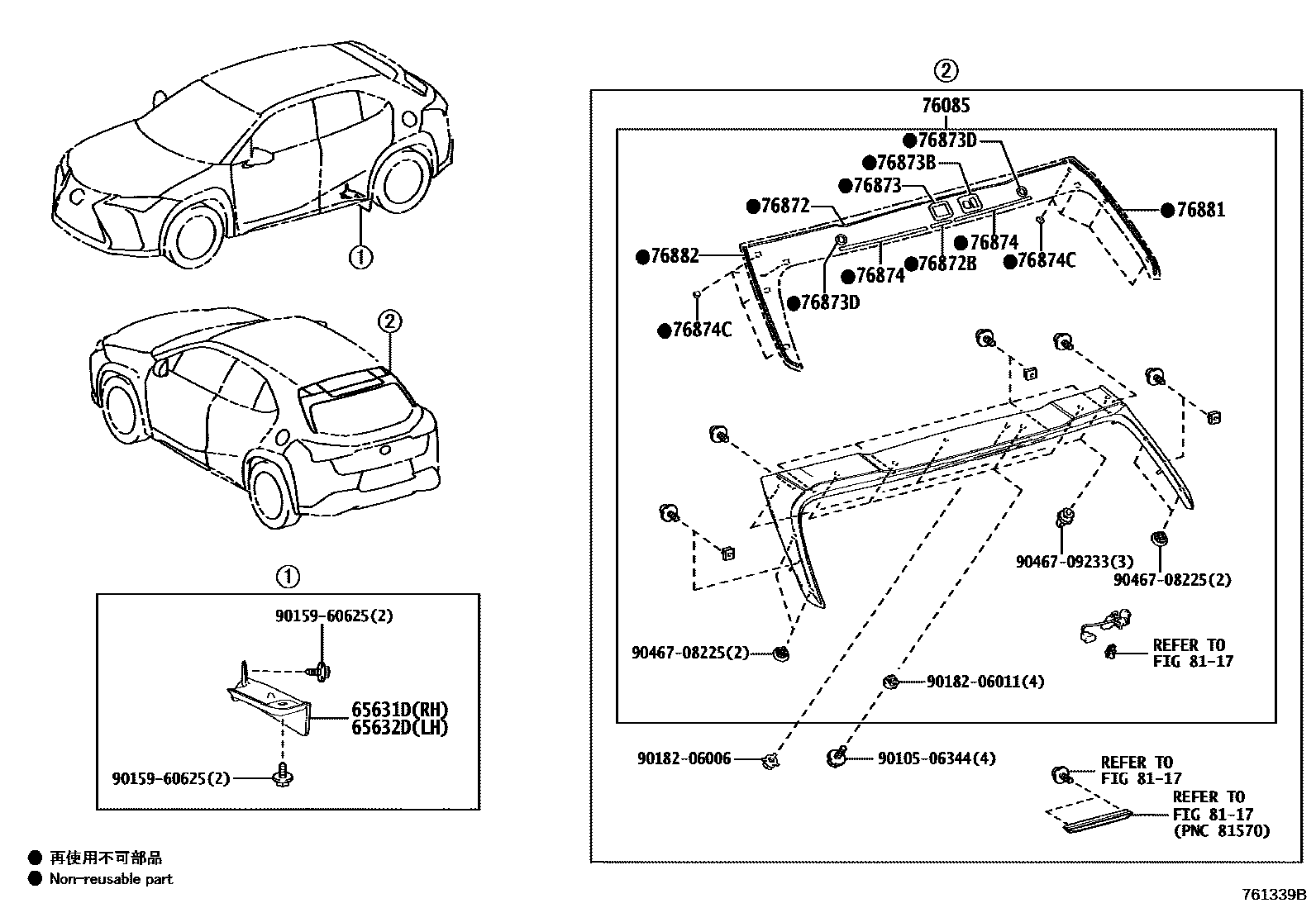

MUDGUARD & SPOILER

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-76020iKMA10202207-202512

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-76020iKMA10202207-202512

76085SPOILER SUB-ASSY, REAR

main76085-76906iKMA10202207-202512

NO PAINT REQ.

76872PROTECTOR, REAR SPOILER, NO.1

main76872-76030iKMA10202207-202512

76872BPROTECTOR, REAR SPOILER, CENTER

main76874-76040iKMA10202207-202512

76873PROTECTOR, REAR SPOILER, NO.2

main76873-76020iKMA10202207-202512

76873BPROTECTOR, REAR SPOILER, NO.2

main76873-76030iKMA10202207-202512

76873DPROTECTOR, REAR SPOILER, NO.2

main76873-76040iKMA10202207-202512

76874PROTECTOR, REAR SPOILER, NO.3

main76874-76020iKMA10202207-202512

76874CPROTECTOR, REAR SPOILER, NO.3

main76874-76030iKMA10202207-202512

76881PROTECTOR, REAR SPOILER SIDE, NO.1 RH

main76881-76020iKMA10202207-202512

76882PROTECTOR, REAR SPOILER SIDE, NO.1 LH

main76882-76020iKMA10202207-202512

8117

9010506344

main90105-06344

9015960625

main90159-60625

9018206006

main90182-06006

9018206011

main90182-06011

9046708225

main90467-08225

9046709233

main90467-09233

19 parts on this diagram · 1 diagram in section
