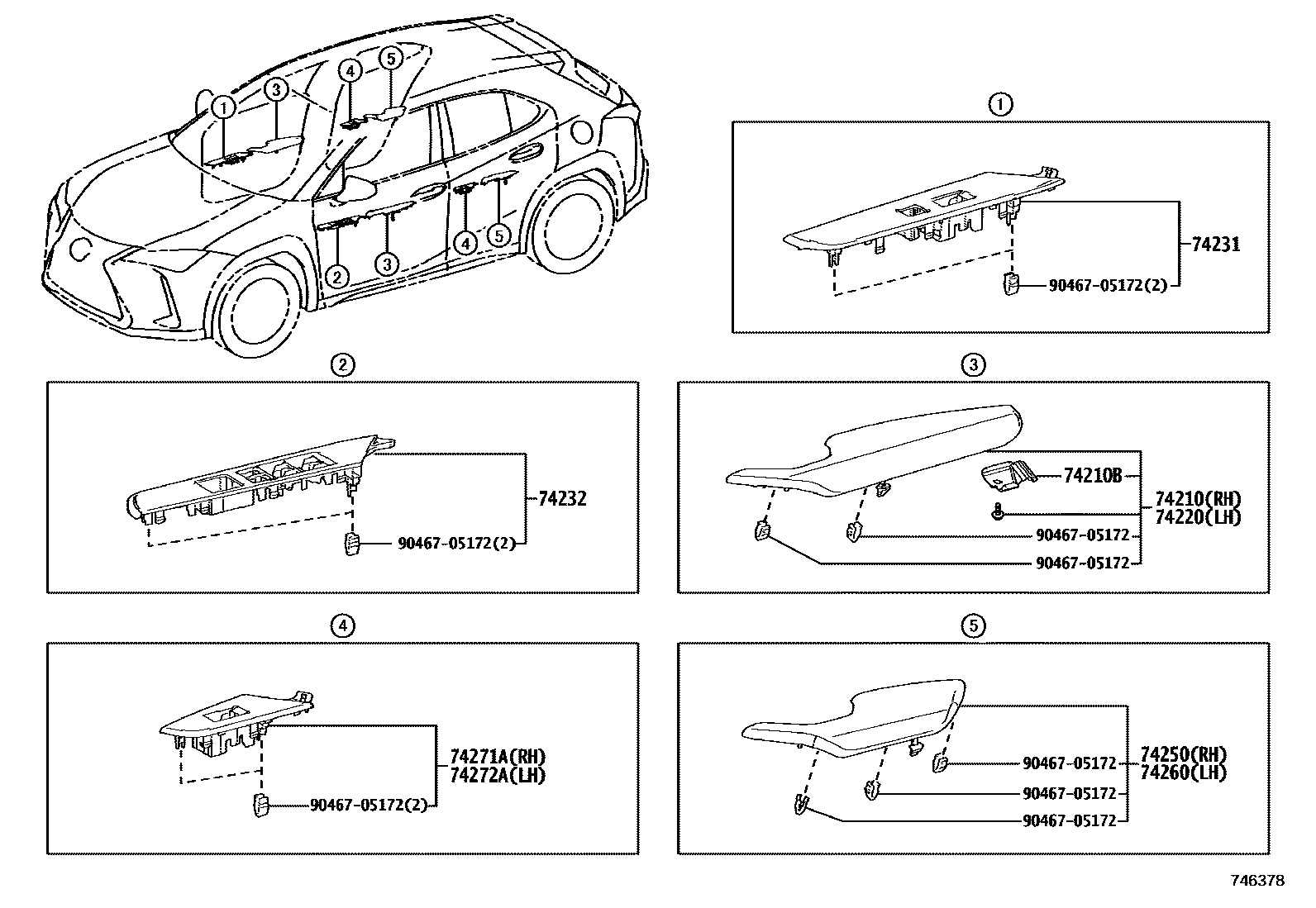

ARMREST & VISOR

0001 1ARMREST 0002 1ARMREST 0003 1VISOR & ASSIST GRIP

74210ARMREST ASSY, FRONT, RH

main74210-76020-A0iKMA10202303-202401

RICH CREAM,TRIM0#

main74210-76020-A3iMZAH11..CHI202401-202501

WHITE,TRIM0#

main74210-76020-A5iKMA10202401-202512

FROMAGE,TRIM0#

main74210-76020-B0iMZAH11,16..ARL,GCC,GEN202401

WHITE ASH,TRIM1#,8#

main74210-76020-C0iMZAA10..GCC;MZAH15..ARL202207

BLACK,TRIM2#

main74210-76020-D1iMZAA10..GCC;MZAH15..ARL202207

RED,TRIM3#

main74210-76020-E2iKMA10..EUR202207-202401

HAZEL,TRIM42

main74210-76020-E3iKMA10..ARL,GEN202207-202401

MAUVE,TRIM43

74210BBRACKET, ARMREST SET

main67645-76010iMZAH11..CHI202401-202501

RH

main67646-76010iMZAH11,16..ARL,EUR,GCC,GEN202401

LH

74220ARMREST ASSY, FRONT, LH

main74220-76020-A0iKMA10202303-202401

RICH CREAM,TRIM0#

main74220-76020-A3iMZAH11,16..ARL,EUR,GCC,GEN202401

WHITE,TRIM01

main74220-76020-A5iKMA10202401-202512

FROMAGE,TRIM0#

main74220-76020-B0iMZAH11,16..ARL,GCC,GEN202401

WHITE ASH,TRIM1#,8#

main74220-76020-C0iMZAH11..CHI202401-202501

BLACK,TRIM2#

main74220-76020-D1iMZAA10..GCC;MZAH15..ARL202207

RED,TRIM3#

main74220-76020-E2iKMA10202401-202512

HAZEL,TRIM4#

main74220-76020-E3iMZAA10..GCC;MZAA10..RHD..GEN202207

MAUVE,TRIM43

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-76050supersedes 74231-76030iMZAA10,MZAH10,15..LHD202207

F SPORT

main74231-76060supersedes 74231-76040iMZAA10,MZAH10,15..RHD202207

F SPORT

main74231-76090supersedes 74231-76070iMZAH11,16..LHD..(EUR,GCC,GEN)202401

F SPORT

main74231-76100supersedes 74231-76080iMZAH11,16..RHD202401

F SPORT

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-76050supersedes 74232-76030iMZAA10,MZAH10,15..LHD202207

F SPORT

main74232-76060supersedes 74232-76040iMZAA10,MZAH10,15..RHD202207

F SPORT

main74232-76090supersedes 74232-76070iMZAH11,16..LHD..(EUR,GCC,GEN)202401

F SPORT

main74232-76100supersedes 74232-76080iMZAH11,16..RHD202401

F SPORT

74250ARMREST ASSY, REAR RH

main74250-76010-A0iMZAA10,MZAH10,15202207

RICH CREAM,TRIM00

main74250-76010-A3iMZAH11..CHI202401-202501

WHITE,TRIM0#

main74250-76010-A5iKMA10202401-202512

FROMAGE,TRIM0#

main74250-76010-B0iMZAH11,16..ARL,GCC,GEN202401

WHITE ASH,TRIM1#,8#

main74250-76010-C0iMZAA10..GCC;MZAH15..ARL202207

BLACK,TRIM2#

main74250-76010-D1iMZAA10..GCC;MZAH15..ARL202207

RED,TRIM3#

main74250-76010-E2iKMA10..EUR202207-202401

HAZEL,TRIM42

main74250-76010-E3iMZAA10..GCC;MZAA10..RHD..GEN202207

MAUVE,TRIM43

74260ARMREST ASSY, REAR LH

main74260-76010-A0iMZAA10,MZAH10,15202207

RICH CREAM,TRIM00

main74260-76010-A3iMZAH11..CHI202401-202501

WHITE,TRIM0#

main74260-76010-A5iKMA10202401-202512

FROMAGE,TRIM0#

main74260-76010-B0iMZAH11..CHI202401-202501

WHITE ASH,TRIM1#,8#

main74260-76010-C0iMZAA10..GCC;MZAH15..ARL202207

BLACK,TRIM2#

main74260-76010-D1iMZAH11,16..ARL,EUR,GCC,GEN202401

RED,TRIM3#

main74260-76010-E2iKMA10..EUR202207-202401

HAZEL,TRIM42

main74260-76010-E3iKMA10..ARL,GEN202207-202401

MAUVE,TRIM43

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-76030supersedes 74271-76040iKMA10202207-202401

LUXURY PACKAGE

main74271-76050supersedes 74271-76040iMZAH11,16..ARL,EUR,GCC,GEN202401

F SPORT

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-76030supersedes 74272-76020iMZAA10,MZAH10,15202207

F SPORT

main74272-76050supersedes 74272-76040iMZAH11,16..ARL,EUR,GCC,GEN202401

F SPORT

9046705172

main90467-05172

10 parts on this diagram · 3 diagrams in section
