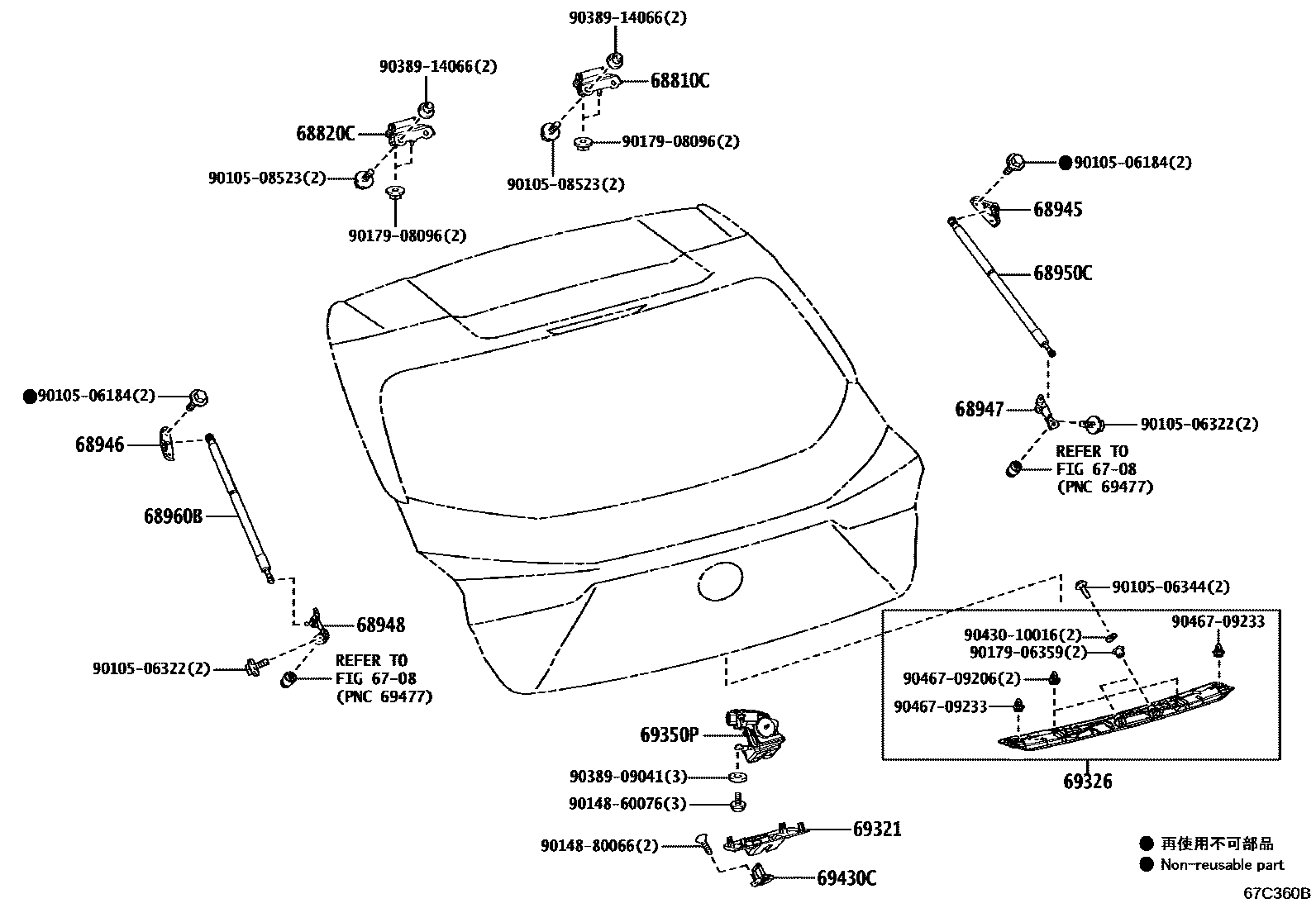

BACK DOOR LOCK & HANDLE

6708

68810CHINGE ASSY, BACK DOOR, RH

main68810-76070i202401-202501

PAD T=1.0

main68810-76080i202401

PAD T=1.5

main68810-76090i202207

PAD T=2.0

68820CHINGE ASSY, BACK DOOR, LH

main68820-76020i202207-202401

PAD T=1.0

main68820-76030i202401-202512

PAD T=1.5

main68820-76040i202401

PAD T=2.0

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-76040supersedes 68945-76030i202207

HANDS FREE POWER BACK DOOR-WITHOUT & WITH(POWER BACK DOOR)

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-76040supersedes 68946-76030i202401-202512

HANDS FREE POWER BACK DOOR-WITHOUT & WITH(POWER BACK DOOR)

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-76010i202207-202401

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-76010i202401-202512

68950CSTAY ASSY, BACK DOOR, RH

main68950-0WN00i202401-202501

68960BSTAY ASSY, BACK DOOR, LH

main68960-0WM90i202401

69321COVER, BACK DOOR LOCK

main69321-76010i202401-202512

69326PLATE, BACK DOOR OUTSIDE HANDLE

main69326-76010supersedes 69326-76030i202207

HANDS FREE POWER BACK DOOR-WITHOUT & WITH(POWER BACK DOOR)&BACK MONITOR-WITH(GUIDE)

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-76020supersedes 69350-76010i202207-202401

HANDS FREE POWER BACK DOOR-WITHOUT & WITH(POWER BACK DOOR)

main69350-76030supersedes 69350-76040i202401

HANDS FREE POWER BACK DOOR-WITHOUT & WITH(POWER BACK DOOR)

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-48030i202401

9010506184

main90105-06184

9010506322

main90105-06322

9010506344

main90105-06344

9010508523

main90105-08523

9014860076

main90148-60076

9014880066

main90148-80066

9017906359

main90179-06359

9017908096

main90179-08096

9038909041

main90389-09041

9038914066

main90389-14066

9043010016

main90430-10016

9046709206

main90467-09206

9046709233

main90467-09233

26 parts on this diagram · 2 diagrams in section
