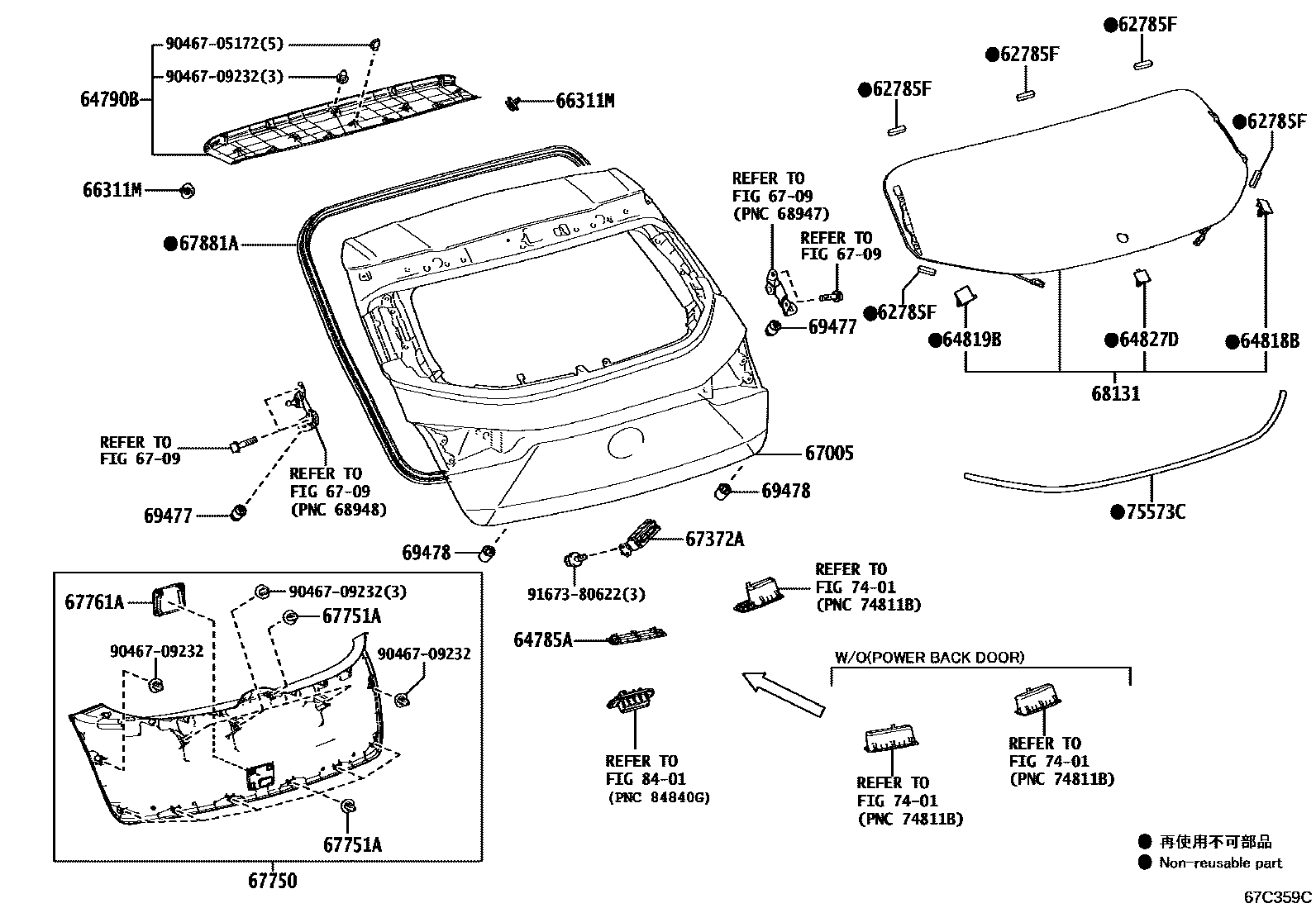

BACK DOOR PANEL & GLASS
62785FSPACER, BACK DOOR GLASS
64785ABASE, BACK DOOR TRIM
64790BPANEL ASSY, BACK DOOR TRIM, UPPER
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM0#,1#,2#,3#,4#,8#
BLACK,TRIM0#,1#,2#,3#,4#
64818BSPACER, BACK DOOR GLASS, NO.1
64819BSPACER, BACK WINDOW GLASS, NO.2
64827DCLIP, BACK WINDOW GLASS
66311MHOOK, ROPE
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM0#,1#,2#,3#,4#,8#
BLACK,TRIM0#,1#,2#,3#,4#
67005PANEL SUB-ASSY, BACK DOOR
BACK MONITOR-WITH(GUIDE)
BACK MONITOR-WITH(*PVM)
6709
67372AWEIGHT, BACK DOOR
67750BOARD ASSY, BACK DOOR TRIM
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM0#,1#,2#,3#,4#,8#
BLACK,TRIM0#,1#,2#,3#,4#
67751ACLIP(FOR BACK DOOR TRIM BOARD)
67761ACOVER, BACK DOOR TRIM
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM0#,1#,2#,3#,4#,8#
BLACK,TRIM0#,1#,2#,3#,4#
68131GLASS, BACK DOOR
GUATEMALA SPEC
ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *INC & *GBS)
CHILE SPEC
COSTA RICA SPEC
BACK GLASS-GREEN,WITH(*GBS)
PERU SPEC
ARGENTINA SPEC
PANAMA SPEC
DOMINICA SPEC
PERU SPEC&REAR SIDE GLASS-UV-CUT(GREEN)
GUATEMALA SPEC&REAR SIDE GLASS-UV-CUT(GREEN)
REAR SIDE GLASS-UV-CUT(GREEN)
PANAMA SPEC&REAR SIDE GLASS-UV-CUT(GREEN)
DEST.PACKAGE (EXC/ERP.)-DOMINICA SPEC&REAR SIDE GLASS-UV-CUT(GREEN)
DEST.PACKAGE (EXC/ERP.)-CHILE SPEC&REAR SIDE GLASS-UV-CUT(GREEN)
ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *INC & *GBS)&REAR SIDE GLASS-PRIVACY
REAR SIDE GLASS-PRIVACY
BACK GLASS-PRIVACY,WITH(*GBS)
ANTI-THEFT SYSTEM-WITH(SIREN & *IS)
PHILIPPINES SPEC
DEST.PACKAGE (EXC/ERP.)-PHILIPPINES SPEC&REAR SIDE GLASS-UV-CUT(GREEN)
69477CUSHION, BACK DOOR UPPER STOPPER
69478CUSHION, BACK DOOR LOWER STOPPER
7401
75573CMOULDING, BACK WINDOW, OUTSIDE
8401
9046705172
main90467-05172
9046709232
main90467-09232
9167380622
main91673-80622
23 parts on this diagram · 1 diagram in section
