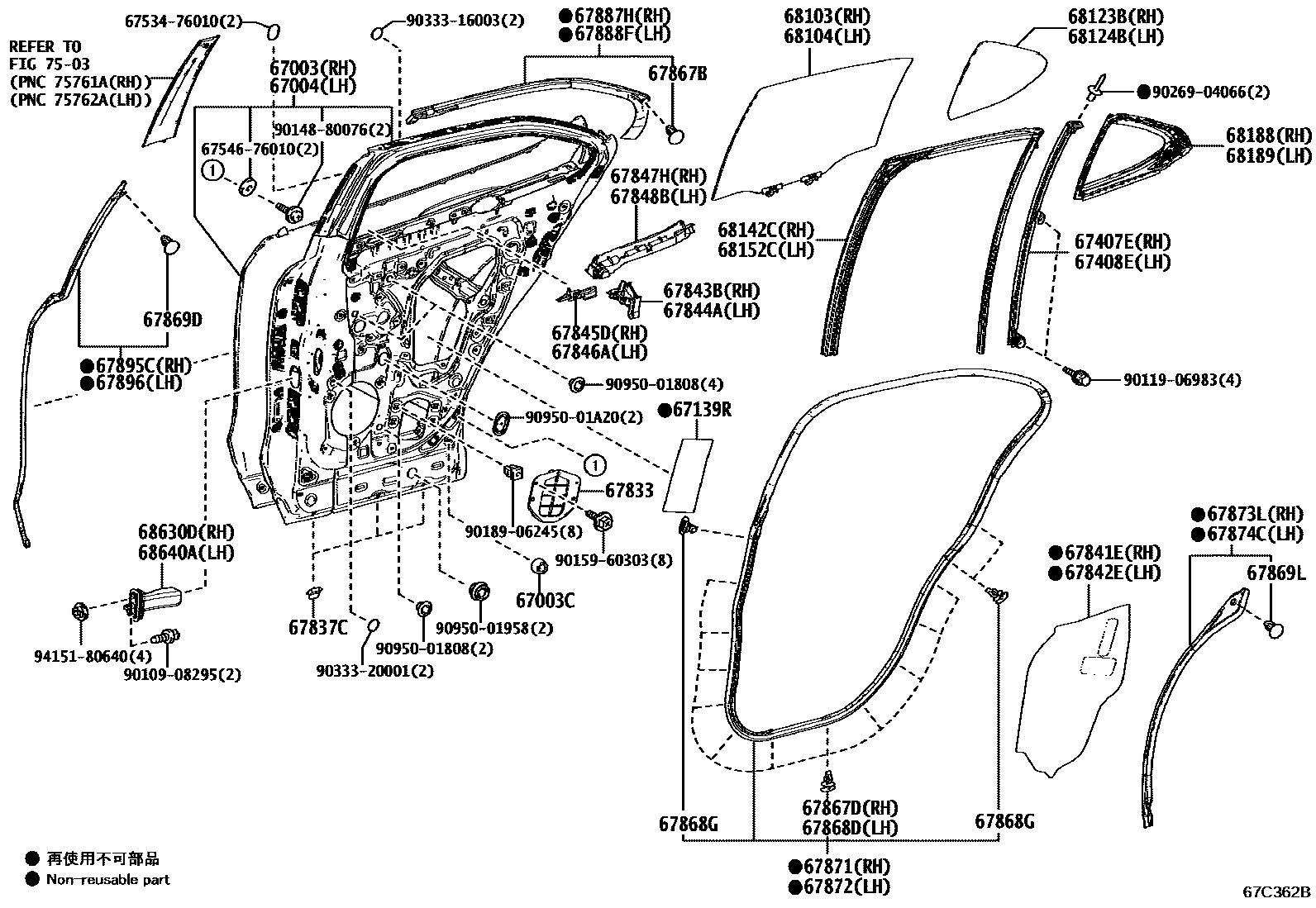

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-79035iMZAH11..CHI¥80,000202207-202512

67003CCUSHION, REAR DOOR PANEL

main90541-09150iMZAA10,MZAH10,15¥100202207-202512

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-79035iMZAH11,16..ARL,EUR,GCC,GEN¥80,000202207-202512

67139RLINING, DOOR OUTSIDE PANEL REINFORCEMENT

main67139-76020iKMA10¥1,920202207-202512

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-76030iMZAH11..CHI¥2,390202207-202501

main67407-76040iKMA10¥2,390202303-202512

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-76030iMZAH11,16..ARL,EUR,GCC,GEN¥2,390202207-202501

main67408-76040iKMA10¥2,390202303-202512

67833COVER, REAR DOOR SERVICE HOLE

main67833-76010iKMA10¥1,000202207-202512

67837CSEAL, REAR DOOR DUST PROOF

main67837-76030iKMA10¥80202207-202512

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-76030iKMA10¥340202207-202512

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-76030iKMA10¥340202207-202512

67843BCOVER, REAR DOOR SERVICE HOLE, NO.2 RH

main67843-76010iKMA10¥450202207-202512

67844ACOVER, REAR DOOR SERVICE HOLE, NO.2 LH

main67844-76010iKMA10¥450202207-202512

67845DSEAL, REAR DOOR FRONT OUTSIDE, RH

main67845-76020iKMA10¥130202207-202512

67846ASEAL, REAR DOOR FRONT OUTSIDE, LH

main67846-76020iKMA10¥130202207-202512

67847HSEAL, REAR DOOR VENT, RH NO.2

main67847-76020iKMA10¥1,190202207-202512

67848BSEAL, REAR DOOR VENT, LH NO.2

main67848-76010iKMA10¥1,190202207-202512

67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)

main67869-33030iKMA10¥100202207-202512

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-50110iKMA10¥100202207-202512

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-50120iKMA10¥100202207-202512

67868GRETAINER, DOOR WEATHERSTRIP

main67867-50130iKMA10¥100202207-202512

67869DCLIP, DOOR WEATHERSTRIP

main67869-33030iKMA10¥100202207-202512

67869LCLIP, REAR DOOR WEATHERSTRIP

main67869-26050iKMA10¥100202207-202512

67871WEATHERSTRIP, REAR DOOR, RH

main67871-76020iKMA10¥3,870202207-202512

67872WEATHERSTRIP, REAR DOOR, LH

main67872-76020iKMA10¥3,870202207-202512

67873LWEATHERSTRIP, REAR DOOR, NO.5 RH

main67873-76030iKMA10¥1,940202207-202512

67874CWEATHERSTRIP, REAR DOOR, NO.5 LH

main67874-76030iMZAA10,MZAH10,15¥1,940202207-202512

67887HWEATHERSTRIP, REAR DOOR, NO.2 RH

main67887-76020iMZAA10,MZAH10,15¥2,590202207-202512

67888FWEATHERSTRIP, REAR DOOR, NO.2 LH

main67888-76020iKMA10¥2,590202207-202512

67895CWEATHERSTRIP, REAR DOOR, NO.3 RH

main67897-76020iKMA10¥1,940202207-202512

67896WEATHERSTRIP, REAR DOOR, NO.3 LH

main67898-76020iKMA10¥1,940202207-202512

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-76041iMZAH11..LHD..GEN202401

COSTA RICA SPEC&BACK GLASS-GREEN,WITH(*GBS)

main68103-76041iKMA10..RHD;KMA10..LHD..EUR202207-202512

main68103-76041iMZAH11..LHD..GEN202401

CHILE SPEC&BACK GLASS-GREEN,WITH(*GBS)

main68103-76041iMZAH11..LHD..GEN202401

PHILIPPINES SPEC&BACK GLASS-GREEN

main68103-76041iMZAH11..LHD..GEN202401

PERU SPEC&BACK GLASS-GREEN,WITH(*GBS)

main68103-76041iMZAH11..LHD..GEN202401

ARGENTINA SPEC&BACK GLASS-GREEN,WITH(*GBS)

main68103-76041iMZAH11..LHD..GEN202401

GUATEMALA SPEC&BACK GLASS-GREEN,WITH(*GBS)

main68103-76041iMZAH11..LHD..GEN202401

PANAMA SPEC&BACK GLASS-GREEN,WITH(*GBS)

main68103-76041iMZAH11..LHD..GEN202401

DOMINICA SPEC&BACK GLASS-GREEN,WITH(*GBS)

main68103-76041iMZAH15;MZAA10,MZAH10..RHD;MZAA10,MZAH10..LHD..(CHI,EUR,GCC)202207

PERU SPEC

main68103-76041iMZAH15;MZAA10,MZAH10..RHD;MZAA10,MZAH10..LHD..(CHI,EUR,GCC)202207

GUATEMALA SPEC

main68103-76041iMZAH15;MZAA10,MZAH10..RHD;MZAA10,MZAH10..LHD..(CHI,EUR,GCC)202207

PANAMA SPEC

main68103-76041iMZAH15;MZAA10,MZAH10..RHD;MZAA10,MZAH10..LHD..(CHI,EUR,GCC)202207

DEST.PACKAGE (EXC/ERP.)-DOMINICA SPEC

main68103-76041iMZAH15;MZAA10,MZAH10..RHD;MZAA10,MZAH10..LHD..(CHI,EUR,GCC)202207

DEST.PACKAGE (EXC/ERP.)-CHILE SPEC

main68103-76041iMZAH15;MZAA10,MZAH10..RHD;MZAA10,MZAH10..LHD..(CHI,EUR,GCC)202207

DEST.PACKAGE (EXC/ERP.)-PHILIPPINES SPEC

main68103-76051iKMA10..ARL,EUR¥10,800202207-202401

REAR SIDE GLASS-PRIVACY

main68103-76051iKMA10..LHD..GEN¥10,800202401-202411

main68103-76051iMZAH11,16..EUR¥10,800202401

BACK GLASS-PRIVACY,WITH(*GBS)

main68103-76051iMZAH11,16..EUR¥10,800202401

BACK GLASS-PRIVACY

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-76041iMZAH16;MZAH11..RHD;MZAH11..LHD..(EUR,GCC)202401

COSTA RICA SPEC&BACK GLASS-GREEN,WITH(*GBS)

main68104-76041iKMA10..RHD;KMA10..LHD..EUR202207-202512

main68104-76041iMZAH15;MZAA10,MZAH10..RHD;MZAA10,MZAH10..LHD..(CHI,EUR,GCC)202207

PERU SPEC

main68104-76041iMZAH15;MZAA10,MZAH10..RHD;MZAA10,MZAH10..LHD..(CHI,EUR,GCC)202207

GUATEMALA SPEC

main68104-76041iMZAH15;MZAA10,MZAH10..RHD;MZAA10,MZAH10..LHD..(CHI,EUR,GCC)202207

PANAMA SPEC

main68104-76041iMZAH15;MZAA10,MZAH10..RHD;MZAA10,MZAH10..LHD..(CHI,EUR,GCC)202207

DEST.PACKAGE (EXC/ERP.)-DOMINICA SPEC

main68104-76041iMZAH15;MZAA10,MZAH10..RHD;MZAA10,MZAH10..LHD..(CHI,EUR,GCC)202207

DEST.PACKAGE (EXC/ERP.)-CHILE SPEC

main68104-76041iMZAH15;MZAA10,MZAH10..RHD;MZAA10,MZAH10..LHD..(CHI,EUR,GCC)202207

DEST.PACKAGE (EXC/ERP.)-PHILIPPINES SPEC

main68104-76041iMZAH16;MZAH11..RHD;MZAH11..LHD..(EUR,GCC)202401

PERU SPEC&BACK GLASS-GREEN,WITH(*GBS)

main68104-76041iMZAH16;MZAH11..RHD;MZAH11..LHD..(EUR,GCC)202401

ARGENTINA SPEC&BACK GLASS-GREEN,WITH(*GBS)

main68104-76041iMZAH16;MZAH11..RHD;MZAH11..LHD..(EUR,GCC)202401

GUATEMALA SPEC&BACK GLASS-GREEN,WITH(*GBS)

main68104-76041iMZAH16;MZAH11..RHD;MZAH11..LHD..(EUR,GCC)202401

PANAMA SPEC&BACK GLASS-GREEN,WITH(*GBS)

main68104-76041iMZAH16;MZAH11..RHD;MZAH11..LHD..(EUR,GCC)202401

DOMINICA SPEC&BACK GLASS-GREEN,WITH(*GBS)

main68104-76041iMZAH16;MZAH11..RHD;MZAH11..LHD..(EUR,GCC)202401

CHILE SPEC&BACK GLASS-GREEN,WITH(*GBS)

main68104-76041iMZAH16;MZAH11..RHD;MZAH11..LHD..(EUR,GCC)202401

PHILIPPINES SPEC&BACK GLASS-GREEN

main68104-76051iKMA10..ARL,EUR¥10,800202207-202401

REAR SIDE GLASS-PRIVACY

main68104-76051iKMA10..LHD..GEN¥10,800202401-202411

main68104-76051iMZAH11..LHD..GEN¥10,800202401

BACK GLASS-PRIVACY,WITH(*GBS)

main68104-76051iMZAH11..LHD..GEN¥10,800202401

BACK GLASS-PRIVACY

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-76040iMZAH11..LHD..GEN202401

ARGENTINA SPEC&BACK GLASS-GREEN,WITH(*GBS)

main68123-76040iKMA10..RHD;KMA10..LHD..EUR202207-202512

main68123-76040iMZAH11..LHD..GEN202401

CHILE SPEC&BACK GLASS-GREEN,WITH(*GBS)

main68123-76040iMZAH11..LHD..GEN202401

PHILIPPINES SPEC&BACK GLASS-GREEN

main68123-76040iMZAH11..LHD..GEN202401

COSTA RICA SPEC&BACK GLASS-GREEN,WITH(*GBS)

main68123-76040iMZAH11..LHD..GEN202401

PERU SPEC&BACK GLASS-GREEN,WITH(*GBS)

main68123-76040iMZAH11..LHD..GEN202401

GUATEMALA SPEC&BACK GLASS-GREEN,WITH(*GBS)

main68123-76040iMZAH11..LHD..GEN202401

PANAMA SPEC&BACK GLASS-GREEN,WITH(*GBS)

main68123-76040iMZAH11..LHD..GEN202401

DOMINICA SPEC&BACK GLASS-GREEN,WITH(*GBS)

main68123-76040iMZAH15;MZAA10,MZAH10..RHD;MZAA10,MZAH10..LHD..(CHI,EUR,GCC)202207

PERU SPEC

main68123-76040iMZAH15;MZAA10,MZAH10..RHD;MZAA10,MZAH10..LHD..(CHI,EUR,GCC)202207

GUATEMALA SPEC

main68123-76040iMZAH15;MZAA10,MZAH10..RHD;MZAA10,MZAH10..LHD..(CHI,EUR,GCC)202207

PANAMA SPEC

main68123-76040iMZAH15;MZAA10,MZAH10..RHD;MZAA10,MZAH10..LHD..(CHI,EUR,GCC)202207

DEST.PACKAGE (EXC/ERP.)-DOMINICA SPEC

main68123-76040iMZAH15;MZAA10,MZAH10..RHD;MZAA10,MZAH10..LHD..(CHI,EUR,GCC)202207

DEST.PACKAGE (EXC/ERP.)-CHILE SPEC

main68123-76040iMZAH15;MZAA10,MZAH10..RHD;MZAA10,MZAH10..LHD..(CHI,EUR,GCC)202207

DEST.PACKAGE (EXC/ERP.)-PHILIPPINES SPEC

main68123-76050iKMA10..ARL,EUR¥3,360202207-202401

REAR SIDE GLASS-PRIVACY

main68123-76050iKMA10..LHD..GEN¥3,360202401-202411

main68123-76050iMZAH11,16..EUR¥3,360202401

BACK GLASS-PRIVACY,WITH(*GBS)

main68123-76050iMZAH11,16..EUR¥3,360202401

BACK GLASS-PRIVACY

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-76040iMZAH11..CHI202207-202512

main68124-76040iMZAH11..LHD..GEN202401

DOMINICA SPEC&BACK GLASS-GREEN,WITH(*GBS)

main68124-76040iMZAH11..LHD..GEN202401

CHILE SPEC&BACK GLASS-GREEN,WITH(*GBS)

main68124-76040iMZAH11..LHD..GEN202401

PHILIPPINES SPEC&BACK GLASS-GREEN

main68124-76040iMZAH11..LHD..GEN202401

COSTA RICA SPEC&BACK GLASS-GREEN,WITH(*GBS)

main68124-76040iMZAH11..LHD..GEN202401

PERU SPEC&BACK GLASS-GREEN,WITH(*GBS)

main68124-76040iMZAH11..LHD..GEN202401

ARGENTINA SPEC&BACK GLASS-GREEN,WITH(*GBS)

main68124-76040iMZAH11..LHD..GEN202401

GUATEMALA SPEC&BACK GLASS-GREEN,WITH(*GBS)

main68124-76040iMZAH11..LHD..GEN202401

PANAMA SPEC&BACK GLASS-GREEN,WITH(*GBS)

main68124-76040iMZAH15;MZAA10,MZAH10..RHD;MZAA10,MZAH10..LHD..(CHI,EUR,GCC)202207

PERU SPEC

main68124-76040iMZAH15;MZAA10,MZAH10..RHD;MZAA10,MZAH10..LHD..(CHI,EUR,GCC)202207

GUATEMALA SPEC

main68124-76040iMZAH15;MZAA10,MZAH10..RHD;MZAA10,MZAH10..LHD..(CHI,EUR,GCC)202207

PANAMA SPEC

main68124-76040iMZAH15;MZAA10,MZAH10..RHD;MZAA10,MZAH10..LHD..(CHI,EUR,GCC)202207

DEST.PACKAGE (EXC/ERP.)-DOMINICA SPEC

main68124-76040iMZAH15;MZAA10,MZAH10..RHD;MZAA10,MZAH10..LHD..(CHI,EUR,GCC)202207

DEST.PACKAGE (EXC/ERP.)-CHILE SPEC

main68124-76040iMZAH15;MZAA10,MZAH10..RHD;MZAA10,MZAH10..LHD..(CHI,EUR,GCC)202207

DEST.PACKAGE (EXC/ERP.)-PHILIPPINES SPEC

main68124-76050iMZAH11,16..EUR¥3,360202401

BACK GLASS-PRIVACY,WITH(*GBS)

main68124-76050iMZAH11,16..ARL,EUR¥3,360202401

BACK GLASS-PRIVACY

main68124-76050iMZAA10,MZAH10..LHD..GEN¥3,360202207-202401

REAR SIDE GLASS-PRIVACY

main68124-76050iKMA10..LHD..GEN¥3,360202401-202411

68142CRUN, REAR DOOR GLASS, RH

main68142-76020iKMA10¥3,000202207-202512

68152CRUN, REAR DOOR GLASS, LH

main68152-76020iKMA10¥3,000202207-202512

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-76020iKMA10¥2,900202207-202512

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-76020iMZAH11..CHI¥2,900202207-202512

68630DCHECK ASSY, REAR DOOR, RH

main68630-76021iMZAA10,MZAH10,15¥2,810202207-202512

68640ACHECK ASSY, REAR DOOR, LH

main68640-76021iMZAA10,MZAH1#¥3,090202207-202208

main68640-76040iMZAA10,MZAH10,15¥2,810202208-202512

7503

6753476010SEAL, FRONT DOOR DIVISION BAR, LH NO.2

main67534-76010¥80

6754676010CHANNEL, VENT WINDOW DRIP, RH

main67546-76010¥110

9010908295

main90109-08295¥80

9011906983

main90119-06983¥60

9014880076

main90148-80076¥110

9015960303

main90159-60303¥70

9018906245

main90189-06245¥70

9026904066

main90269-04066¥50

9033316003

main90333-16003¥80

9033320001

main90333-20001¥70

9095001808

main90950-01808¥110

9095001958

main90950-01958¥120

9095001A20

main90950-01A20¥100

9415180640

main94151-80640¥60

55 parts on this diagram · 2 diagrams in section
