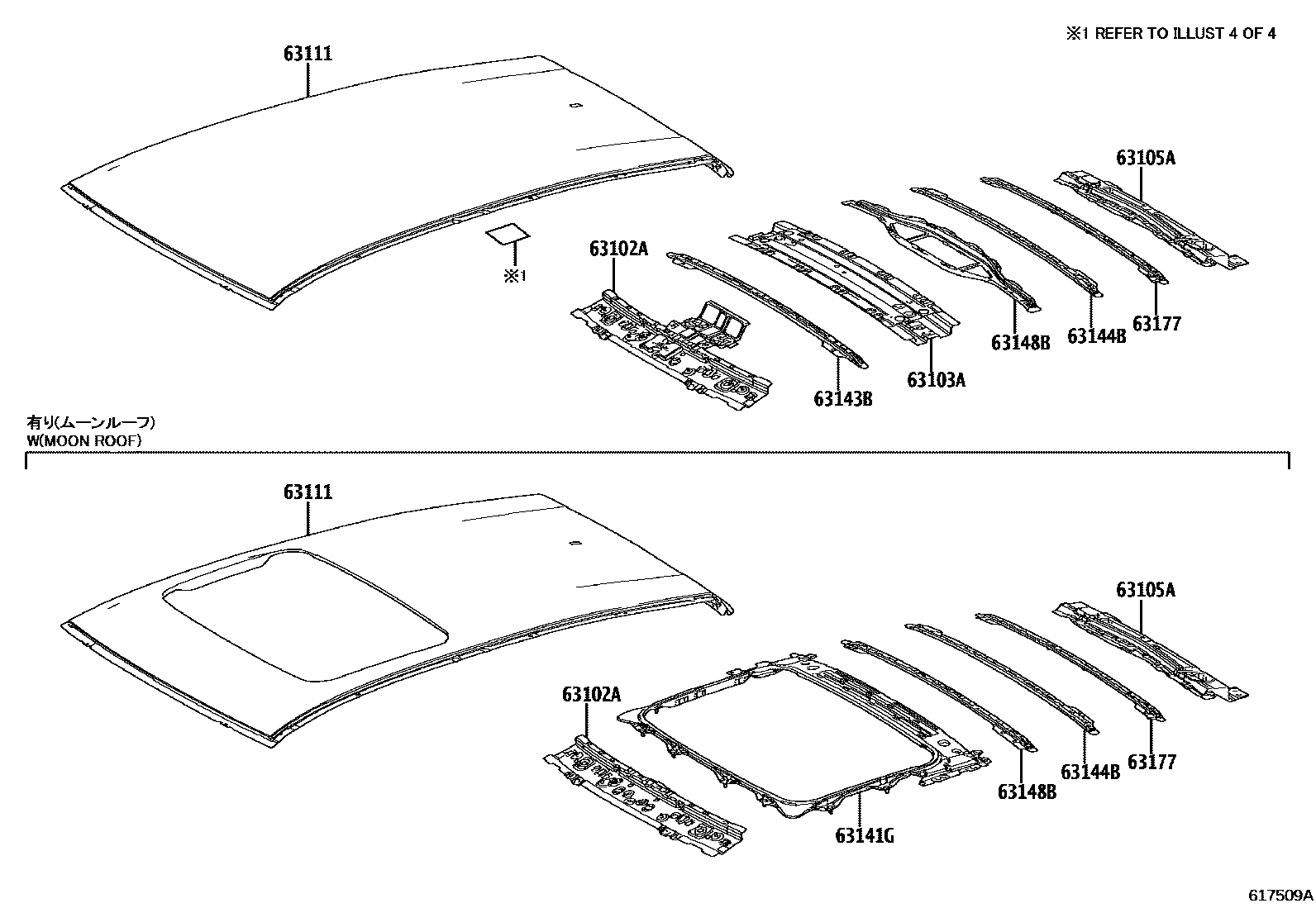

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL 0002 1MOON ROOF 0003 1MOON ROOF 0004 1ROOF RAIL 0005 1HIGH DECREMENT MASTIC SEAL

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-76904supersedes 63102-76903iKMA10..ARL202207-202401

NEW ZEALAND SPEC&MOON ROOF-WITH&DATA COMMUNICATION MODULE-WITHOUT

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-76020iKMA10202401-202512

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-76020iMZAH11..CHI202401-202501

63111PANEL, ROOF

main63111-76040iMZAA10,MZAH10,15..GCC,GEN202207

ROOF RAIL-WITH

main63111-76070supersedes 63111-76030iMZAA10..ARL;MZAH10..CHI202207

QATAR SPEC&ROOF RAIL-WITH&MOON ROOF-WITH&DATA COMMUNICATION MODULE-WITH

main63111-76080supersedes 63111-76050iMZAH11,16..ARL202401

ROOF RAIL-WITH(BLACK)&MOON ROOF-WITH

main63111-76090supersedes 63111-76050iMZAA10,MZAH10,15..EUR202207

QATAR SPEC&MOON ROOF-WITH&DATA COMMUNICATION MODULE-WITH

main63111-76100supersedes 63111-76060iMZAH11..GCC202401

MOON ROOF-WITH&DATA COMMUNICATION MODULE-WITHOUT

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63107-76010iKMA10202401-202512

NEW ZEALAND SPEC&MOON ROOF-WITH&DATA COMMUNICATION MODULE-WITHOUT

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-76020iMZAH11,16..ARL,EUR,GCC,GEN202401

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-76020iMZAH11,16..ARL,EUR,GCC,GEN202401

63148BREINFORCEMENT, ROOF PANEL SIDE

main63148-76030supersedes 63148-76020iKMA10202207-202401

NEW ZEALAND SPEC&MOON ROOF-WITH&DATA COMMUNICATION MODULE-WITHOUT

63177REINFORCEMENT, ROOF PANEL, NO.9

main63177-76010iMZAA10,MZAH10,15202207

9 parts on this diagram · 5 diagrams in section
