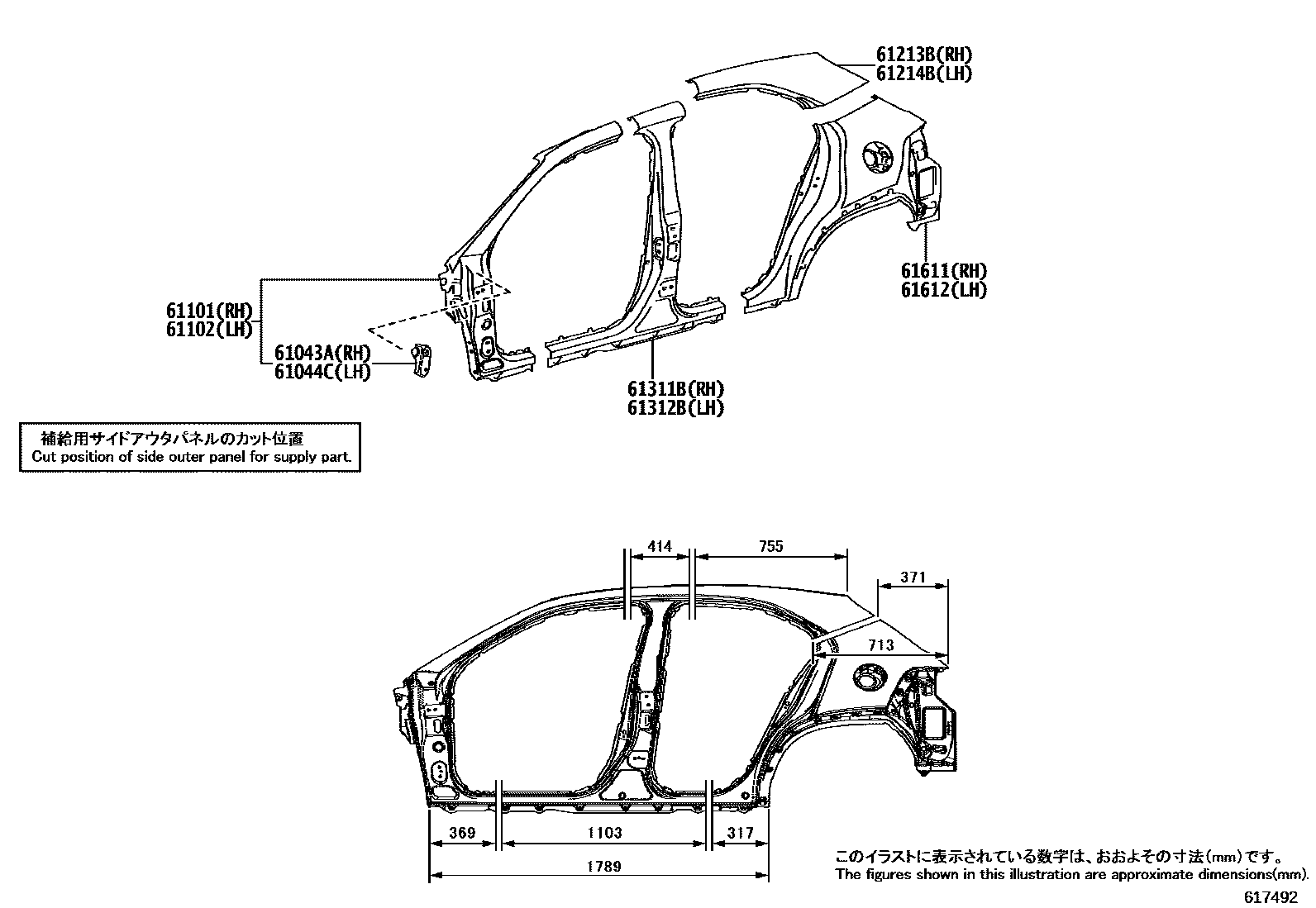

SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL,RH 0003 1INNER PANEL,LH

61043AEXTENSION SUB-ASSY, FRONT BODY PILLAR, OUTER RH

main53838-76010iKMA10202207-202401

61044CEXTENSION SUB-ASSY, FRONT BODY PILLAR, OUTER LH

main53839-76010iKMA10202207-202401

61101PANEL SUB-ASSY, COWL SIDE, RH

main61101-76030iKMA10202207-202401

61102PANEL SUB-ASSY, COWL SIDE, LH

main61102-76030iKMA10202207-202401

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61201-76030iKMA10202207-202401

61214BRAIL, ROOF SIDE, OUTER NO.2 LH

main61202-76040iKMA10202207-202401

61311BPILLAR, CENTER BODY, OUTER RH

main61311-76020iKMA10202207-202401

61312BPILLAR, CENTER BODY, OUTER LH

main61312-76020iKMA10202207-202401

61611PANEL, QUARTER, RH

main61601-76040iMZAA10,MZAH10,15202207

main61601-76050iKMA10202303-202401

61612PANEL, QUARTER, LH

main61602-76040iMZAA10,MZAH10,15202207

main61602-76050iKMA10202303-202401

10 parts on this diagram · 3 diagrams in section
