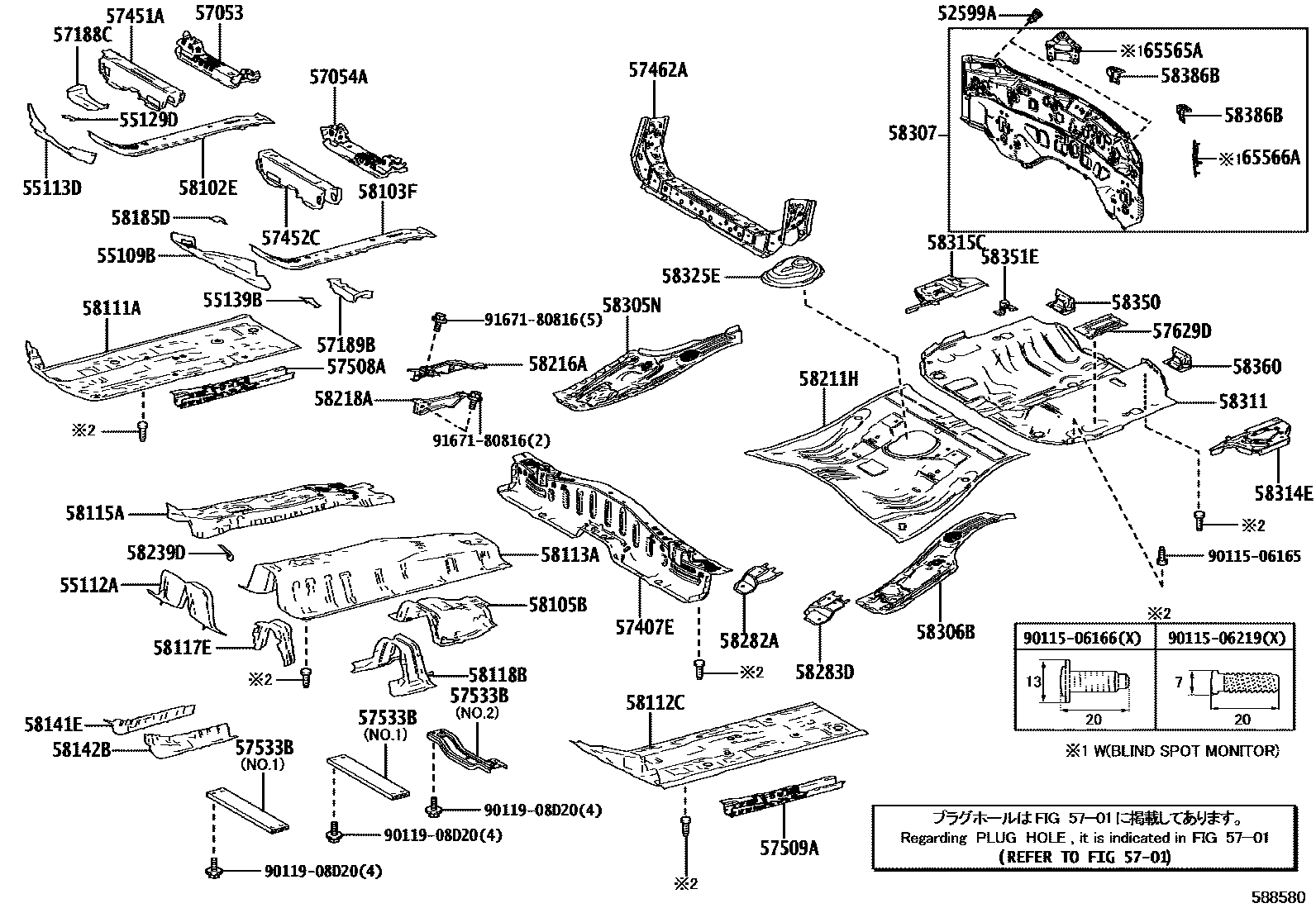

FLOOR PAN & LOWER BACK PANEL

0001 1FLOOR PANEL & LOWER BACK PANE0002 1FLOOR PANEL & LOWER BACK PANE0003 1FLOOR PANEL & LOWER BACK PANE0004 1FLOOR PANEL & LOWER BACK PANE0005 1FLOOR PANEL & LOWER BACK PANE0006 1FLOOR PANEL & LOWER BACK PANE0007 1FLOOR PANEL & LOWER BACK PANE0008 1FLOOR PANEL & LOWER BACK PANE0009 1FLOOR PANEL & LOWER BACK PANE0010 1FLOOR PANEL & LOWER BACK PANE0011 1FLOOR UNDER COVER 0012 1FLOOR UNDER COVER 0013 1FLOOR PANEL & LOWER BACK PANE0014 1FLOOR UNDER COVER 1/2 0015 1FLOOR UNDER COVER 2/2

52599ASTOPPER, REAR BUMPER, UPPER

main52599-76010×2iMZAH11..CHI202401-202501

55109BBRACE SUB-ASSY, DASH TO FRAME, LH

main55109-76010iMZAA10,MZAH10,15..LHD202207

55112APANEL, DASH, NO.2

main55112-47040iMZAH11,16..ARL,EUR,GCC,GEN202401

main55112-76010iKMA10202401-202512

55113DPANEL, DASH, LOWER RH

main55113-47021iMZAH11..CHI202401-202501

55129DCOVER, DASH PANEL HOLE, RH

main55129-47021iKMA10202207-202401

55139BCOVER, DASH PANEL HOLE, LH

main55139-47021iKMA10202207-202401

5701

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-12041iMZAA10,MZAH10,15..RHD202207-202307

main57053-76010iMZAH11..CHI202401-202501

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-76010iMZAA10,MZAH10,15202207

57188CREINFORCEMENT, FRONT SIDE MEMBER EXTENSION, RH

main57188-76010iMZAH11..CHI202401-202501

main57188-76020iKMA10202401-202512

57189BREINFORCEMENT, FRONT SIDE MEMBER EXTENSION, LH

main57189-47020iMZAH11..CHI202401-202501

main57189-76010iKMA10202303-202401

57407EMEMBER SUB-ASSY, CENTER FLOOR CROSS

main57407-10070iMZAA10202207

main57407-47021iMZAH11,16..ARL,EUR,GCC,GEN202401

main57407-76010iKMA10202303-202401

57451AMEMBER, FRONT FLOOR CROSS, RH

main57451-47040iMZAH11..CHI202401-202501

57452CMEMBER, FRONT FLOOR CROSS, LH

main57452-47010iMZAH11..CHI202401-202501

57462AMEMBER, CENTER FLOOR CROSS, NO.2

main57405-47011iMZAH11,16..ARL,EUR,GCC,GEN202401

57508AREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH

main57508-10010iMZAH11,16..ARL,EUR,GCC,GEN202401

57509AREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH

main57508-10010iMZAA10,MZAH10,15202207

57533BBRACE, FRONT FLOOR, CENTER

main57533-10010iMZAH11,16..ARL,EUR,GCC,GEN202401

NO.2:REFER ILLUST.

main57533-47030×2iMZAH11,16..ARL,EUR,GCC,GEN202401

NO.1:REFER ILLUST.

57629DPLATE, REAR FLOOR SIDE MEMBER, LH

main57629-12070iKMA10202207-202401

58102EREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH

main58102-47020iMZAA10,MZAH10,15202207

58103FREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH

main58102-47020iMZAA10,MZAH10,15202207

58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB

main58105-12010iMZAH11,16..ARL,EUR,GCC,GEN202401

58111PAN, FRONT FLOOR

main58111-76030iKMA10202303-202401

58111APAN, FRONT FLOOR, RH

main58111-10201iMZAA10,MZAH1#202207-202208

main58111-10210iMZAA10,MZAH10,15202208

58112CPAN, FRONT FLOOR, LH

main58112-10041iMZAA10,MZAH1#202207-202208

main58112-10050iMZAH11,16..ARL,EUR,GCC,GEN202401

main58113-76020iKMA10202401-202512

58113APANEL, FRONT FLOOR, CENTER

main58113-10080iMZAA10,MZAH10,15202207

main58113-76030iMZAH11..CHI202401-202501

58115REINFORCEMENT, FRONT FLOOR PANEL, FRONT

main57045-76010iKMA10202401-202512

58115AREINFORCEMENT, FRONT FLOOR PANEL

main58015-47050iMZAH11..CHI202401-202501

58117EPANEL, FRONT FLOOR SUB COVER

main58117-47040iMZAA10,MZAH10,15202207

58118BREINFORCEMENT, FRONT FLOOR PANEL, NO.2

main58118-47030iMZAA10,MZAH10,15202207

58141EREINFORCEMENT, FRONT SIDE MEMBER TO FLOOR PAN, RH

main58141-47011iMZAH11..CHI202401-202501

58142BREINFORCEMNET, FRONT SIDE MEMBER TO FLOOR PAN, LH

main58142-47012iMZAH11,16..ARL,EUR,GCC,GEN202401

58185DPLATE, ACCELERATOR PEDAL MOUNTING

main58185-76010iMZAH11,16..LHD..(EUR,GCC,GEN)202401

main58185-76020iKMA10202401-202512

58211HPAN, CENTER FLOOR

main58211-12800iMZAA10202207

main58211-47100iMZAH11,16..ARL,EUR,GCC,GEN202401

main58211-76010iKMA10202401-202512

58216APANEL, SHIFT LEVER HOUSING, NO.1

main58216-76010iMZAA10,MZAH10,15..LHD202207

main58216-76020iMZAA10,MZAH10,15..RHD202207

58218APANEL, SHIFT LEVER HOUSING, NO.2

main58218-76010iMZAA10,MZAH10,15..LHD202207

main58218-76020iMZAA10,MZAH10,15..RHD202207

58239DBRACKET, CABLE CLAMP

main58239-12030iMZAA10,MZAH10,15202207

58282ABASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH

main58282-47050iMZAH11,16..ARL,EUR,GCC,GEN202401

main58282-76010iKMA10202303-202401

58283DBASE, BELT ANCHOR TO FLOOR PAN, NO.3 LH

main58283-47040iMZAH11,16..ARL,EUR,GCC,GEN202401

main58283-76010iKMA10202303-202401

58305NEXTENSION SUB-ASSY, REAR FLOOR TO QUARTER, RH

main58305-12060iKMA10202207-202401

main58305-47051iMZAH11,16..ARL,EUR,GCC,GEN202401

58306BEXTENSION SUB-ASSY, REAR FLOOR TO QUARTER, LH

main58306-12040iKMA10202401-202512

main58306-47051iMZAH10,15202207

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-76031iKMA10..ARL;KMA10..LHD..GEN202207-202401

main58307-76051iKMA10..LHD..EUR;KMA10..RHD..(EUR,GEN)202207-202401

main58307-76080supersedes 58307-76090iKMA10..ARL202401-202512

LUXURY PACKAGE&INSIDE REAR VIEW MIRROR-*247&BACK MONITOR-WITH(*PVM)

main58307-76090iKMA10..EUR,GEN202401-202512

58311PAN, REAR FLOOR

main58311-47130iKMA10202401-202512

main58311-76020iMZAA10,MZAH10202207

main58311-76030iMZAH16202401

58314EEXTENSION, REAR FLOOR SIDE PANEL, LH

main58316-76010iMZAH11,16..ARL,EUR,GCC,GEN202401

58315CEXTENSION, REAR FLOOR SIDE PANEL, RH

main58315-76010iKMA10202207-202401

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-10031iMZAA10202207

main58325-47051iMZAH11..CHI202401-202501

58350REINFORCEMENT ASSY, REAR FLOOR PANEL, RH

main58350-47010iMZAH11,16..ARL,EUR,GCC,GEN202401

58351EBRACKET, SPARE WHEEL CLAMP

main58351-33020iMZAH11..CHI202401-202501

58360REINFORCEMENT ASSY, REAR FLOOR PANEL, LH

main58350-47010iMZAH11,16..ARL,EUR,GCC,GEN202401

58386BBRACKET, REAR BUMPER COVER, NO.2

main58386-47020×2iMZAH11,16..ARL,EUR,GCC,GEN202401

65565APATCH, SIDE PANEL REAR END, RH

main65565-33050iKMA10..ARL;KMA10..LHD..GEN202207-202401

main65565-50010iKMA10..ARL202401-202512

LUXURY PACKAGE&INSIDE REAR VIEW MIRROR-*247&BACK MONITOR-WITH(*PVM)

65566APATCH, SIDE PANEL REAR END, LH

main65565-33050iKMA10..ARL;KMA10..LHD..GEN202207-202401

main65565-50010iKMA10..ARL202401-202512

LUXURY PACKAGE&INSIDE REAR VIEW MIRROR-*247&BACK MONITOR-WITH(*PVM)

9011506165

main90115-06165

9011506166

main90115-06166

9011506219

main90115-06219

9011908D20

main90119-08D20

9167180816

main91671-80816
