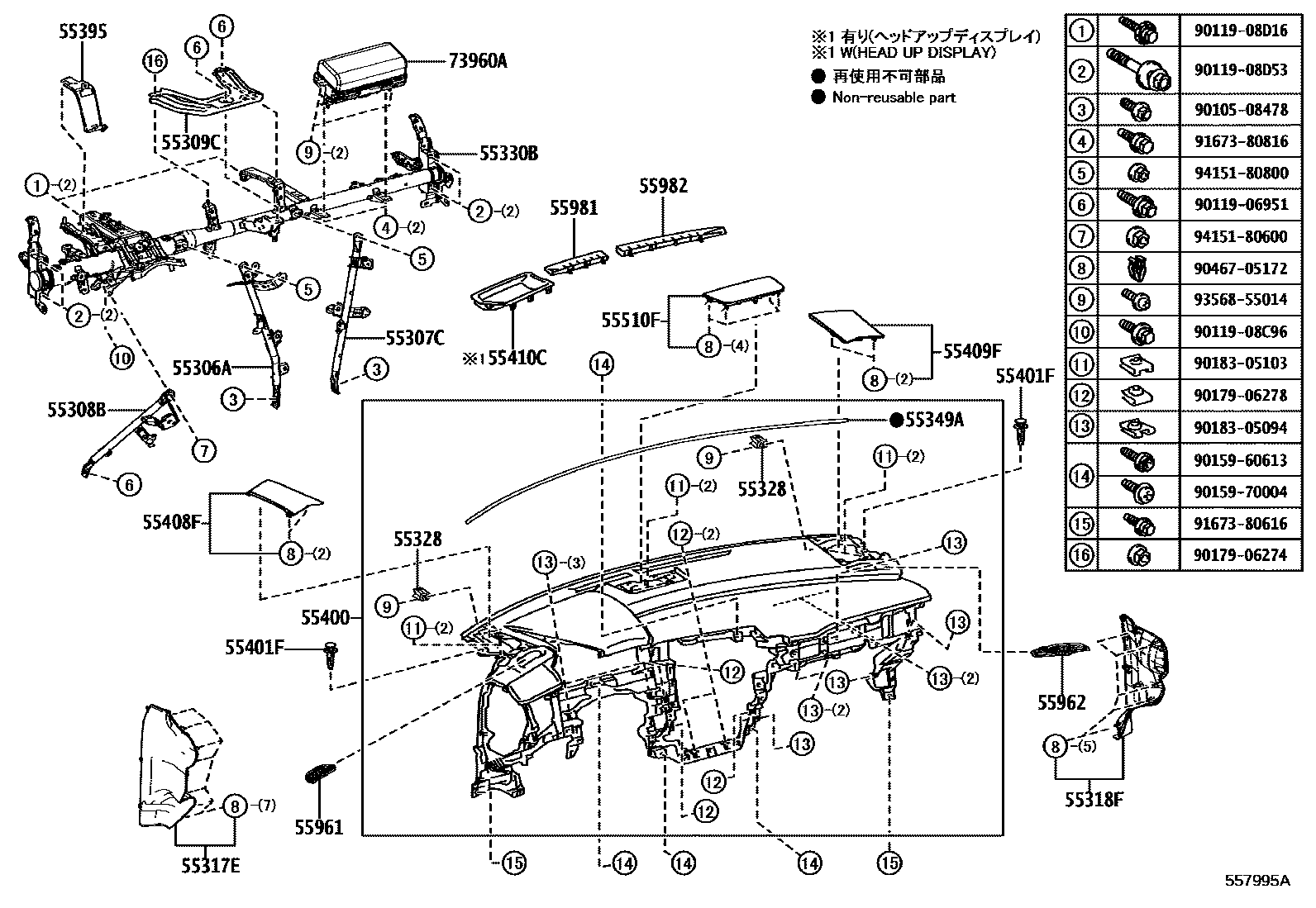

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE 0005 1 0006 1DRIVER SIDE 0007 1CENTER 0008 1PASSENGER SIDE

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-76060iKMA10..LHD202207-202401

main55306-76070iMZAH11,16..RHD202401

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-76050iMZAH11,16..LHD..(EUR,GCC,GEN)202401

main55307-76060iMZAA10,MZAH10,15..RHD202207

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-76010iKMA10..LHD202401-202512

main55308-76020iMZAA10,MZAH10,15..RHD202207

55309CREINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, CENTER

main55309-76030iKMA10..LHD202207-202401

main55309-76040iMZAA10,MZAH10,15..RHD202207

55317EPANEL, INSTRUMENT SIDE, NO.1

main55317-76120-C0iMZAH11,16..LHD..EUR202401

BLACK,TRIM0#,1#,2#,3#,4#,8#

main55317-76130-C0iMZAH11,16..RHD..(ARL,GEN)202401

BLACK,TRIM0#,1#,2#,3#,4#,8#

55318FPANEL, INSTRUMENT SIDE, NO.2

main55318-76130-C0iMZAH11,16..LHD..(GCC,GEN)202401

BLACK,TRIM0#,1#,2#,3#,4#,8#

main55318-76140-C0iMZAH11,16..LHD..EUR202401

BLACK,TRIM0#,1#,2#,3#,4#

main55318-76150-C0iKMA10..RHD..(ARL,GEN)202303-202401

BLACK,TRIM0#,1#,2#,4#

main55318-76160-C0iMZAH11..RHD..GEN202401

BLACK,TRIM0#,1#,2#,3#,4#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-76090×2iMZAH11,16..ARL,EUR,GCC,GEN202401

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-76150supersedes 55330-76140iKMA10..RHD..GEN202401-202512

HEAD UP DISPLAY-WITH

main55330-76110supersedes 55330-76100iKMA10..LHD202303-202401

LUXURY PACKAGE

main55330-76130supersedes 55330-76120iMZAH11,16..RHD202401

HEAD UP DISPLAY-WITH

55349ACUSHION, INSTRUMENT PANEL

main55349-76030iKMA10202401-202512

55395BRACKET, INSTRUMENT PANEL TO PEDAL

main55395-12020iKMA10..LHD202401-202512

main55395-12040iMZAH11,16..RHD202401

55400PAD ASSY, INSTRUMENT PANEL SAFETY

main55400-76050-C1iMZAH11..CHI202401-202501

SOFT BLACK/LT.GRAY,TRIM1#,2#,8#

main55400-76050-C2iMZAH11..CHI202401-202501

SOFT BLACK/HAZEL,TRIM4#

main55400-76050-C3iKMA10..LHD..GEN202207-202401

SOFT BLACK/MAUVE,TRIM43

main55400-76090-C0iKMA10..RHD..(EUR,GEN)202207-202401

SOFT BLACK/MELLOW WHITE,TRIM0#

main55400-76090-C1iKMA10..RHD..(ARL,EUR)202401-202512

SOFT BLACK/LT.GRAY,TRIM1#,2#

main55400-76090-C2iKMA10..RHD..EUR202207-202401

SOFT BLACK/HAZEL,TRIM4#

main55400-76090-C3iKMA10..RHD..(ARL,GEN)202207-202401

SOFT BLACK/MAUVE,TRIM43

main55400-76110-C1supersedes 55400-76090-C1iKMA10..RHD..GEN202401-202512

SOFT BLACK/LT.GRAY,TRIM1#,2#

main55400-76110-C2supersedes 55400-76090-C2iKMA10..RHD..GEN202401-202512

SOFT BLACK/HAZEL,TRIM4#

main55400-76110-C4supersedes 55400-76090-C4iKMA10..RHD..EUR202401-202512

PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,SOFT BLACK/SHELL,TRIM0#

main55400-76060-C1iMZAA10,MZAH10,15..LHD..(GCC,GEN)202207

F SPORT,SOFT BLACK/RED,TRIM21,22,3#

main55400-76060-C2iMZAA10,MZAH10,15..LHD202207

F SPORT,SOFT BLACK/LT.GRAY,TRIM0#,1#,20,8#

main55400-76070-C0supersedes 55400-76050-C0iMZAA10,MZAH10,15..LHD202207

HEAD UP DISPLAY-WITH,SOFT BLACK/MELLOW WHITE,TRIM0#

main55400-76070-C1supersedes 55400-76050-C1iKMA10..LHD..EUR202401-202512

HEAD UP DISPLAY-WITH,SOFT BLACK/LT.GRAY,TRIM1#,2#

main55400-76070-C2supersedes 55400-76050-C2iMZAH11,16..LHD..EUR202401

PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,SOFT BLACK/HAZEL,TRIM4#

main55400-76070-C3supersedes 55400-76050-C3iMZAA10..GCC202207

HEAD UP DISPLAY-WITH,SOFT BLACK/MAUVE,TRIM43

main55400-76070-C4supersedes 55400-76050-C4iMZAH11,16..LHD..EUR202401

F SPORT(DESIGN)&HEAD UP DISPLAY-WITH,SOFT BLACK/SHELL,TRIM0#

main55400-76080-C1iMZAA10,MZAH10,15..LHD..(GCC,GEN)202207

F SPORT&HEAD UP DISPLAY-WITH,SOFT BLACK/RED,TRIM21,22,3#

main55400-76080-C2supersedes 55400-76050-C4iMZAA10,MZAH10,15..LHD202207

F SPORT&HEAD UP DISPLAY-WITH,SOFT BLACK/LT.GRAY,TRIM0#,1#,20,8#

main55400-76100-C1iMZAH15..RHD..EUR;MZAA10,MZAH10..RHD..(ARL,EUR)202207

F SPORT,SOFT BLACK/RED,TRIM21,22,3#

main55400-76100-C2supersedes 55400-76090-C4iMZAH11,16..RHD202401

F SPORT,SOFT BLACK/LT.GRAY,TRIM0#

main55400-76110-C0supersedes 55400-76090-C0iMZAA10,MZAH10,15..RHD202207

HEAD UP DISPLAY-WITH,SOFT BLACK/MELLOW WHITE,TRIM0#

main55400-76110-C3supersedes 55400-76090-C3iKMA10..RHD..GEN202304-202401

LUXURY PACKAGE,SOFT BLACK/MAUVE,TRIM43

main55400-76120-C1iMZAH15..RHD..EUR;MZAA10,MZAH10..RHD..(ARL,EUR)202207

F SPORT&HEAD UP DISPLAY-WITH,SOFT BLACK/RED,TRIM21,22,3#

main55400-76120-C2supersedes 55400-76090-C4iMZAA10,MZAH10,15..RHD202207

F SPORT&HEAD UP DISPLAY-WITH,SOFT BLACK/LT.GRAY,TRIM0#,1#,20,8#

55401FCLIP(FOR SAFETY PAD)

main52161-16010×2iKMA10202207-202401

sub52161-0K040

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55408-76040-C0iMZAA10,MZAH10,15..LHD202207

BLACK,TRIM0#,1#,2#,3#,4#,8#

main55408-76060-C0iKMA10..RHD..(EUR,GEN)202401-202512

BLACK,TRIM0#,1#,2#,4#

main55408-76070-C0supersedes 55408-76060-C0iKMA10..RHD..EUR202303-202401

AUDIO-EMV & 13SPEAKER,BLACK,TRIM0#,1#,2#,4#

main55408-76050-C0supersedes 55408-76040-C0iMZAH11,16..LHD..EUR202401

AUDIO-EMV & 13SPEAKER,BLACK,TRIM0#,1#,2#,3#,4#,8#

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

main55409-76050-C0iKMA10..LHD..EUR202303-202401

BLACK,TRIM1#,2#,4#

main55409-76070-C0iKMA10..RHD..(EUR,GEN)202303-202401

BLACK,TRIM0#,1#,2#,4#

main55409-76080-C0supersedes 55409-76070-C0iKMA10..RHD..GEN202401-202512

AUDIO-EMV & 13SPEAKER,BLACK,TRIM0#,1#,2#,4#

main55409-76060-C0supersedes 55409-76050-C0iMZAH11,16..LHD..EUR202401

AUDIO-EMV & 13SPEAKER,BLACK,TRIM0#,1#,2#,3#,4#,8#

55410CPANEL ASSY, INSTRUMENT CLUSTER FINISH

main55410-76080-C0iKMA10..RHD..GEN202401-202512

BLACK,TRIM0#,1#,2#,4#

main55410-76070-C0iMZAH11,16..LHD..EUR202401

HEAD UP DISPLAY-WITH,BLACK,TRIM0#,1#,2#,3#,4#,8#

55510FCOVER ASSY, SPEAKER OPENING, NO.1

main55510-76050-C0iKMA10..LHD..EUR;KMA10..RHD..(EUR,GEN)202303-202401

BLACK,TRIM1#,2#,4#

main55510-76060-C0iMZAA10,MZAH10,15..CHI,EUR,GCC,GEN202207

BLACK,TRIM0#,1#,2#,3#,4#,8#

main55510-76070-C0supersedes 55510-76050-C0iKMA10..RHD..GEN202401-202512

AUDIO-EMV & 13SPEAKER,BLACK,TRIM0#,1#,2#,4#

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-76010-C0iKMA10202303-202401

BLACK,TRIM0#,1#,2#,4#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-76010-C0iMZAH11,16..ARL,GCC,GEN202401

BLACK,TRIM0#,1#,2#,3#,4#,8#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-76090-C0iKMA10..LHD202303-202401

BLACK,TRIM0#,1#,2#,4#

main55981-76100-C0iKMA10..RHD202303-202401

BLACK,TRIM0#,1#,2#,4#

55982GARNISH, DEFROSTER NOZZLE, NO.2

main55982-76050-C0iMZAH11,16..LHD..EUR202401

BLACK,TRIM0#,1#,2#,3#,4#,8#

main55982-76060-C0iKMA10..RHD202303-202401

BLACK,TRIM0#,1#,2#,4#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-76030iMZAA10,MZAH10,15202207

9010508478

main90105-08478

9011906951

main90119-06951

9011908C96

main90119-08C96

9011908D16

main90119-08D16

9011908D53

main90119-08D53

9015960613

main90159-60613

9015970004

main90159-70004

9017906274

main90179-06274

9017906278

main90179-06278

9018305094

main90183-05094

9018305103

main90183-05103

9046705172

main90467-05172

9167380616

main91673-80616

9167380816

main91673-80816

9356855014

main93568-55014

9415180600

main94151-80600

9415180800

main94151-80800

38 parts on this diagram · 8 diagrams in section
