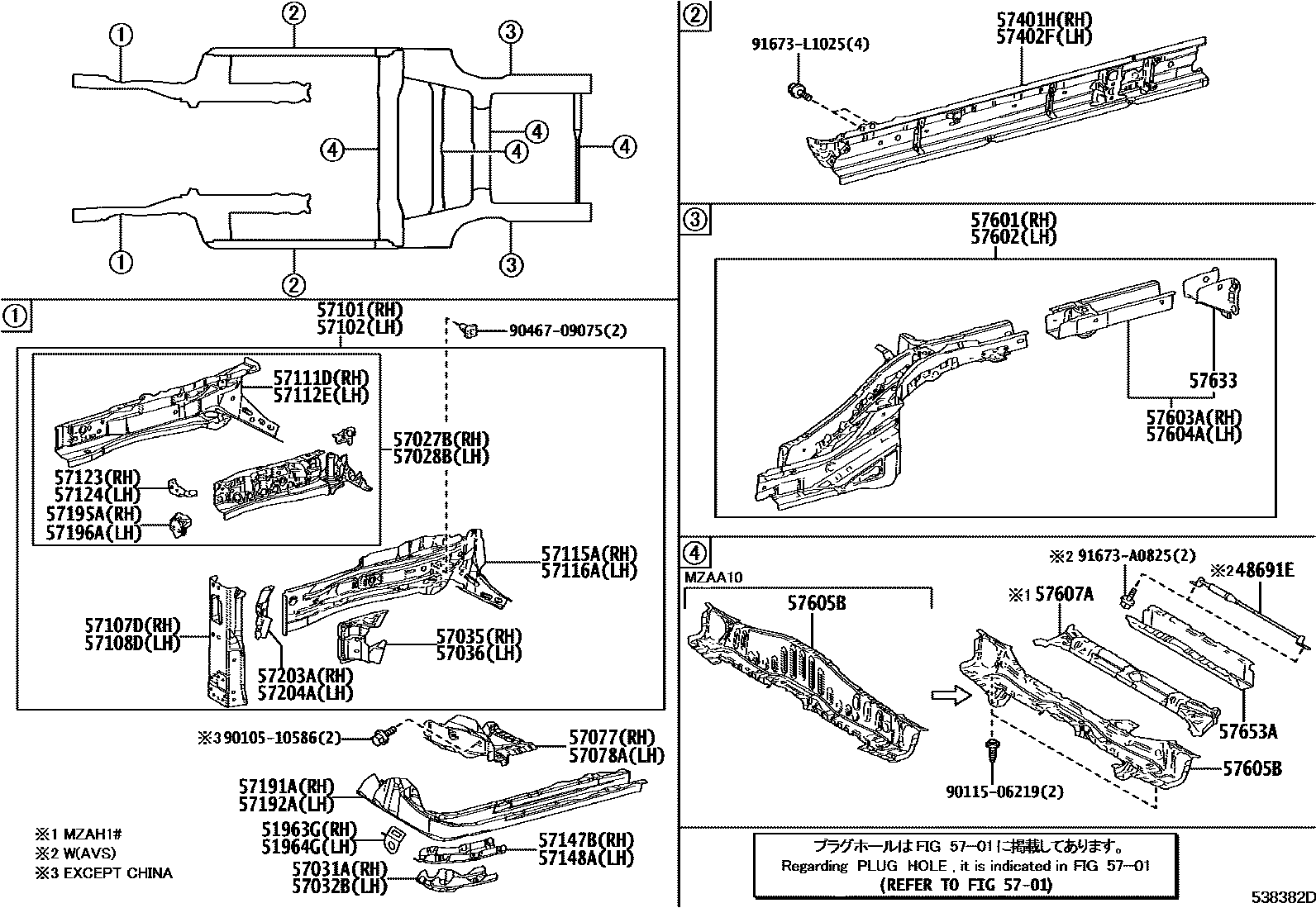

FLOOR SIDE MEMBER

0001 1 0002 1

48691EDAMPER, SUSPENSION TOWER

main48691-76050iKMA10202401-202512

51963GHOOK, TRANSPORT, FRONT RH

main51093-10020iKMA10202207-202401

51964GHOOK, TRANSPORT, FRONT LH

main51094-10010iKMA10202207-202401

5701

57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57027-47021iMZAA10,MZAH10,15202207

57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH

main57028-47040iMZAA10,MZAH10,15202207

57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57031-47010iMZAH11..CHI202401-202501

main57031-76010iKMA10202401-202512

57032BREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57032-47010iMZAA10,MZAH10,15202207

main57032-76010iKMA10202401-202512

57035PANEL SUB-ASSY, FRONT STEP, RH

main57035-47021iMZAH11,16..ARL,EUR,GCC,GEN202401

57036PANEL SUB-ASSY, FRONT STEP, LH

main57036-47031iKMA10202207-202401

57077BOX SUB-ASSY, TORQUE, FRONT RH

main57077-47041iKMA10202207-202401

57078ABOX SUB-ASSY, TORQUE, FRONT LH

main57078-47041iMZAA10,MZAH10,15202207

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-10910iKMA10202207-202401

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-10910iKMA10202207-202401

57107DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH

main57107-10020iKMA10202207-202401

57108DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH

main57108-10020iKMA10202207-202401

57111DMEMBER, FRONT SIDE, INNER RH

main57111-47030iKMA10202207-202401

57112EMEMBER, FRONT SIDE, INNER LH

main57112-47030iKMA10202207-202401

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-47901iKMA10202207-202401

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-47902iKMA10202207-202401

57123SUPPORT, FRONT SIDE MEMBER, RH

main57123-47020iMZAH11,16..ARL,EUR,GCC,GEN202401

57124SUPPORT, FRONT SIDE MEMBER, LH

main57124-47020iMZAA10,MZAH10,15202207

57147BPLATE, FRONT SIDE MEMBER, REAR RH

main57147-47010iMZAA10,MZAH10,15202207

57148APLATE, FRONT SIDE MEMBER, REAR LH

main57148-47010iMZAH11,16..ARL,EUR,GCC,GEN202401

57191AMEMBER, FRONT SIDE, INNER REAR RH

main57191-47031iMZAH11,16..ARL,EUR,GCC,GEN202401

main57191-76010iKMA10202401-202512

57192AMEMBER, FRONT SIDE, INNER REAR LH

main57192-47031iMZAH11..CHI202401-202501

main57192-76010iKMA10202401-202512

57195AREINFORCEMENT, FRONT SIDE MEMBER, FRONT RH

main57195-47010iKMA10202207-202401

57196AREINFORCEMENT, FRONT SIDE MEMBER, FRONT LH

main57196-47030iKMA10202207-202401

57203AEXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57203-47011iKMA10202207-202401

57204AEXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57204-47011iKMA10202207-202401

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-76011iMZAH11,16..ARL,EUR,GCC,GEN202401

main57401-76021iKMA10202303-202401

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-76021iMZAH11,16..ARL,EUR,GCC,GEN202401

main57402-76031iKMA10202303-202401

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-76900iMZAA10,MZAH10,15202207

main57601-76901iKMA10202303-202401

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-76900iMZAH11,16..ARL,EUR,GCC,GEN202401

main57602-76901iKMA10202401-202512

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-76010iMZAH11,16..ARL,EUR,GCC,GEN202401

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-76010iKMA10202207-202401

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-10071iMZAA10202207

main57605-47080iMZAH11,16..ARL,EUR,GCC,GEN202401

main57605-76020iKMA10202401-202512

57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-47020iMZAH11..CHI202401-202501

57633EXTENSION, REAR FLOOR SIDE MEMBER

main57633-76010×2iKMA10202207-202401

57653AMEMBER, REAR FLOOR CROSS, NO.2

main57653-47040iMZAA10,MZAH10,15202207

9010510586

main90105-10586

9011506219

main90115-06219

9046709075

main90467-09075

91673A0825

main91673-A0825

91673L1025

main91673-L1025

45 parts on this diagram · 2 diagrams in section
