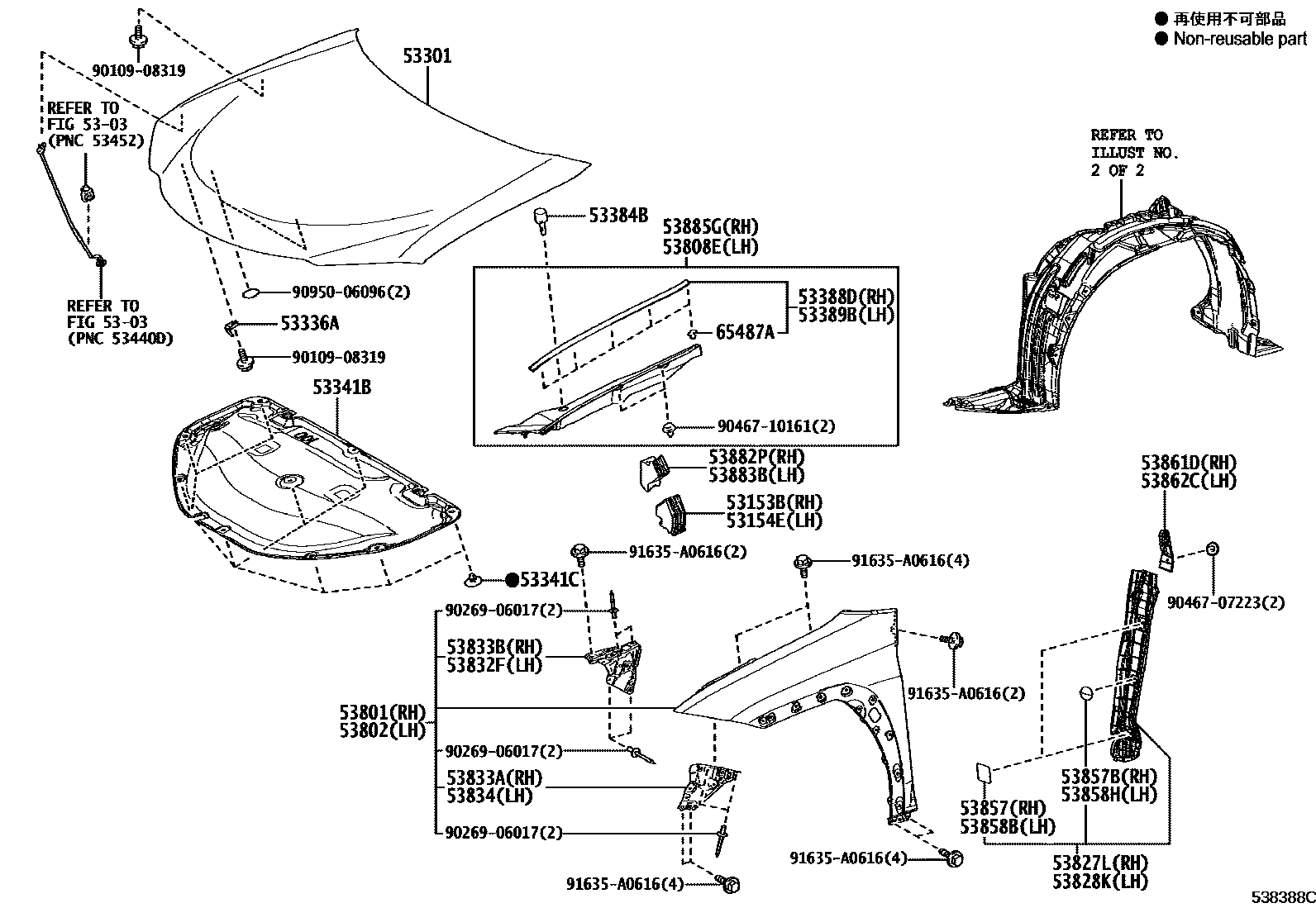

HOOD & FRONT FENDER
5303
53153BGUIDE, FRONT SIDE AIR
53154EGUIDE, FRONT SIDE AIR, NO.2
53301HOOD SUB-ASSY
53336ABRACKET, HOOD STAY
53341BINSULATOR, HOOD
53341CCLIP(FOR HOOD INSULATOR)
53384BCUSHION, HOOD, CENTER
53388DSEAL, HOOD TO FRONT FENDER, RH
53389BSEAL, HOOD TO FRONT FENDER, LH
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53808ESEAL SUB-ASSY, FENDER APRON MUDGUARD, LH
53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH
53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH
53832FPANEL, FRONT FENDER SIDE, LH
53833APANEL, FRONT FENDER SIDE, LOWER RH
53833BPANEL, FRONT FENDER SIDE, RH
53834PANEL, FRONT FENDER SIDE, LOWER LH
53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH
53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH
53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH
53858HRETAINER, FRONT WHEEL OPENING EXTENSION, LH
53861DSEAL, FRONT FENDER TO DOOR HINGE, UPPER RH
53862CSEAL, FRONT FENDER TO DOOR HINGE, UPPER LH
53882PSEAL, FRONT FENDER, RH
53883BSEAL, FRONT FENDER, LH
53885GSEAL SUB-ASSY, FENDER APRON MUDGUARD, RH
65487ACLIP, CORNER PROTECTOR
9010908319
9026906017
9046707223
9046710161
9095006096
91635A0616
35 parts on this diagram · 2 diagrams in section
