RADIATOR GRILLE
53101GRILLE SUB-ASSY, RADIATOR
PLATED
PLATED
NO PAINT REQ.
NO PAINT REQ.
PLATED,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)
PLATED,F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)&BACK MONITOR-WITH(GUIDE)
PLATED,F SPORT
PLATED,F SPORT&BACK MONITOR-WITH(GUIDE)
PLATED,F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)&BACK MONITOR-WITH(GUIDE)
PLATED, F SPORT(DESIGN)
PLATED,SOUTH AFRICA SPEC&F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE& *RCTB)&BACK MONITOR-WITH(GUIDE)
PLATED,RUSSIA SPEC
PLATED,RUSSIA SPEC&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)
PLATED,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(GUIDE)
PLATED, LUXURY PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(*PVM)
PLATED,DEST.PACKAGE (EXC/ERP.)-INDONESIA SPEC& LUXURY PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(*PVM)
PLATED,RUSSIA SPEC& LUXURY PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(*PVM)
PLATED,F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(*PVM)
PLATED,THAILAND SPEC&F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(*PVM)
PLATED,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(*PVM)
PLATED,DEST.PACKAGE (EXC/ERP.)-BAHRAIN, OMAN SPEC& PREMIUM PACKAGE&"GRACEFUL EXPLORER"*(G)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)&BACK MONITOR-WITH(GUID
PLATED,DEST.PACKAGE (EXC/ERP.)-BAHRAIN, OMAN SPEC& PREMIUM PACKAGE&"GRACEFUL EXPLORER"*(G)
PLATED, PREMIUM PACKAGE&"GRACEFUL EXPLORER"*(G)&BACK MONITOR-WITH(GUIDE)
PLATED, PREMIUM PACKAGE&"GRACEFUL EXPLORER"*(G)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)&BACK MONITOR-WITH(GUIDE)
NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)&BACK MONITOR-WITH(GUIDE)
NO PAINT REQ.,LUXURY PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(*PVM)
NO PAINT REQ.,DOMINICA SPEC&LUXURY PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(*PVM)
NO PAINT REQ.,F SPORT
NO PAINT REQ.,F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)&BACK MONITOR-WITH(GUIDE)
NO PAINT REQ.,F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(*PVM)
NO PAINT REQ.,F SPORT&BACK MONITOR-WITH(GUIDE)
NO PAINT REQ.,F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(GUIDE)
NO PAINT REQ.,F SPORT&OUTSIDE REAR VIEW MIRROR-*AREM&FRONT SEAT ADJUSTER-*DRP(8WAYPOWER) & *DRS(SEAT MEMORY)&AUDIO-EMV & 13SPEAKER
NO PAINT REQ., F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)&BACK MONITOR-WITH(GUIDE)
NO PAINT REQ.,PHILIPPINES SPEC&F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORTBRAKE & *RCTB)&BACK MONITOR-WITH(*PVM)
NO PAINT REQ., PREMIUM PACKAGE
NO PAINT REQ.,LUXURY PACKAGE&HANDS FREE POWER BACK DOOR-WITH&AUDIO-EMV & 13SPEAKER&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)
53114AGRILLE, RADIATOR, INNER
F SPORT&FRONT SEAT ADJUSTER-*DRP(8WAY POWER)
53122AMOULDING, RADIATOR GRILLE, LOWER
RUSSIA SPEC& LUXURY PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(*PVM)
DEST.PACKAGE (EXC/ERP.)-INDONESIA SPEC&F SPORT&CLEARANCE & BACK SONAR-WITH(PARKINGSUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(*PVM)
53123ACUSHION, RADIATOR GRILLE
RUSSIA SPEC& LUXURY PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(*PVM)
53145GCLIP, RADIATOR GRILLE
53395JSEAL, HOOD TO FRONT END PANEL
7501
8408
8417
8606
9016740057
main90167-40057
9016750063
main90167-50063
9046708229
main90467-08229

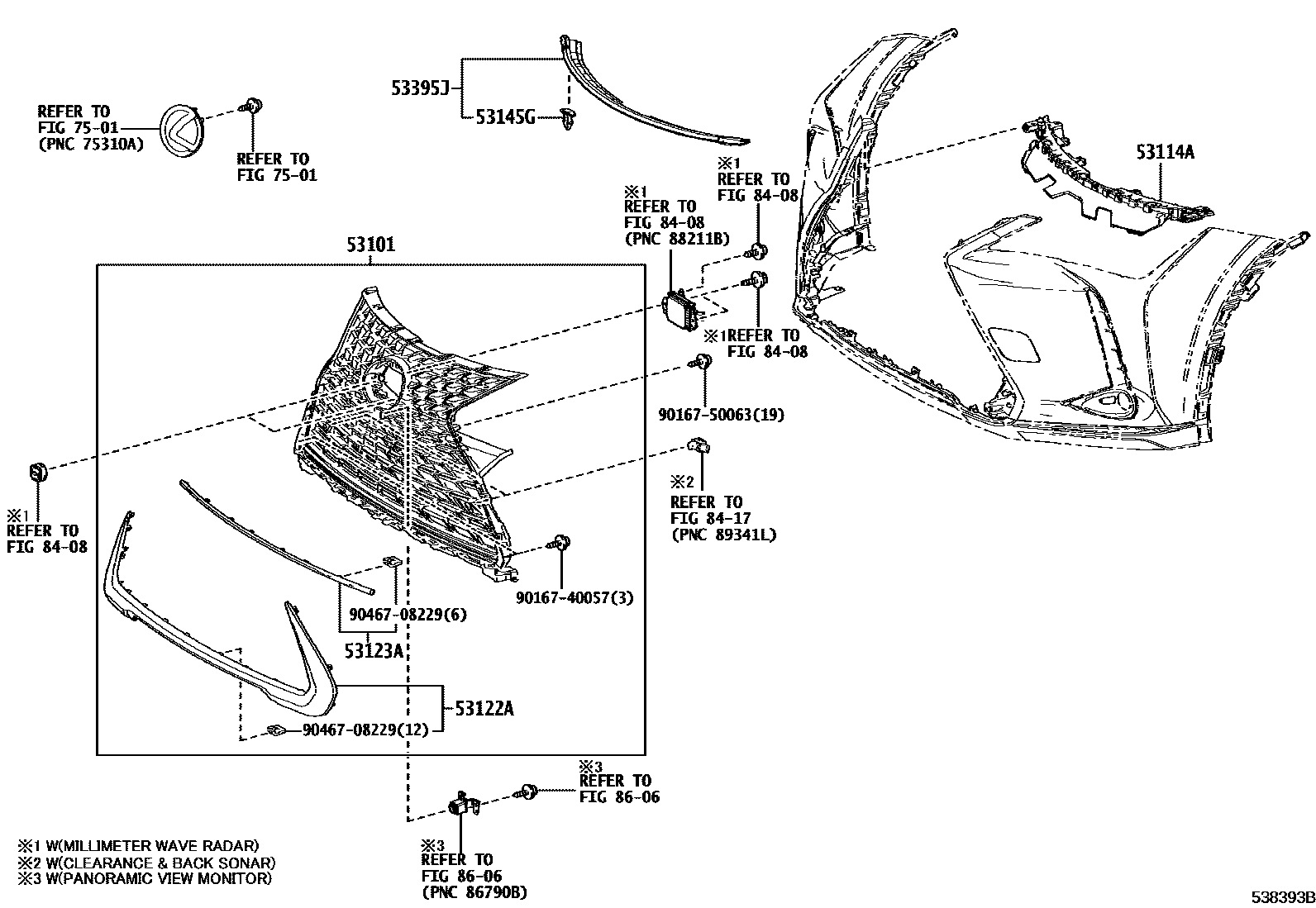

13 parts on this diagram · 3 diagrams in section
