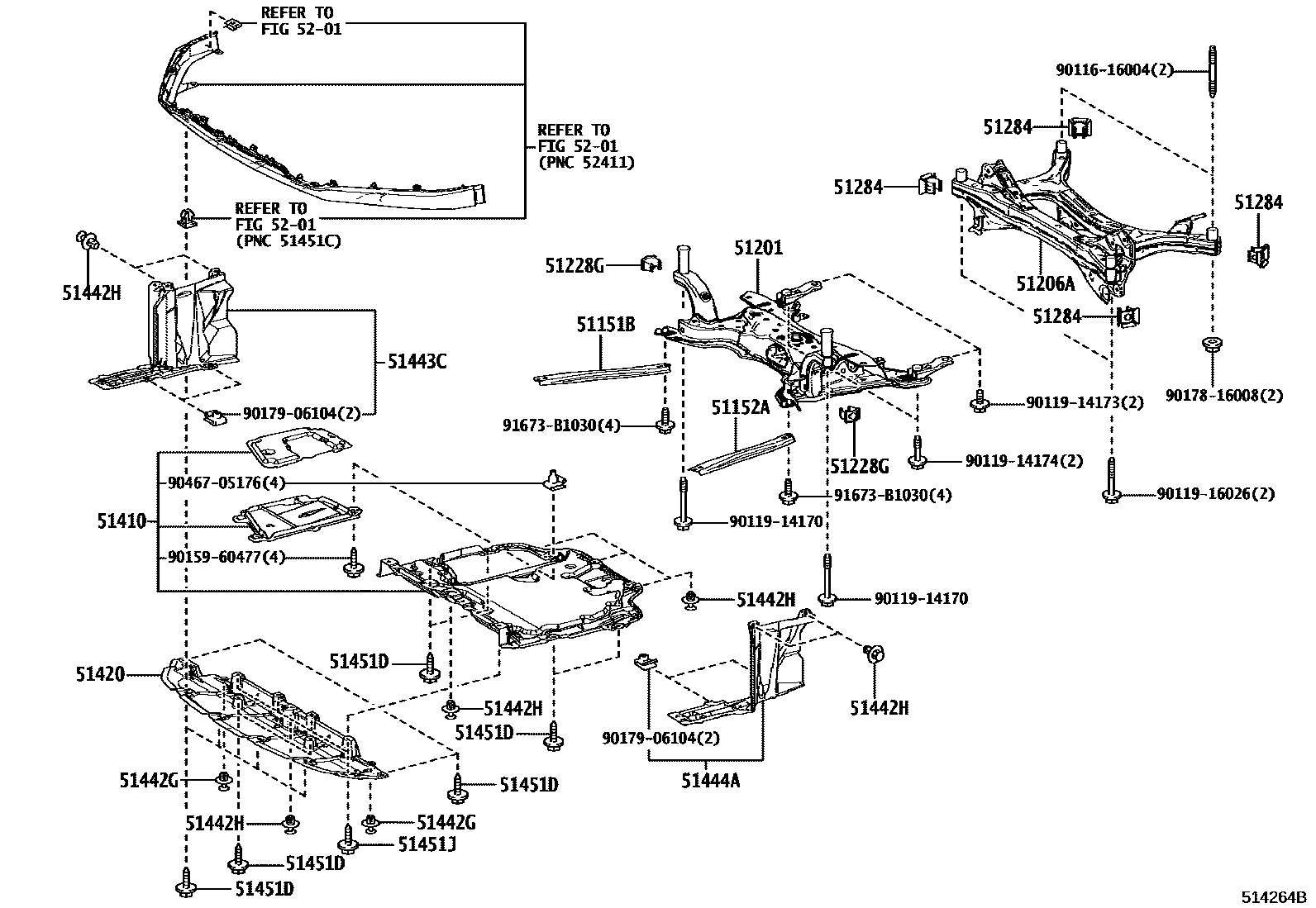

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1 0003 1

51151BREINFORCEMENT, SIDE RAIL, NO.1 RH

main51151-10010iMZAH11..CHI¥2,650202207-202512

51152AREINFORCEMENT, SIDE RAIL, NO.1 LH

main51151-10010iMZAA10,MZAH10,15¥2,650202207-202512

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-76032iMZAH11,16..ARL,EUR,GCC,GEN¥54,000202207-202501

main51201-76050iKMA10¥70,700202303-202512

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-76010iMZAA10,MZAH10¥52,800202207-202208

sub51206-76011¥48,000

main51206-76011iMZAH11..ARL,EUR,GCC,GEN¥48,000202208-202501

main51206-76021iMZAH15¥57,600202207-202208

sub51206-76022¥57,600

main51206-76022iMZAH15¥57,600202208

main51206-76031iKMA10¥61,000202303-202512

main51206-76040iMZAH16¥64,300202401

51228GPLATE, FRONT SUSPENSION MEMBER

main51228-47010iKMA10¥220202207-202512

51284COVER, REAR SUSPENSION MEMBER HOLE

main51284-47010iMZAA10,MZAH1#¥340202207-202208

51410COVER ASSY, ENGINE UNDER, NO.1

main51410-76100iMZAA10,MZAH10,15¥12,900202207-202501

51420COVER ASSY, ENGINE UNDER, NO.2

main51420-76010iMZAH11,16..ARL,EUR,GCC,GEN¥8,900202207-202501

51442GCLIP, ENGINE UNDER COVER, NO.1

main90467-07214iMZAA10,MZAH10,15¥70202207-202501

51442HCLIP, ENGINE UNDER COVER, NO.2

main90467-07220iMZAA10,MZAH10,15¥80202207-202501

51443CCOVER, ENGINE UNDER, REAR RH

main51443-10020iMZAA10,MZAH10,15¥3,160202207-202501

51444ACOVER, ENGINE UNDER, REAR LH

main51444-10020iMZAA10,MZAH10,15¥3,160202207-202501

51451DSCREW, NO.1

main90159-60477iMZAA10,MZAH10,15¥70202207-202512

51451JBOLT, NO.1

main90119-06A13iKMA10¥60202207-202512

5201

9011616004

main90116-16004¥610

9011914170

main90119-14170¥490

9011914173

main90119-14173¥310

9011914174

main90119-14174¥360

9011916026

main90119-16026¥610

9015960477

main90159-60477¥70

9017816008

main90178-16008¥190

9017906104

main90179-06104¥70

9046705176

main90467-05176¥100

91673B1030

main91673-B1030¥120

25 parts on this diagram · 3 diagrams in section
