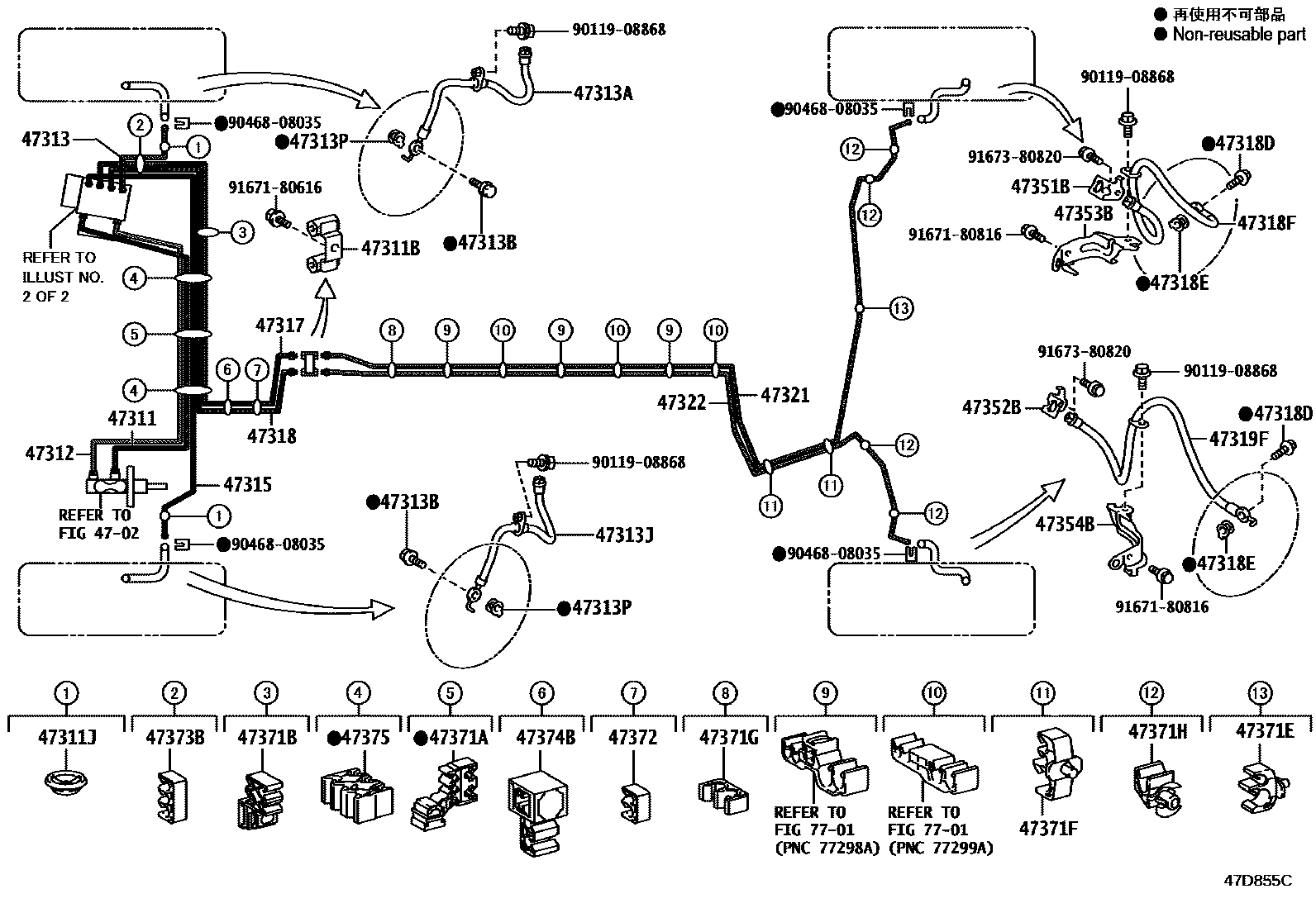

BRAKE TUBE & CLAMP

0001 1BRAKE TUBE 0002 1BRAKE TUBE 0003 1BRAKE TUBE 0004 1BRAKE TUBE 0005 1BRAKE TUBE 0006 1BRAKE TUBE 0007 1BRAKE TUBE 0008 1BRAKE TUBE 0009 1BRAKE TUBE 0010 1BRAKE TUBE 0011 1BRAKE ACTUATOR 0012 1BRAKE ACTUATOR 0013 1BRAKE ACTUATOR 0015 1BRAKE ACTUATOR 0017 1BRAKE ACTUATOR 0018 1BRAKE ACTUATOR

4702

47311TUBE, FRONT BRAKE, NO.1

main47311-12D00iKMA10..LHD202207-202401

main47311-47110iKMA10..LHD202401-202512

main47311-47120iMZAH11,16..RHD202401-202512

main47311-76030iMZAA10..RHD202207

main47311-76040iMZAA10..LHD202207

main47311-76080iMZAH10,15..RHD202207-202401

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10285iMZAA10,MZAH10,15202207-202512

47311JGROMMET, NO.1(FOR FRONT BRAKE TUBE)

main90480-25037iMZAA10,MZAH10,15202207-202512

47312TUBE, FRONT BRAKE, NO.2

main47312-12830iMZAH10,15..LHD202207-202401

main47312-47090iMZAH11,16..LHD..(EUR,GCC,GEN)202401-202512

main47312-47100iKMA10..RHD202401-202512

main47312-76010iMZAA10..RHD202207

main47312-76020iMZAA10..LHD202207

main47312-76060iMZAH10,15..RHD202207-202401

47313TUBE, FRONT BRAKE, NO.3

main47313-12A40iMZAA10..LHD202207

main47313-12A80iMZAH10,15..LHD202207-202401

main47313-47090iKMA10..LHD202401-202512

main47313-76050iMZAA10..RHD202207

main47313-76070iMZAH10,15..RHD202207-202401

main47313-76080iKMA10..RHD202401-202512

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02H46iMZAA10,MZAH1#202207-202210

sub90947-02K97

main90947-02K97iKMA10202211-202512

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058iKMA10202207-202512

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02H47iMZAA10,MZAH1#202207-202210

sub90947-02K98

main90947-02K98iKMA10202211-202512

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50021iKMA10202207-202512

47315TUBE, FRONT BRAKE, NO.5

main47315-12630iMZAA10..LHD202207

main47315-12650iMZAA10..RHD202207

main47315-12660iMZAH10,15..RHD202207-202401

main47315-12670iKMA10..LHD202207-202401

main47315-47080iMZAH11..CHI202401-202512

main47315-47090iMZAH11,16..RHD202401-202512

47317TUBE, FRONT BRAKE, NO.7

main47317-12610iMZAA10..LHD202207

main47317-12630iMZAA10..RHD202207

main47317-12640iKMA10..RHD202207-202401

main47317-12650iMZAH10,15..LHD202207-202401

main47317-47080iMZAH11,16..LHD..(EUR,GCC,GEN)202401-202512

main47317-47090iMZAH11,16..RHD202401-202512

47318TUBE, FRONT BRAKE, NO.8

main47318-12750iMZAA10..LHD202207

main47318-12760iMZAA10..RHD202207

main47318-12770iMZAH10,15..RHD202207-202401

main47318-12780iKMA10..LHD202207-202401

main47318-47070iMZAH11..CHI202401-202512

main47318-47080iMZAH11,16..RHD202401-202512

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058iKMA10202207-202512

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50021iKMA10202207-202512

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02H69iMZAH11,16..ARL,EUR,GCC,GEN202207-202501

main90947-02J43iKMA10202303-202512

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02H70iMZAH11..CHI202207-202501

main90947-02J44iKMA10202303-202512

47321TUBE, REAR BRAKE, NO.1

main47321-12410iMZAA10,MZAH10,15202207-202501

main47321-76030iKMA10202303-202512

47322TUBE, REAR BRAKE, NO.2

main47322-12570iMZAA10,MZAH10,15202207-202501

main47322-76050iKMA10202303-202512

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47351-47030iMZAA10,MZAH10,15202207-202512

47352BBRACKET, FLEXIBLE HOSE, NO.2

main47352-47030iKMA10202207-202512

47353BBRACKET, FLEXIBLE HOSE, NO.3

main47351-10110iKMA10202207-202512

47354BBRACKET, FLEXIBLE HOSE, NO.4

main47352-10060iMZAA10,MZAH10,15202207-202512

47371ACLAMP, BRAKE TUBE, NO.1

main47371-33380iKMA10..RHD202207-202401

main47371-76010iMZAA10..RHD202207

main47371-76020iMZAA10..LHD202207

main90949-01D91iMZAH11..CHI202401-202512

47371BCLAMP, BRAKE TUBE, NO.6

main90949-01E10iKMA10..LHD202207-202401

main90949-01E51iMZAA10..LHD202207

main90949-01E69iMZAH10,15..RHD202207

47371ECLAMP, BRAKE TUBE, NO.9

main77285-12170iMZAH11,16..ARL,EUR,GCC,GEN202207-202501

47371FCLAMP, BRAKE TUBE, NO.10

main47371-76030iKMA10202303-202512

main77286-12230iMZAA10,MZAH10,15202207

main77286-47050iMZAH11..CHI202401-202501

47371GCLAMP, BRAKE TUBE, NO.11

main90464-00904iKMA10202207-202512

47371HCLAMP, BRAKE TUBE, NO.12

main90949-01E10iKMA10202207-202512

47372CLAMP, BRAKE TUBE, NO.2

main47371-76040iKMA10..LHD202207-202401

main90949-01D91iMZAA10..LHD202207

main90949-01E34iMZAA10,MZAH10,15..RHD202207-202401

main90949-01E40iKMA10..LHD202401-202512

47373BCLAMP, BRAKE TUBE, NO.3

main47371-76060iKMA10..RHD202207-202401

main90949-01D91iMZAH10,15..LHD202207-202401

main90949-01D92iKMA10..LHD202207-202512

main90949-01E43iKMA10..RHD202207-202512

47374BCLAMP, BRAKE TUBE, NO.4

main90949-01D91iKMA10..RHD202207-202401

main90949-01E33iKMA10..LHD202207-202401

main90949-01E44iMZAA10202207

main90949-01E79iKMA10..RHD202401-202512

47375CLAMP, BRAKE TUBE, NO.5

main90949-01D92iKMA10..RHD202207-202401

main90949-01E33iMZAA10..LHD202207

main90949-01E51iKMA10..LHD202207-202401

7701

9011908868

main90119-08868

9046808035

main90468-08035

9167180616

main91671-80616

9167180816

main91671-80816

9167380820

main91673-80820

39 parts on this diagram · 16 diagrams in section
