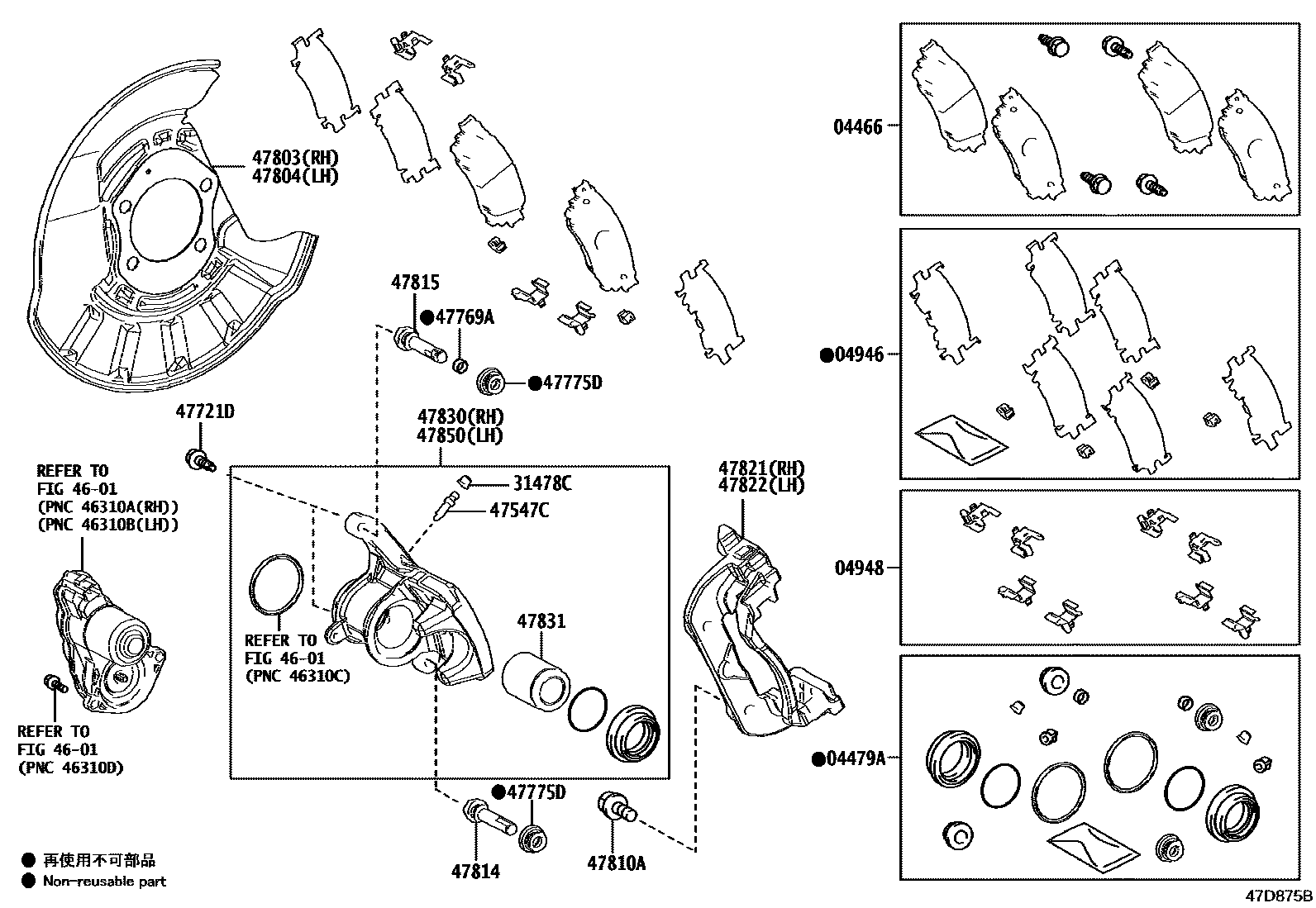

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04466PAD KIT, DISC BRAKE, REAR

main04466-30410iKMA10¥6,600202403-202512

MARK NBK D6363-FF N

main04466-33230iMZAH11,16¥6,100202207

MARK AK NS554

main04466-F4020iKMA10¥6,600202303-202402

MARK NBK D6361

sub04466-30410¥6,600

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-33390iMZAH11..CHI¥2,200202207-202501

main04479-42110iKMA10¥2,200202303-202512

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-30280iKMA10¥1,780202403-202512

main04946-33090iMZAA10,MZAH10,15¥1,550202207-202501

main04946-F4020iKMA10¥1,780202303-202402

04948FITTING KIT, DISC BRAKE, REAR

main04948-12070iKMA10¥1,730202303-202402

main04948-33060iMZAA10,MZAH10,15¥1,730202207-202501

main04948-V2010iKMA10¥1,040202403-202512

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iKMA10¥160202207-202401

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iKMA10¥200202207-202512

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90015-AA603iKMA10¥270202207-202512

*8-1.00PX23-12.5

sub90016-AA614¥270

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-50010iKMA10¥50202207-202512

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-33270iKMA10¥70202207-202512

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47803-33010iMZAH11..CHI¥1,240202207-202501

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47804-33010iMZAH11..CHI¥1,240202207-202501

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12208iMZAH11,16..ARL,EUR,GCC,GEN¥160202207-202501

main90105-14212iKMA10¥190202303-202512

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-78010iKMA10¥510202207-202512

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-78010iKMA10¥510202207-202512

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-10030iMZAA10,MZAH10,15¥4,380202207-202501

main47821-42110iKMA10¥4,780202303-202512

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-10030iMZAH11,16..ARL,EUR,GCC,GEN¥4,380202207-202501

main47822-42100iKMA10¥4,780202303-202512

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-33270iMZAH11..CHI¥26,100202207-202501

main47830-42100iKMA10¥26,100202303-202512

47831PISTON, REAR DISC BRAKE

main47831-58040iKMA10¥1,060202303-202512

main47831-78010iMZAH11,16..ARL,EUR,GCC,GEN¥1,060202207-202501

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-33270iMZAA10,MZAH10,15¥26,100202207-202501

main47850-42090iKMA10¥26,100202303-202512

20 parts on this diagram · 2 diagrams in section
