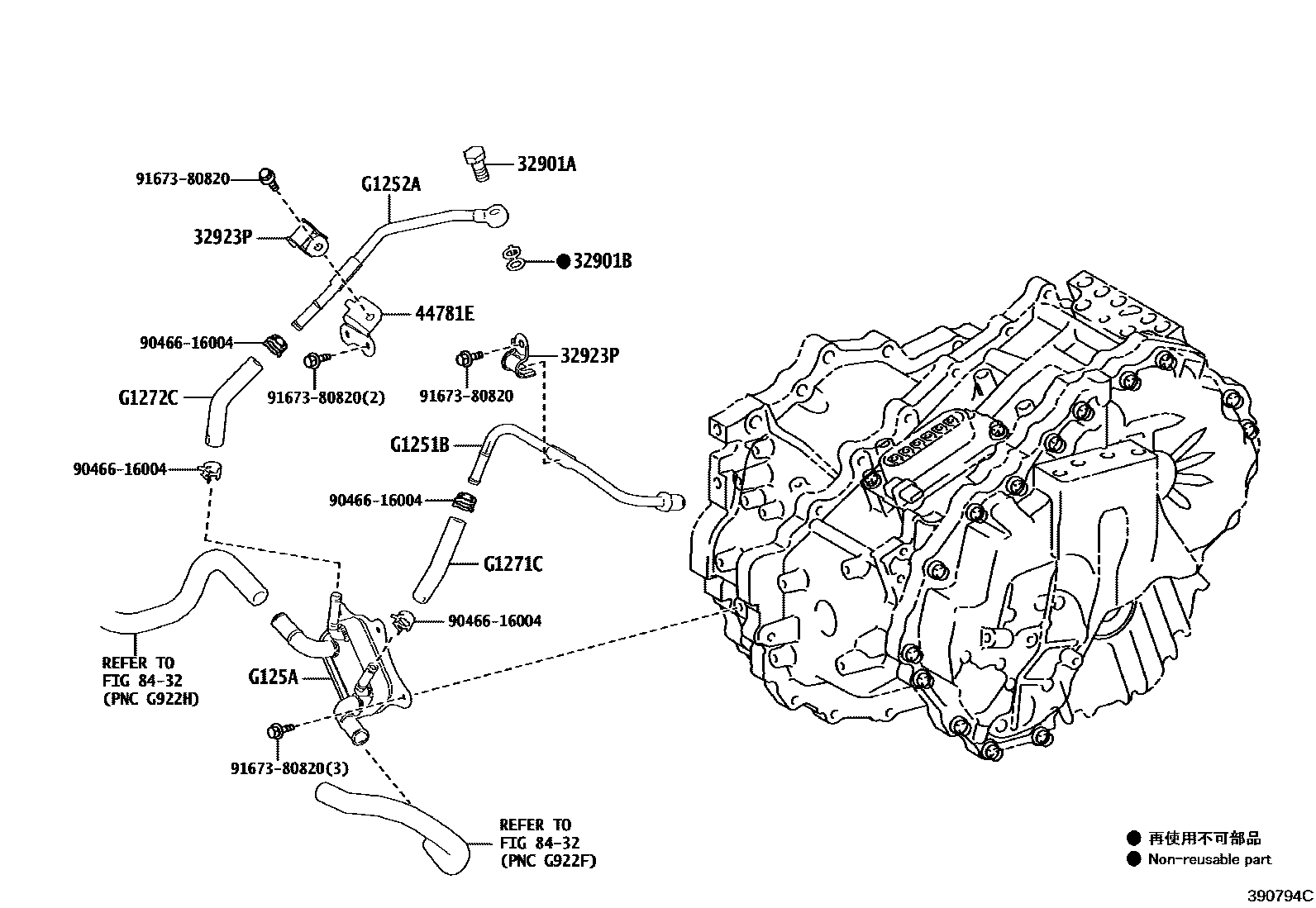

OIL COOLER & TUBE (HEV OR BEV OR FCEV)

32901ABOLT, UNION(FOR OIL COOLER)

main90401-12039iMZAH10,15¥390202207

32901BGASKET(FOR OIL COOLER UNION)

main90430-12037iMZAH10,15¥80202207

32923PCLAMP, OIL COOLER TUBE, NO.1

main32923-52040iMZAH10,15¥200202207

44781EBRACKET, HOSE

main44781-12070iMZAH10,15¥320202207

8432

G1251BPIPE, MOTOR COOLING, NO.1

mainG125112010iMZAH10,15202207

G1252APIPE, MOTOR COOLING, NO.2

mainG125212010iMZAH10,15202207

G125ACOOLER, MOTOR COOLING

mainG125A12010iMZAH10,15202207

G1271CHOSE, MOTOR COOLING, NO.1

mainG127112010iMZAH10,15202207

G1272CHOSE, MOTOR COOLING, NO.2

mainG127212010iMZAH10,15202207

9046616004

main90466-16004¥180

9167380820

main91673-80820¥80

12 parts on this diagram · 1 diagram in section
